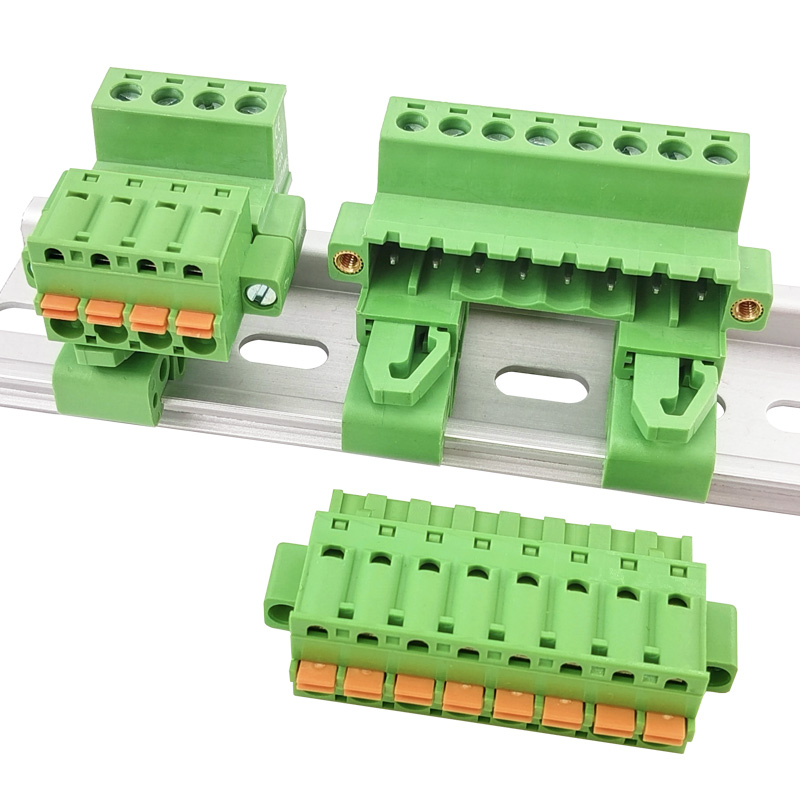

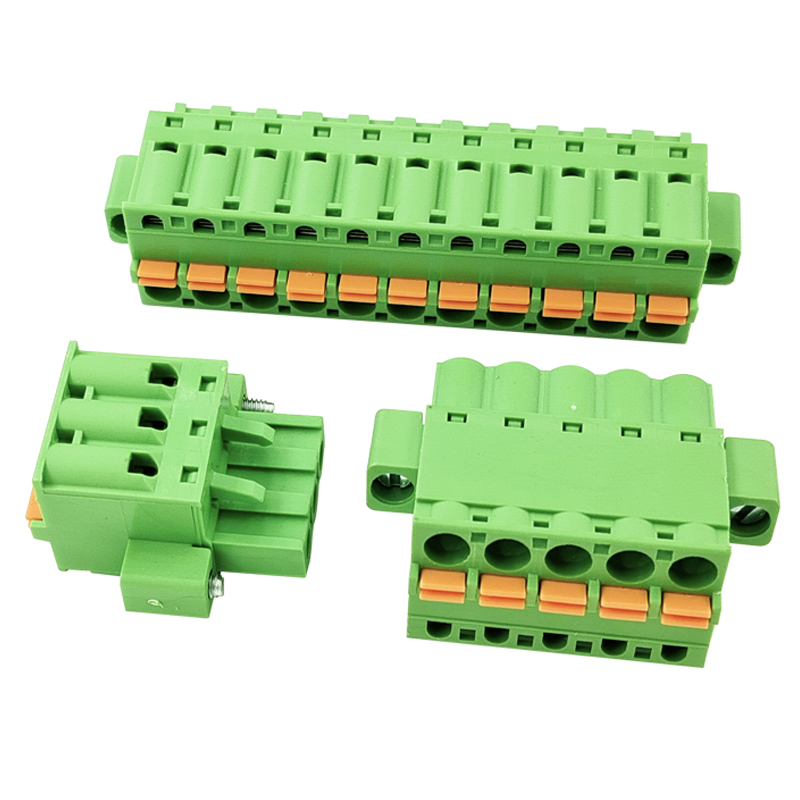

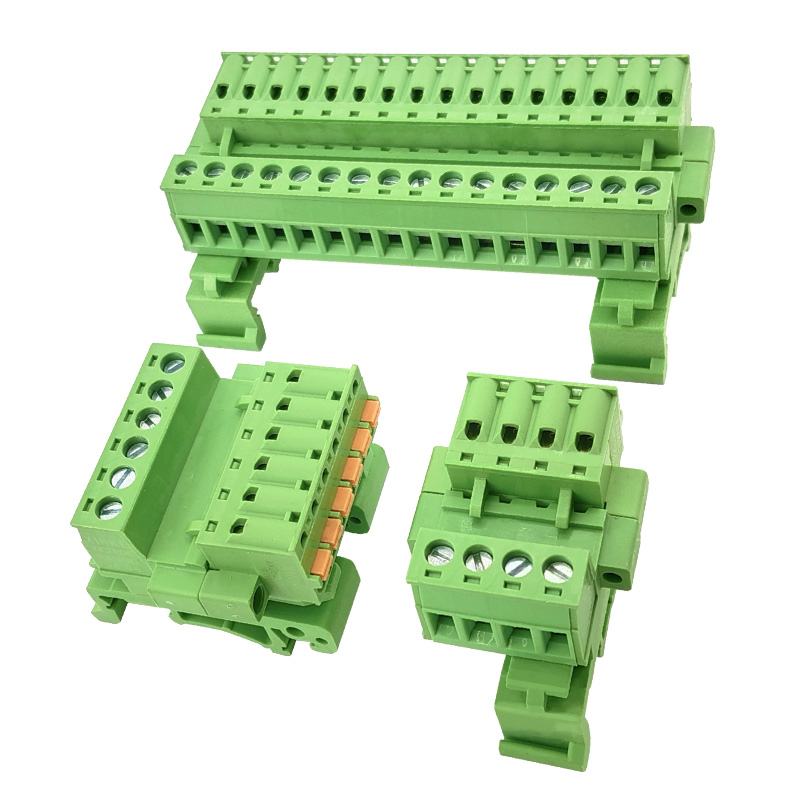

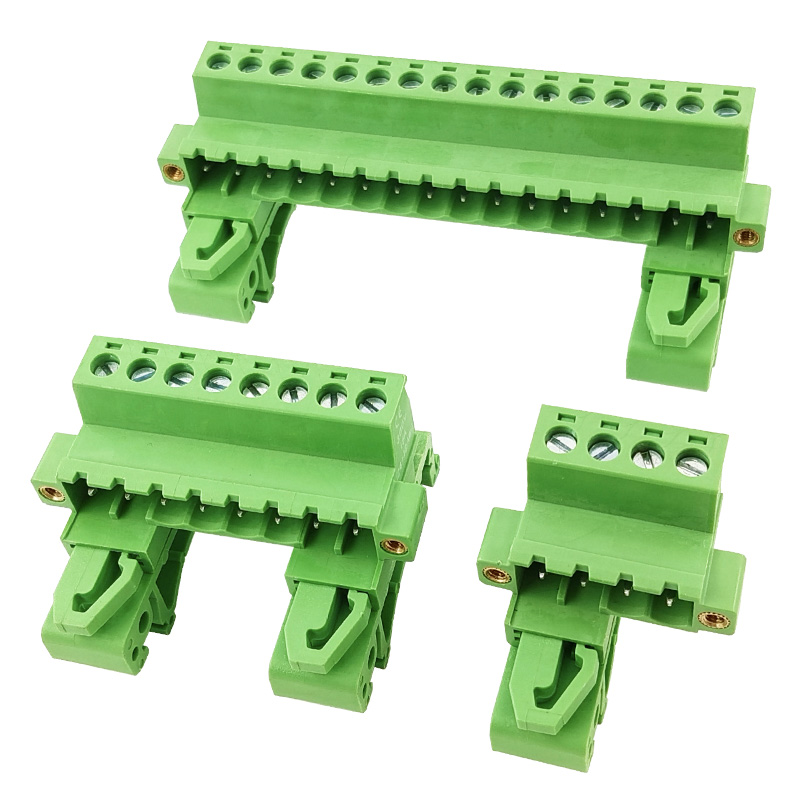

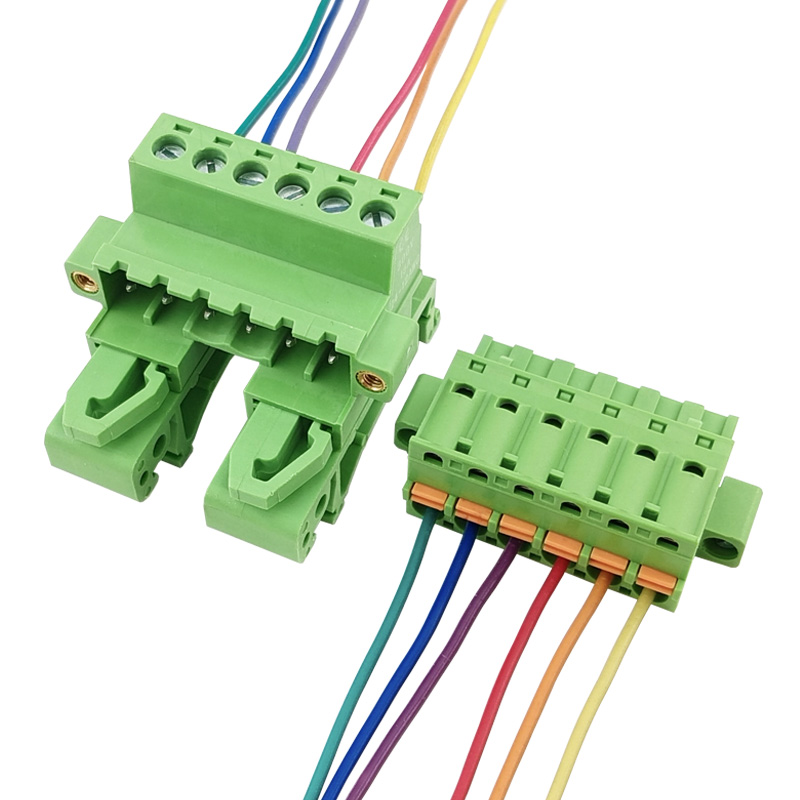

5.08mm Pitch Complete Male Screw & Female Spring DIN Rail Mount Solderless Terminal Block Set with Flange for 35mm DIN Rail

XK2EDRKUM+KDM-5.08MM Wire range:24-12AWG(2.5MM²) 5.08mm Pitch Complete Male Screw & Female Spring DIN Rail Mount Solderless Terminal Block Set with Flange for 35mm DIN Rail Environmental certification Insulating flame retardant Quality assurance   Basic Product Information Rated voltage 300V Rated current 10A Withstanding voltage 1600V/1Mi-n Wire range 24-12AWG(2.5MM²) Rated impulse voltage 4.0KV Temp range -40℃~+105℃ Screw strip length 7-8MM Spring strip length 10-11MM Screw/Torque M2.5/0.4N.M Housing PA66.UL94V-0 Contact Phosphor Bronze,Ni plated Wire cage Brass, Ni plated Reed Stainless steel Screw 2.5,Steel,Zinc plated Pin header Brass , Tin plated Pitch 5.08MM Poles 2-24P Product Drawings Genuine Material Packaging & Shipping The package of  XINKE has the  the unity of inner and outer packing. Also special cartons can be made for the customer if have any requirements. Manufactory Profile Ten years casting exper…

Pin Header Din Rail Terminal Block Spring Terminal Block PCB Pluggable Terminal Block Screw Terminal Block
