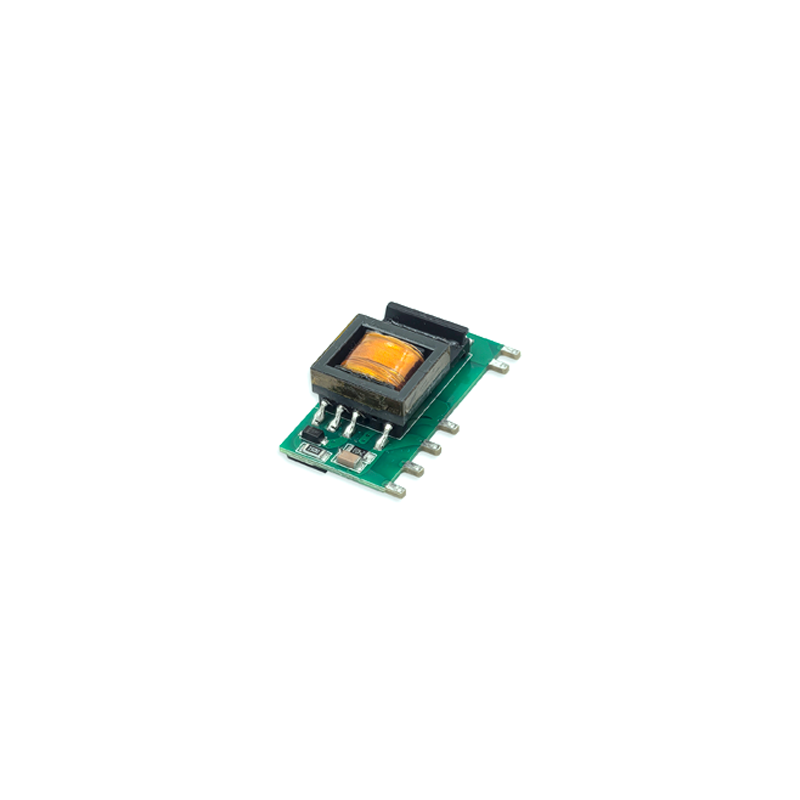

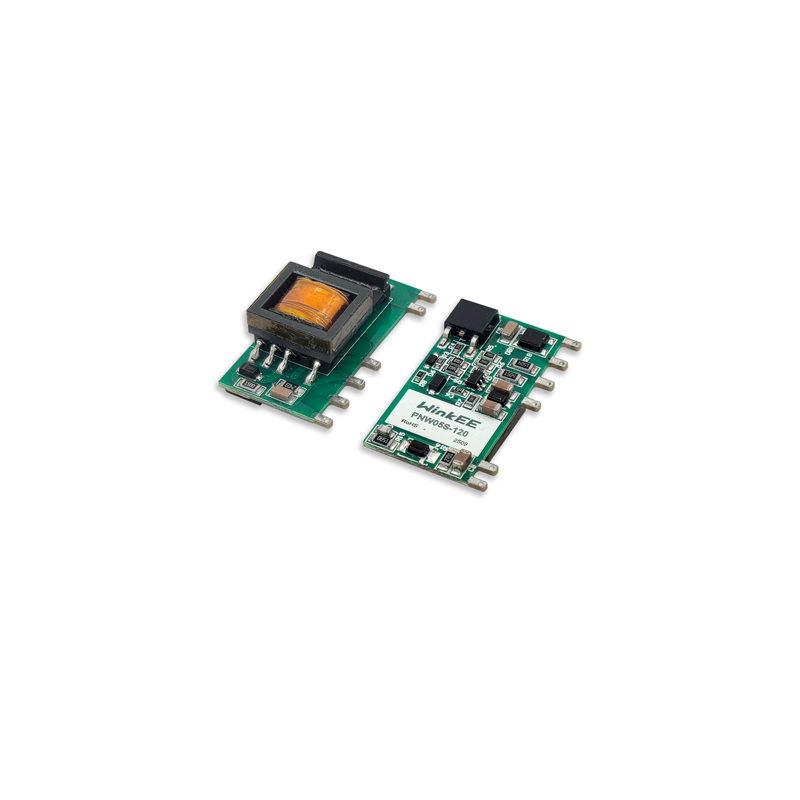

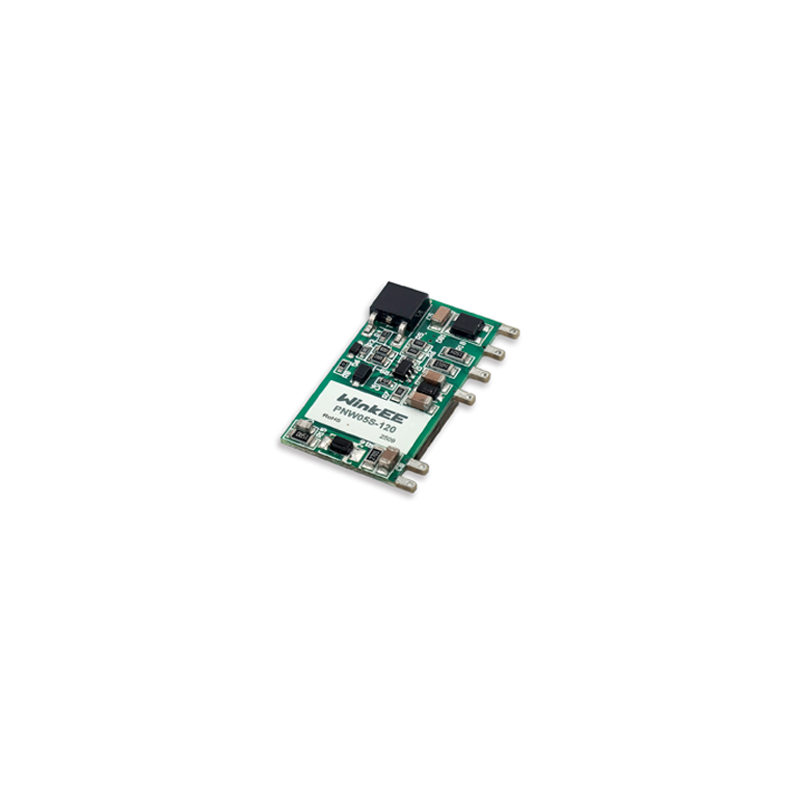

5w open frame AC-DC power converter

The PNW05S 5W open frame AC-DC power converter is a compact and reliable solution designed to deliver efficient power conversion across a wide range of applications. With a global input range of 90–528VAC and 100–745VDC, it ensures stable operation even in demanding electrical environments. The output voltage is selectable from 3.3V to 24V, supporting current levels between 210mA and 1000mA, making it suitable for low-power embedded electronics, industrial monitoring devices, and communication modules. Its DIP package with a size of 33.5 × 13 × 17.2mm provides ease of integration into space-constrained systems while meeting multiple international certifications including UL, CB, CE, and UKCA. Model Number PNW05S Power 5W Input Voltage（VAC） 90~528VAC Input Voltage（VDC） 100~745VDC Output Voltage（VDC） 3.3-24V Output Current（mA） 210mA-1000mA Package DIP Size 33.5x13x17.2mm Certification UL、CB、CE、UKCA As an open frame 5w ac dc power supply, the PNW05S b…
