650kg Glass Lifter | Glassboy 8D Glass Vacuum Lifter | Cowest

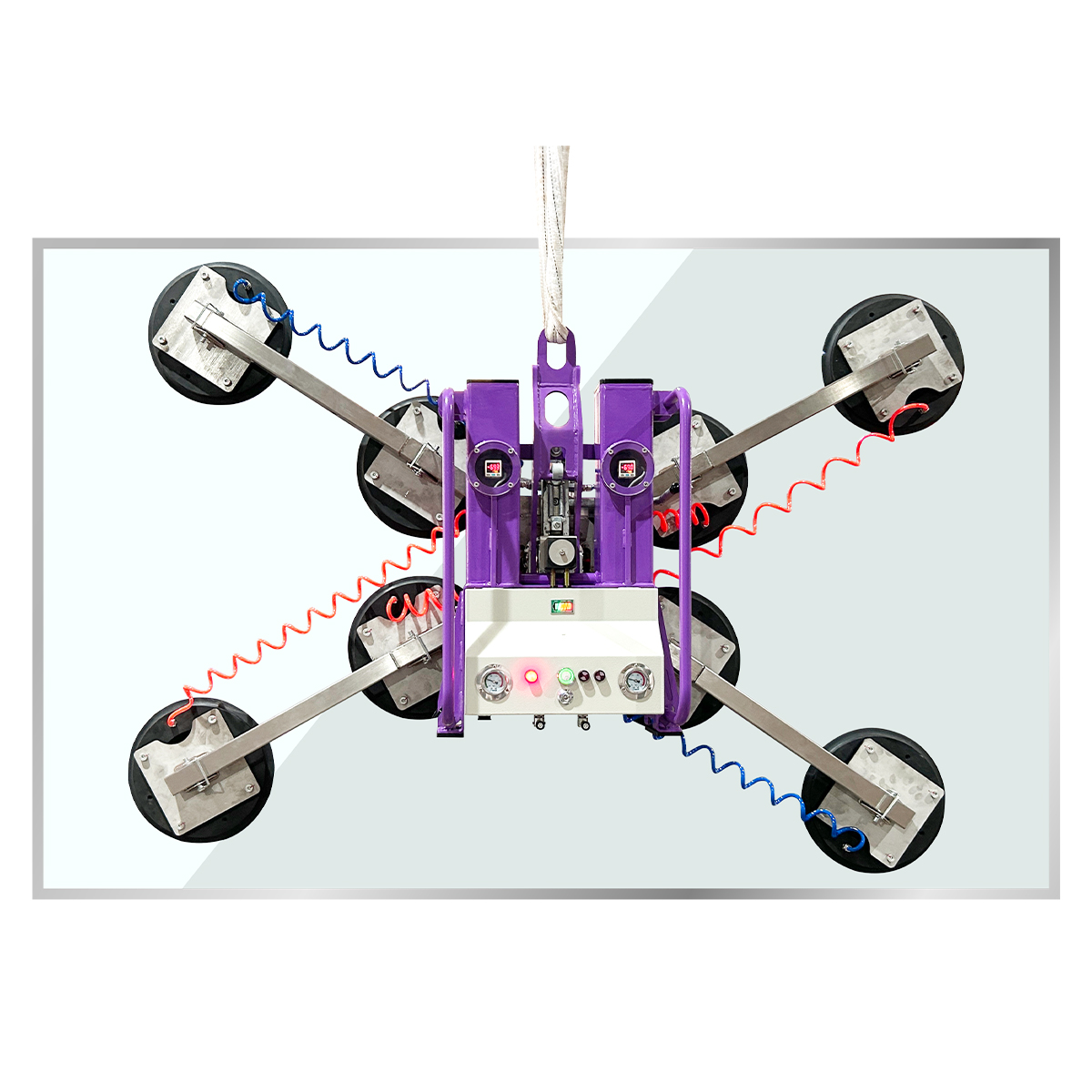

1.Product Overview The Glassboy 8D is the largest head in the Glassboy crane-mounted glass vacuum lifter range, rated 650kg on eight Dia.290mm round suction cups. It is built for the job the smaller models in the range cannot take: a single very heavy panel, or a small batch of panels handled at once. The frame measures 1683 x 1171 x 292mm and weighs 75kg, the head rotates 360° and tilts 0°-90° by hand, and it hangs from an overhead crane, a jib crane or a monorail hoist. An optional dual vacuum circuit means a single leak does not drop the load, and the IP43 stainless steel control box is built for outdoor site work.     2. Product Features 650kg rated capacity on eight Dia.290mm round suction cups — the maximum load in the Glassboy range, for a single very heavy panel or a small batch Manual 360° rotation and 0°-90° tilting, so the operator sets the installation angle without a powered head Dual pump and dual vacuum circuit available as an option: with it fitted, a leak in one circ…
