8 channel digital input 2 channel digital output

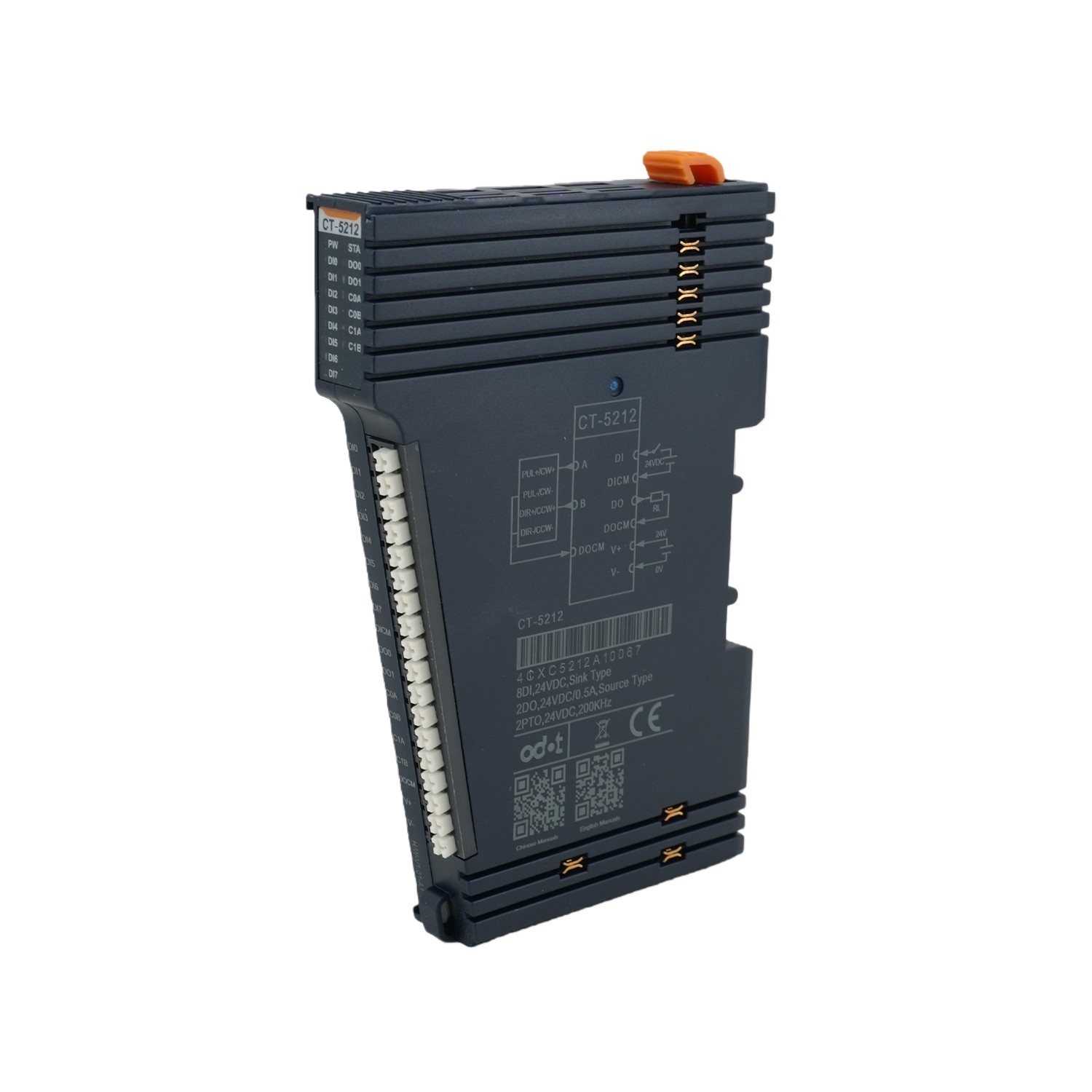

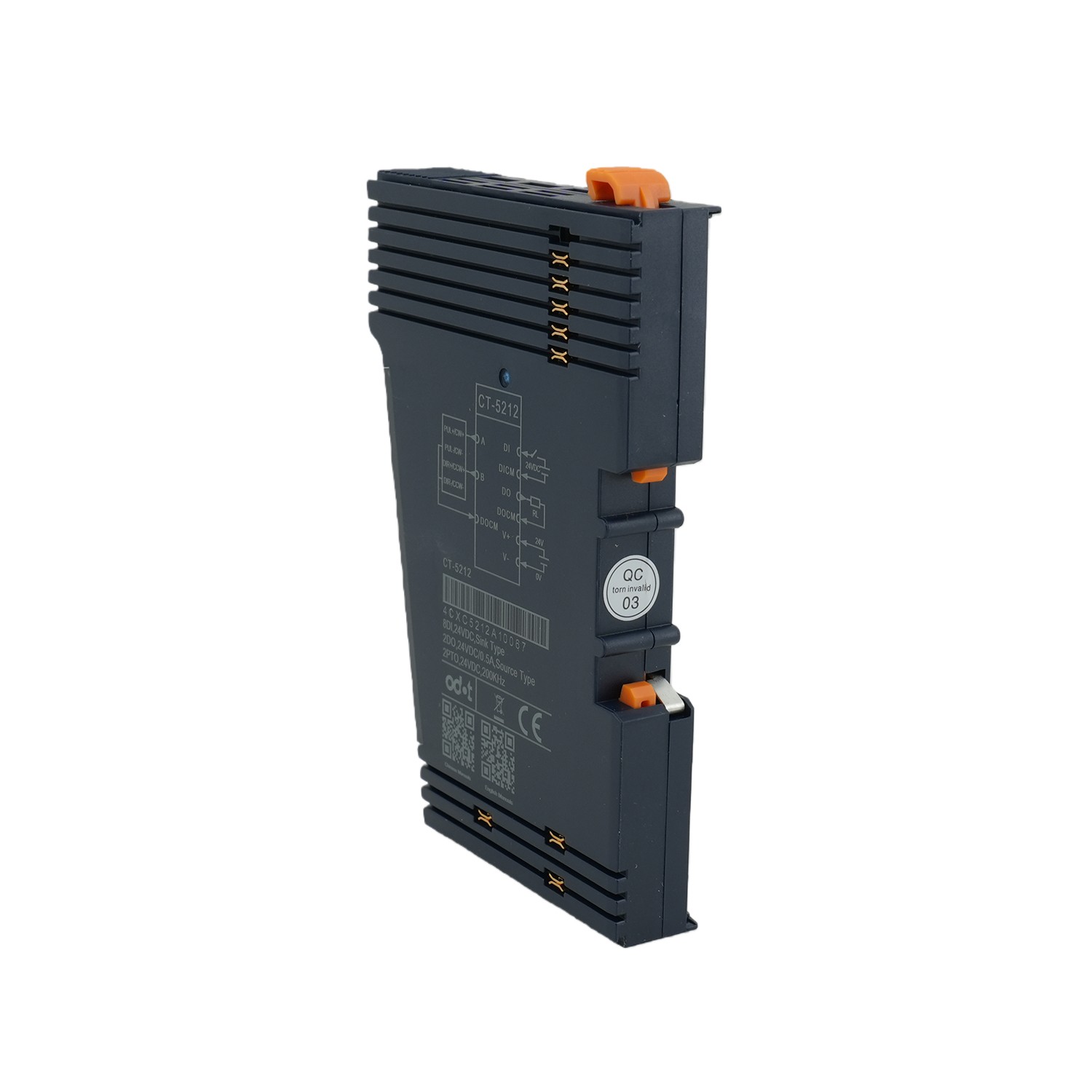

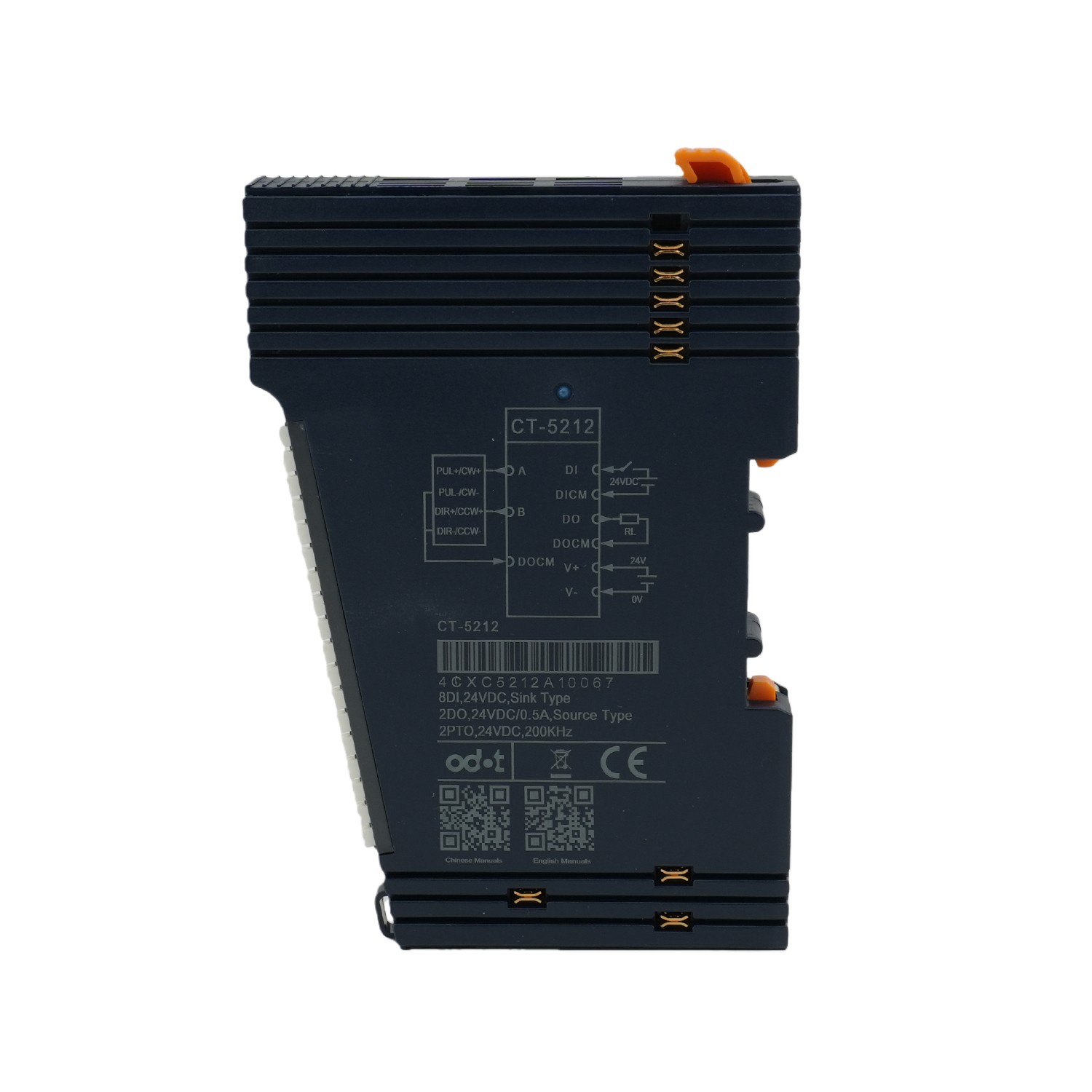

8-channel digital input &2-channel digital output &2-channel pulse output Module features The CT-5212 is a compact multifunction I/O module from Sichuan Odot Automation, integrating 8 PNP digital inputs, 2 digital outputs, and 2 independent pulse outputs—ideal for sensor monitoring, load driving, and stepper/counting control in small systems. Technical parameters General parameter Field Power Supply：19.2～28.8VDC（Nominal: 24VDC）  Protection: Anti-reverse connection protection Power Max.132mA @ 5.0VDC Isolation The isolation voltage between field power and system power is AC500V The isolation voltage between I/O channel and system power is AC500V The isolation voltage between I/O channel and PE is AC500V Wiring Max.: AWG 18      Min.: AWG 24 Mounting Type 35mm DIN-Rail Size 115*14*75mm Weight 65g Environment parameter Operating Temperature of Vertical Installation -35℃~60℃ Operating Temperature of Horizontal Installation -35℃~70℃ Relative Humidity 5~…
