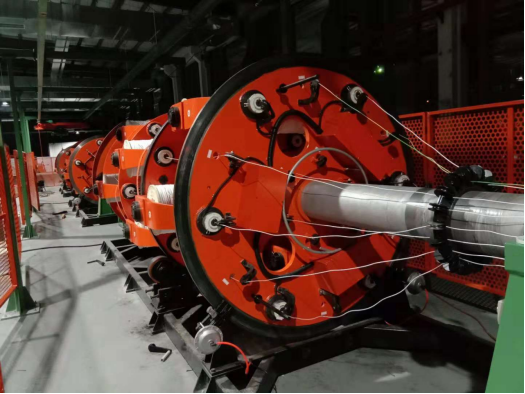

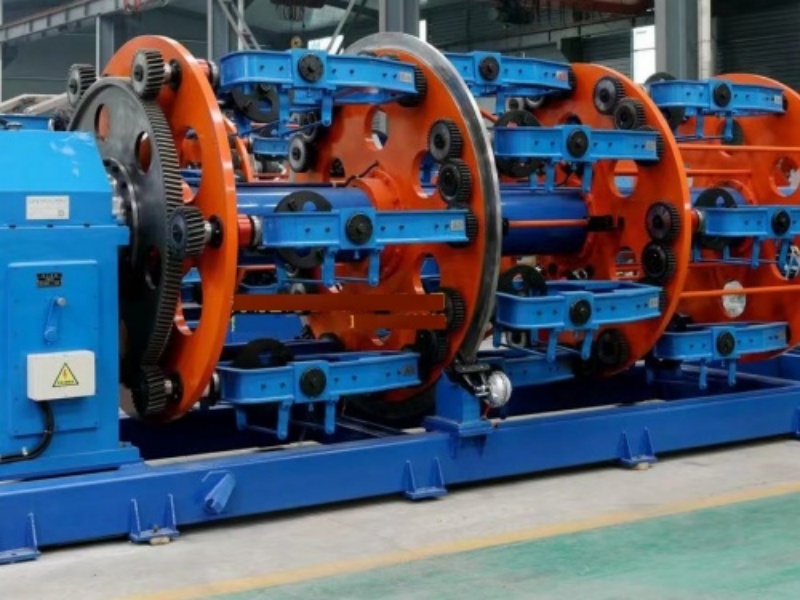

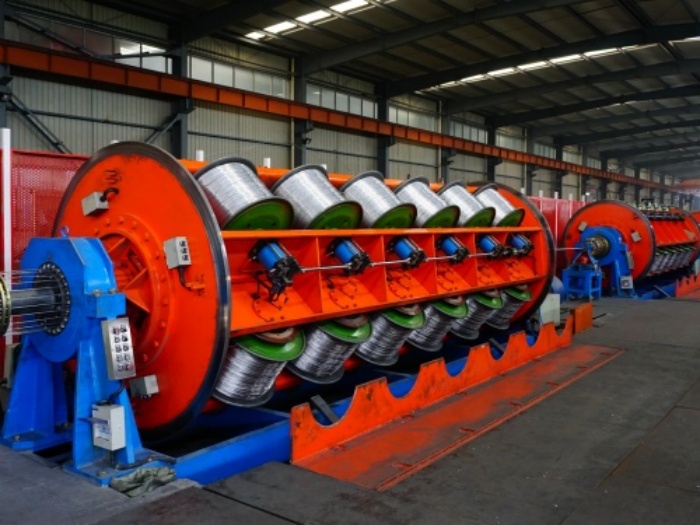

Advanced Cage Stranding Machine

 Cage Stranding Machine   1. Equipment purpose This equipment belongs to professional Cage type stranding equipment in the wire and cable industry. As a mature High-speed cage stranding machine, it is mainly used for the twisting and cabling of insulated wire cores, or for the twisting of steel core aluminum wire, bare copper and bare aluminum wire. Compared with traditional twisting equipment, this Frame Stranding Machine With High Efficiency runs stably and has strong production capacity. Adopting optimized transmission structure, it is typical Energy-efficient Stranding Equipment that effectively reduces power consumption during long-time continuous operation. 2. Main technical parameters 2.1 Maximum Diameter of Single Wire: Φ8mm 2.2 Maximum Rotational Speed of Stranding Cage: 6-disc Type 85 r/min; 12-disc Type 75 r/min 2.3 Maximum Rotational Speed of Taping Head: 500 r/min 2.4 Maximum Traction Line Speed: 35 m/min 2.5 Specification of Wire Reels Inside Stranding Cage: PN630 2.6…
