Automatic straightening machine for medical bone dril

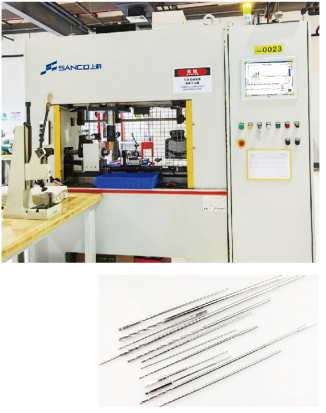

Automatic straightening machine for medical bone drill Product Overview Automatic straightening machine for medical bone drill is a high-precision Industrial Automatic Straightening Machinery designed for ultra-fine medical bone drill shafts. As specialized Straightening Equipment and reliable Automated Machinery, it adopts servo-driven lead screw loading and collet clamping, ensuring micron-level correction for tiny drill shafts used in orthopedic surgery. It is an essential Industrial Equipment for manufacturing high-quality medical instruments. Key Specifications Model: SKS05M300 Loading Mode: Servo motor drives lead screw loading Measuring Datum: Shank Measuring Points: 1 measuring point/20mm Workpiece Driving Mode: Collet clamping, servo motor drives workpiece rotation Straightening Capacity: ≤0.02mm Repeat Measurement Accuracy: ≤0.005mm Cycle Time: 60~120s per piece Core Advantages Micron-level precision meets the strict quality requirements of medical-grade bone drills Colle…
