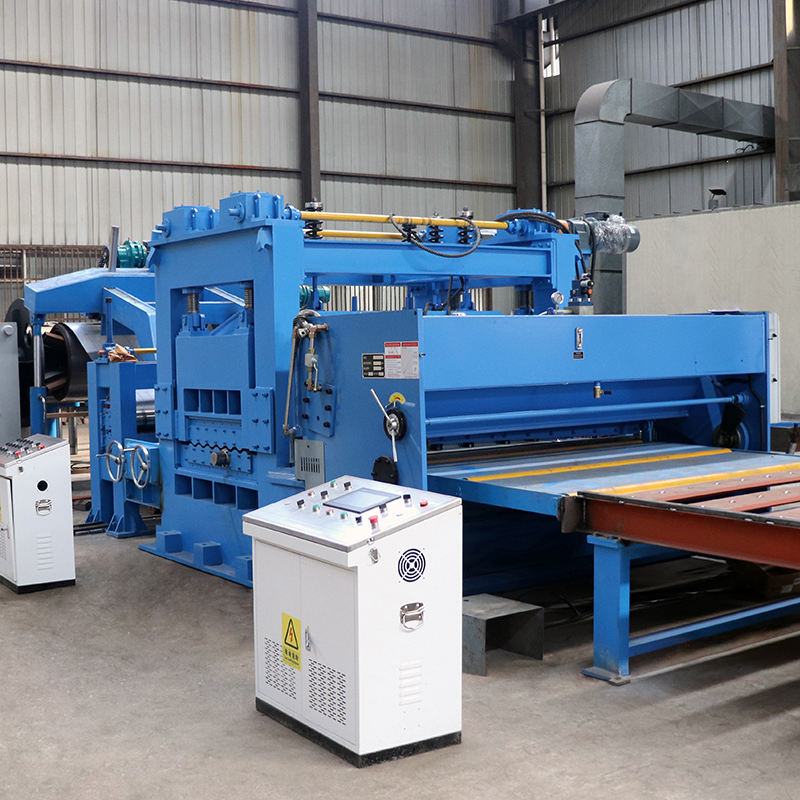

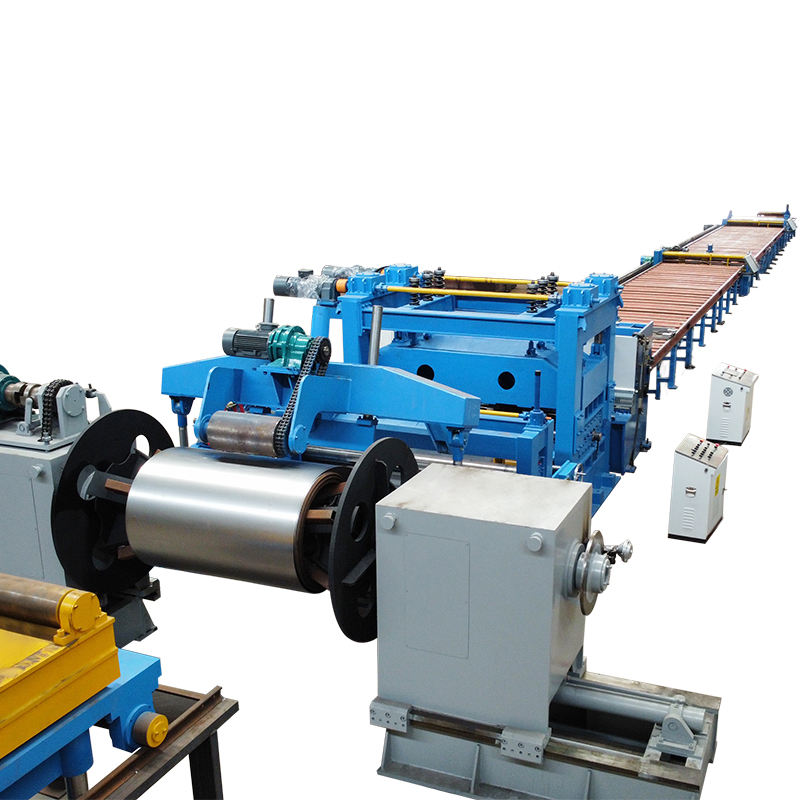

CNC Shearing and Leveling Line for Light Pole

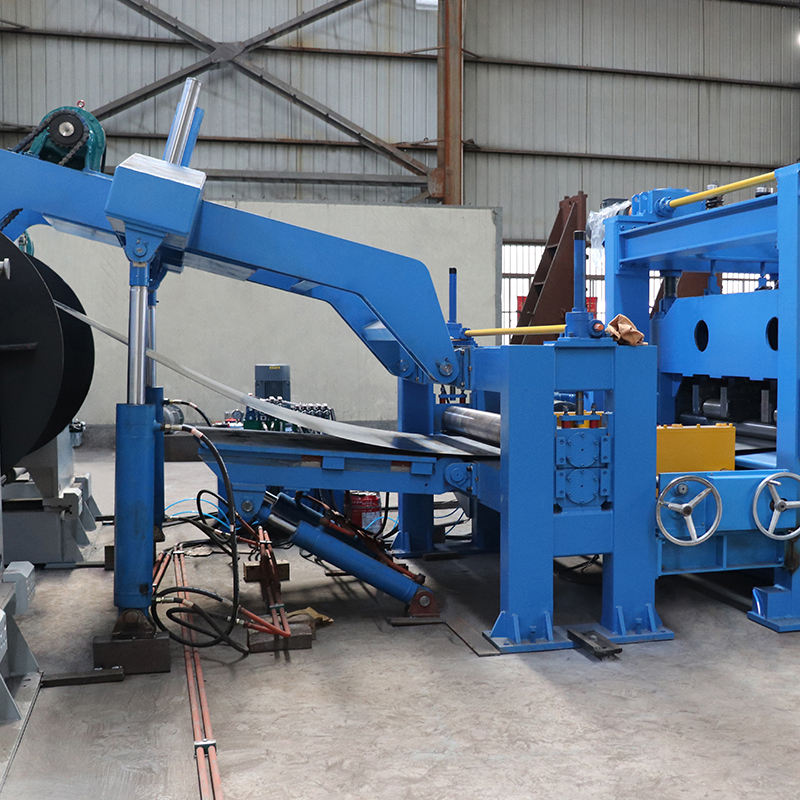

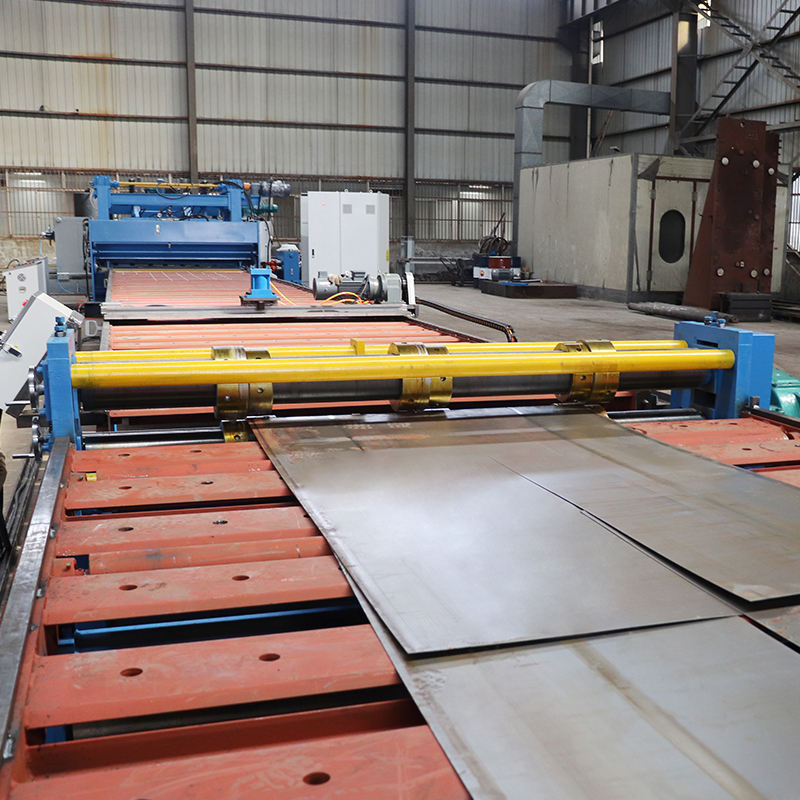

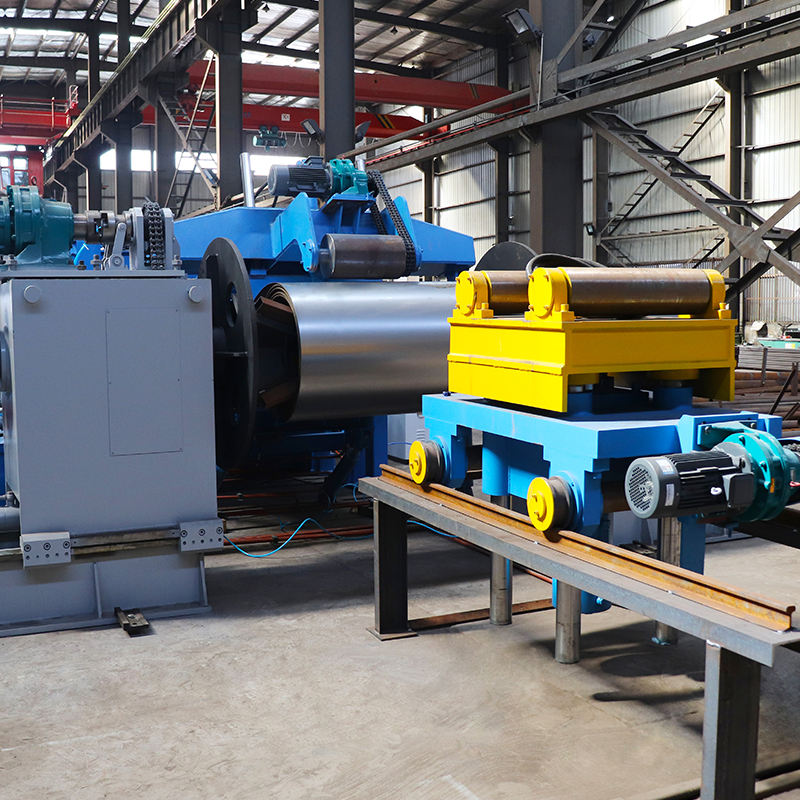

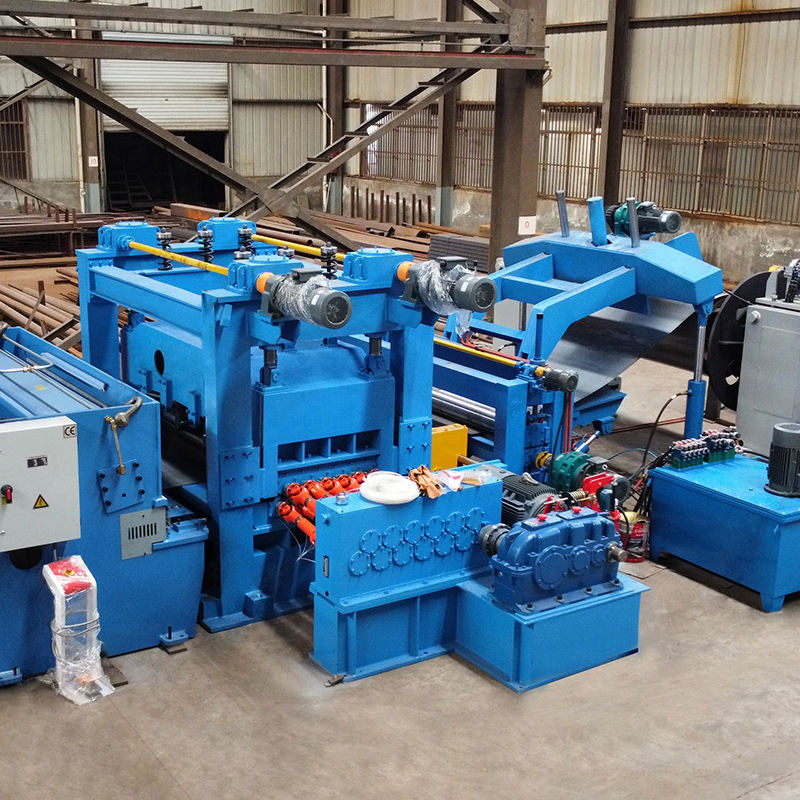

Machine OverviewThis Machine Used To Spread The Steel Coil, Leveling And Cut To The Request Size. After Manual Feed Into The Leveling Machine, As The Cutting Size, The Unit Will Finish The Leveling And Cutting Action.Equipment Combination1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System Equipment Structure And Function:(1). Uncoiler: Used To Support The Coil , Bearing 30 Tons. By The Support Shaft, Frame And Other Components. Sent To Board The First Artificial Leveling Machine, Leveling Machine Driven By The Coil To Start.(2). Side Guiding: Sheet To Prevent Run-Time Deviation, Both Sides Of The Sheet Width Direction With Vertical Guide Rollers, Guide Roller Frame Fixed To The Respective Sliding Seat, Through The Hand Wheel By The Screw-Nut Fushi Slide In The Lead Column Along The Width Direction, To Accommodate Different Width .(3). 11 Rollers Leveler: Pinch Steel And Steel Plate For Correction. From The Base,…
