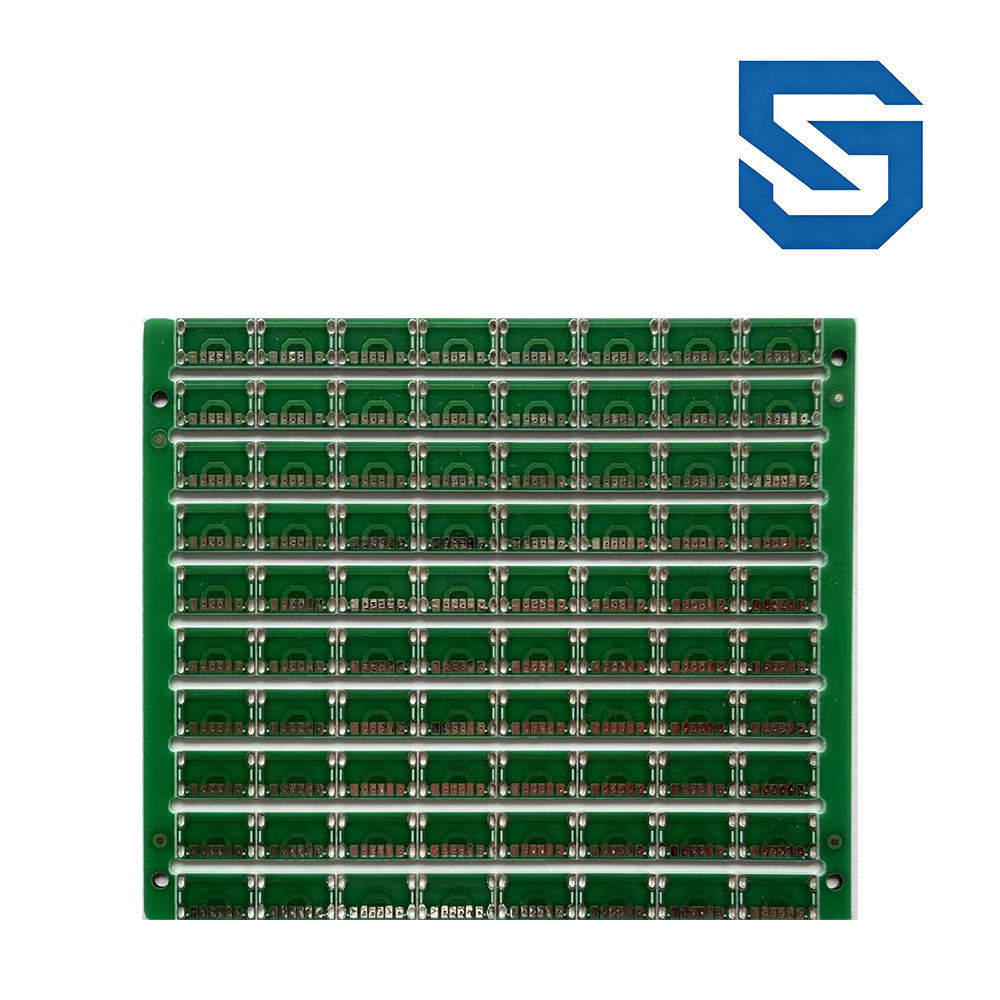

Double-sided Motor Soft Start PCB

The double-sided motor control boards are heavy-duty industrial PCB Circuit Boards, a key variant from our full lineup of reliable Single/Double-sided PCB. We deliver comprehensive PCBA Circuit Board Assembly service to provide finished motor drive and soft start modules for power tool and motor equipment manufacturers. These circuit substrates adopt FR-4 and CEM-1 as primary raw materials, fabricated by high-pressure pressing fiberglass cloth and epoxy resin, then laminated with double or multi-layer copper foil to carry stable high-current transmission for motor soft start and drive control systems. This dual-layer motor drive PCB boasts outstanding mechanical and electrical performance. It reaches V0 flame retardant grade, equipped with superior insulation, excellent temperature resistance and anti-deformation capacity to resist heat and vibration generated during long-time motor operation. Custom processing options including precision drilling, immersion gold and tin spraying are…

Double-sided Circuit Board Printed Circuit Board
