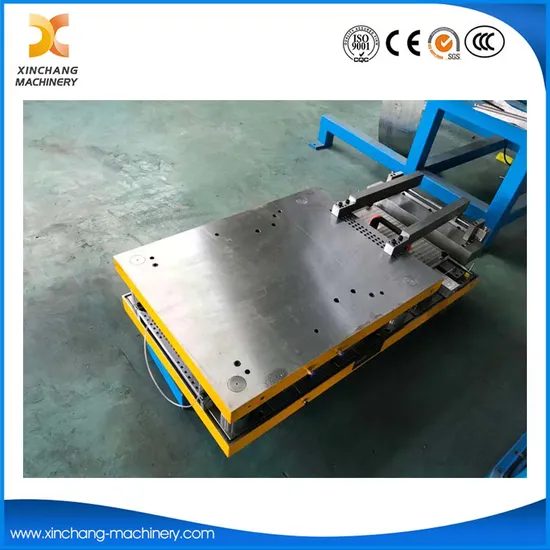

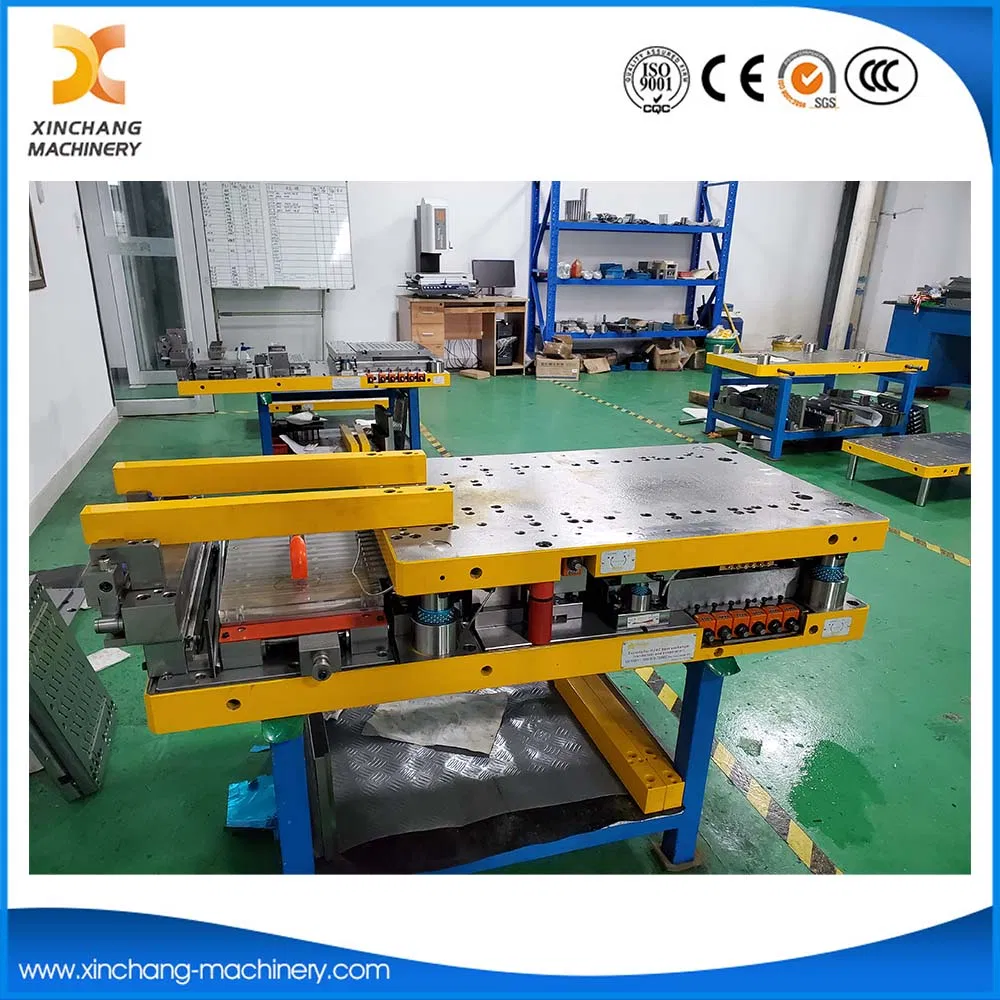

Fin Die Mould with 300 Million Punch Lifespan

Fin Die Mould with 300 Million Punch Lifespan Fin Die Parameters   Item ¢9.52×12R×2P ¢12×6R×2P ¢15.88×6R×2P 1 Type die ribbon ribbon ribbon 2 Fin shape v-wave v-wave v-wave 3 Number of rows 12R 6R 6R 4 Distance between holes in row 25mm 30mm 38mm 5 Distance between rows 21.65mm 25.98mm 32.9mm 6 Pattern staggered pattern staggered pattern staggered pattern 7 Feed progression 25mm 30mm 38mm 8 Hole size 9.85mm±0.03mm 12.4mm±0.03mm 16.3mm±0.03mm 9 Material Temper H22, A1100 Alloy/8011 or O temp Temper H22, A1100 Alloy/8011 or O temp Temper H22, A1100 Alloy/8011 or O temp 10 Fin stock thickness range 0.1-0.25mm 0.1-0.25mm 0.1-0.25mm 11 Collar height range 1.5-6.5mm  1.5-7.0mm 1.5-8.0mm 12 Reflare individual adjustment for full range of collar heights individual adjustment for full range of collar heights individual adjustment for full range of collar heights 13 Collar base provided provided provided 14 Slitter blades blade positions in each row with quick…
