Flexible Wearable US Patch Solution

The wearable ultrasonic imaging device Innosonics develops that can be attached to the skin for an extended period and capture real-time dynamic images of internal organs. It achieves non-invasive, portable ultrasonic detection in the form of a flexible patch, and is suitable for medical diagnosis, surgical assistance, long-term monitoring, and other scenarios. Technical Features 1.      Non-invasiveness 2.      Long-term monitoring 3.      High resolution   Applications 1.      Clinical diagnosis 2.      Surgical assistance 3.      Future potential Type micro linear transducer array Elements 64 Scan geometry L7.04 mm -6dB Center Freq. 12 MHz±10% -6 dB Fractional Bandwidth ≥50% Freq. range 6~16 MHz Sensitivity  ≥-70 dB Pitch (μm) 0.11 mm Element width 0.085 mm Kerf 0.025 mm Lateral aperture 1.92  mm Focal length 20±5 mm Plug type Default: QLC260P; subject to change per customer requirements. CSI Main-harness plug pin map Main-harness plug PCB Al…

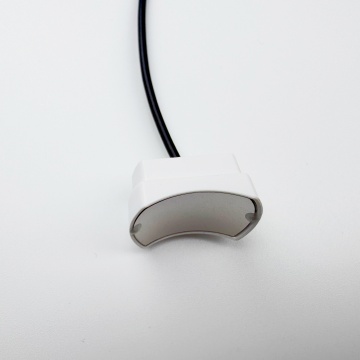

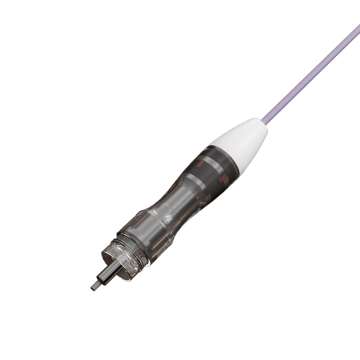

Ultrasound Ablation Transducer Ultrasound Scalpel Transducer Sofwave Ultherapy Wearable Ultrasound Patch
