INLINE FUEL FILTER CARTRIDGE 

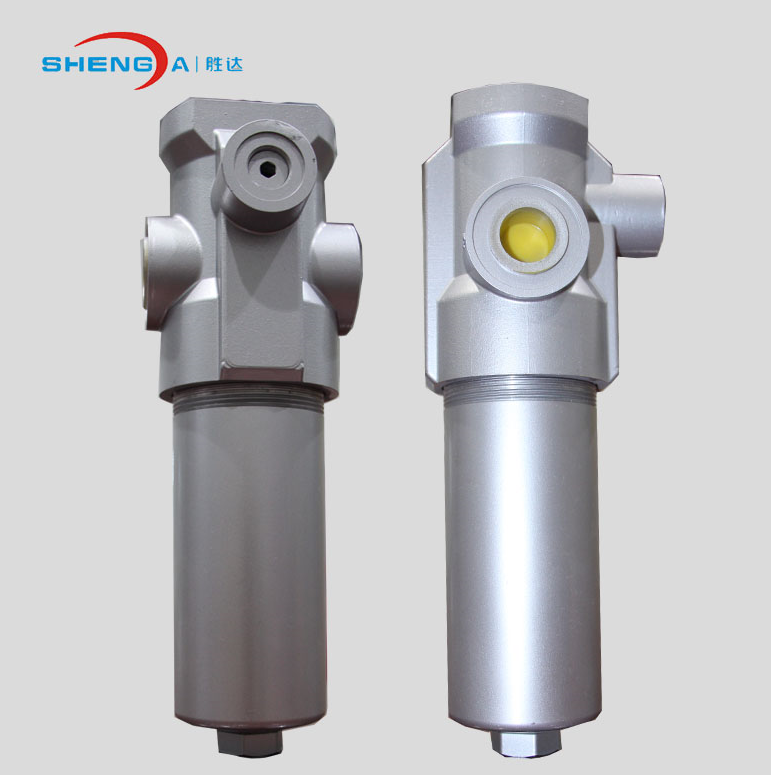

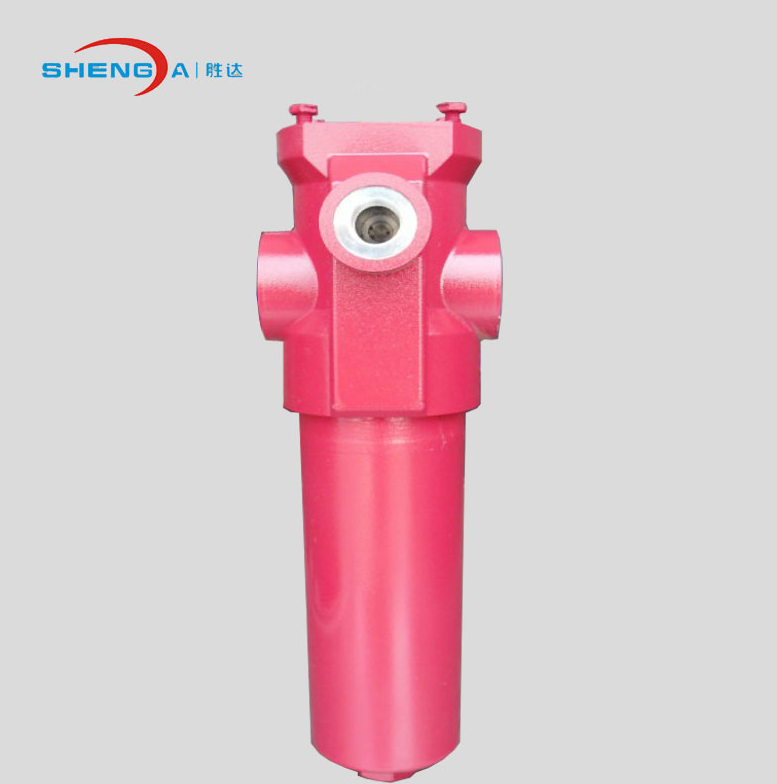

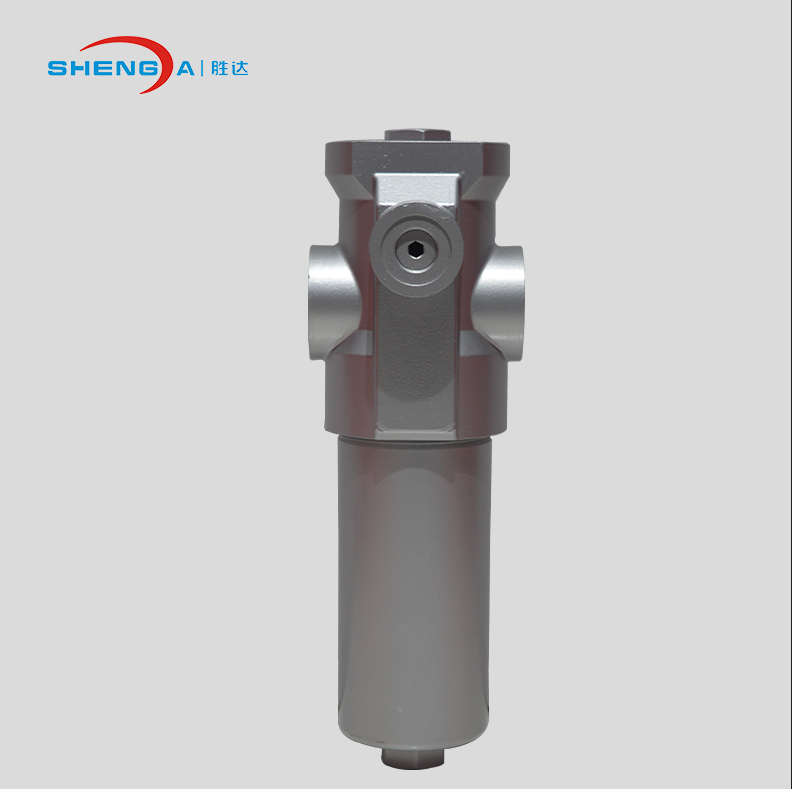

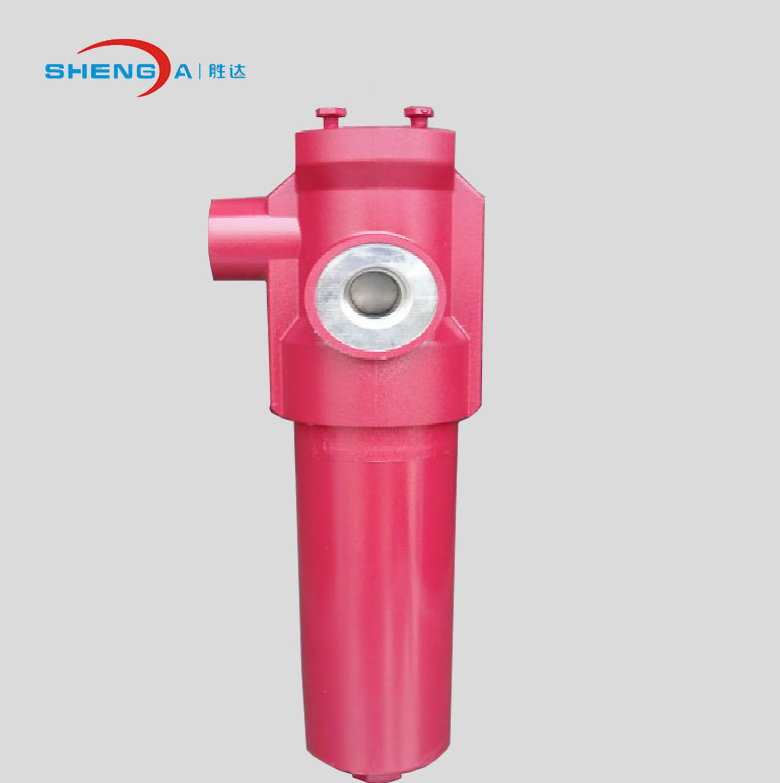

Inline Filter (SDLFM) ---- up to 120 L/min ---up to 63 bar ---aluminum/steel 1. Introduction 1.1 Filter Housing Construction: Inline Filter consists of a filter head with screw - in filter bowl. 1.2 Filter Element Max. Allowable D.P.:  - BN/HC 20 bar 2.   Description Mounting                 As inline filter Flow       Inlet: side           Outlet: opposite side Temperature range - 30 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa= 2 bar – 0.2 bar (others on request) Cracking pressure of bypass valve △ Po=3 bar + 20% (others on request) 3.    Notes: *  Filter housing must be earthed; *  When using electrical clogging indicators, the electrical power supply to the system must be switched off before r…
