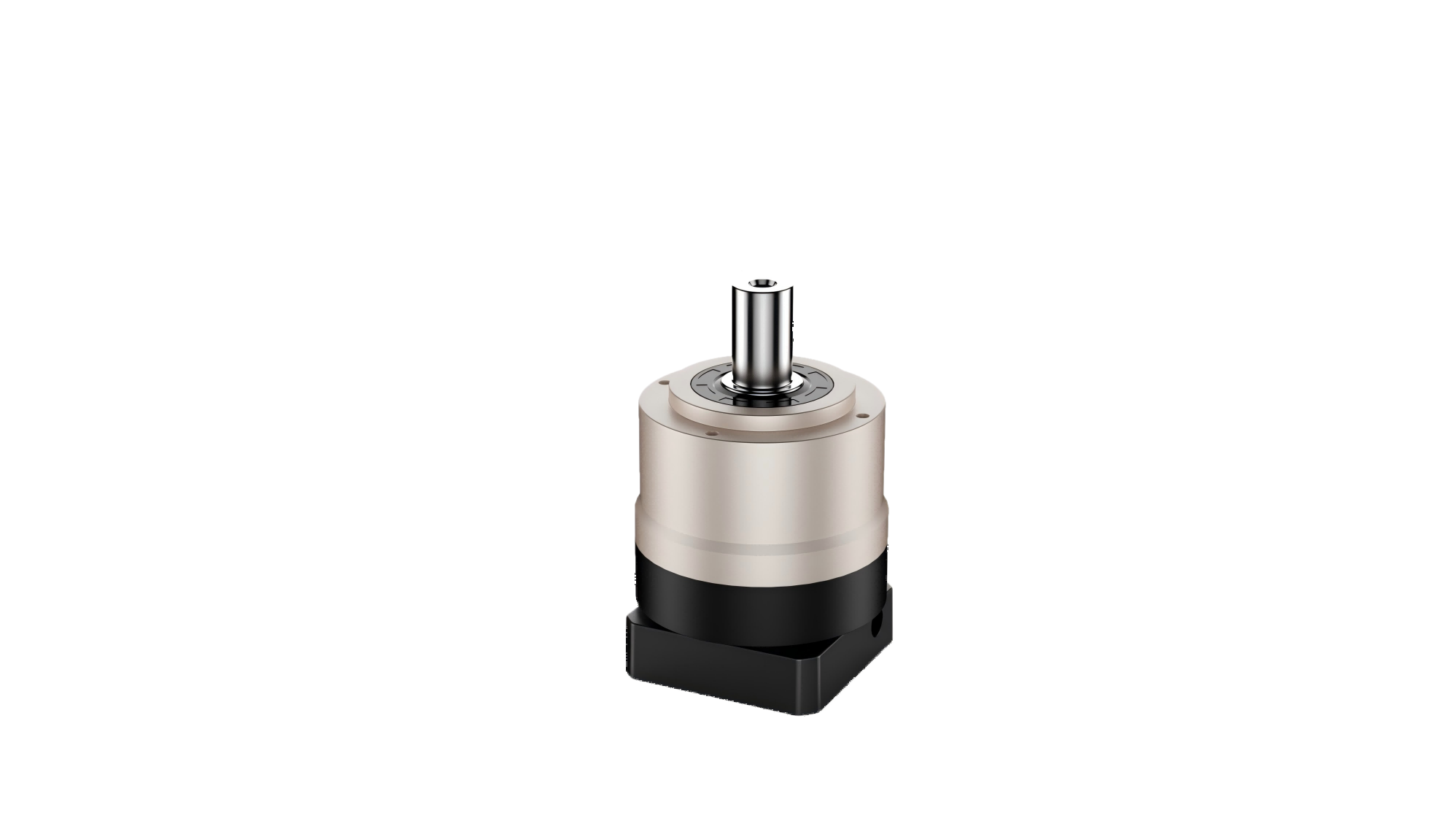

Planetary gear reducer SAE090

SAE090 In-Line Helical Gear Reducer | Cost-Effective Low-Backlash Servo Drive Maximize your mechanical efficiency and competitive positioning with the Planetary gear reducer SAE090, the cost-effective inline entry in our high-utility SAE Series Planetary Gearbox family. Specifically engineered to balance entry budget requirements with precise positioning demands in factory automation, this durable unit delivers a reliable constant rated torque profile of 100NM to 160NM within a streamlined 90mm frame geometry. Built to mate perfectly with light and mid-sized industrial servo motors, its helical gearing matrix spreads stress evenly across multiple tooth surfaces. Providing standard single-stage play controlled to an impressive ≤5 arcmin limit, the SAE090 stands out for its low thermal generation, long-term oil containment, and ultra-quiet operation. Engineering & Kinematic Performance Matrix Torque Profile: 100NM – 160NM Continuous Rated Output Torque Single-Stage Ratios: 3…
