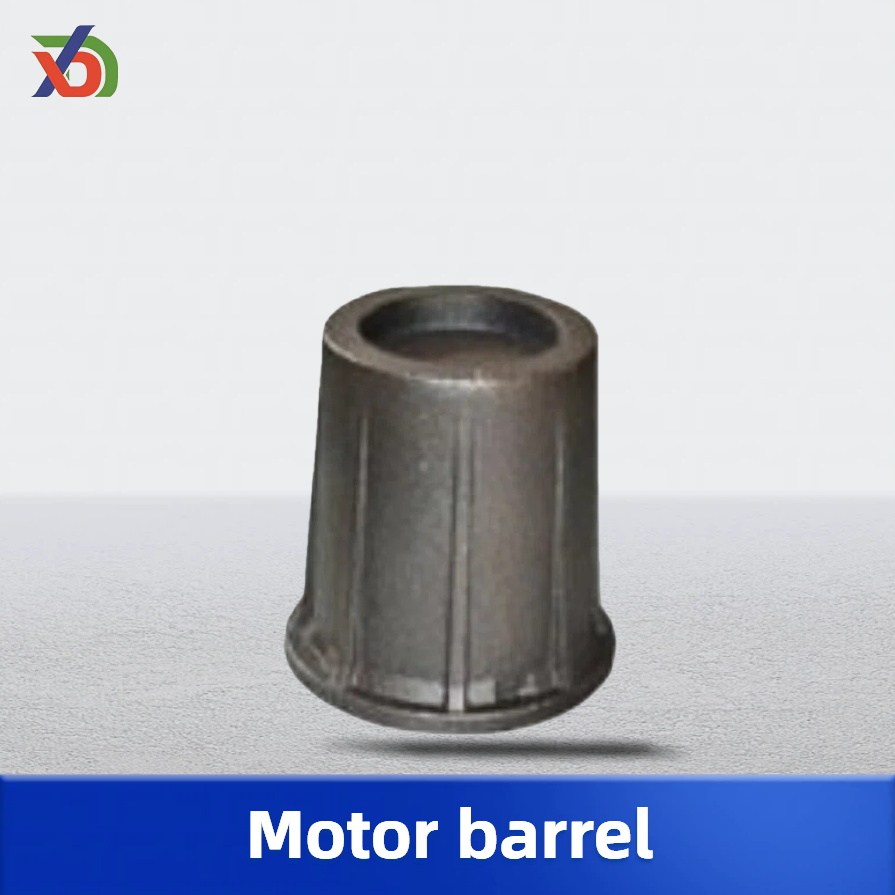

Reinforced Motor Barrel for Stable Motor Housing

The appearance of this gray cast iron motor barrel follows a "practical structural style" - the top adopts a deep concave design, forming an accommodation cavity suitable for the rear components of the motor. The edge of the cavity opening is chamfered, facilitating the quick assembly of internal parts. The main body of the shell is in a gradient cylindrical shape, naturally transitioning from the narrow opening at the top to the wide base at the bottom. This not only saves longitudinal space but also ensures more uniform force distribution.   The most distinctive feature is the three longitudinal reinforcing ribs on the side wall: the ribs are integrally cast with the cylinder body without any seams, which increases the load-bearing capacity of gray cast iron by 20% and makes it less prone to deformation even under high-vibration conditions. The smooth curved surfaces between the ribs not only facilitate the cleaning of surface dust but also reduce the dead corners where dust accumul…
