Reliable EQ30 High Frequency Transformer for Power Systems

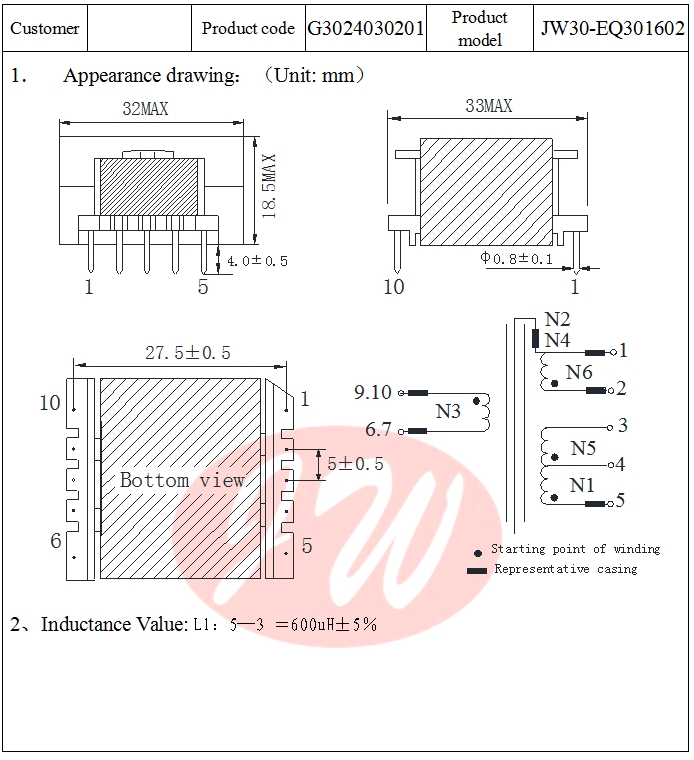

The "Energy Courier" in the power supply         This product is a High Frequency Transformer with Ferrite Core Transformer construction, specifically engineered for switch mode power supply transformer applications. It delivers efficient energy transfer and galvanic isolation in a compact footprint, supporting flyback, forward, and other mainstream topologies – making it a reliable core component for medium‑ and small‑power modules.   Key Electrical Specifications (Tested at 10 kHz / 1 V) Inductance:   L1 (pin 5–3): 600 μH ±5%   L2 (pin 2–1): 20 μH ±7 μH   L3 (pin 9.10–6.7): 53 μH ±10 μH   Dielectric Strength:   Primary to secondary: 3.0 kV AC / 5 mA / 3 s   Primary/secondary to core: 1.5 kV AC / 5 mA / 3 s   Process & Construction Features   Composite windings (enameled wire, triple‑insulated wire, and adhesive copper foil shielding) suit various circuit requirements.   Centered copper foil with heat‑resistant sleeving and dual‑layer tape ensures reliable creepage clearance…
