Resin Impregnated Fiberglass Composite Filter Cartridge

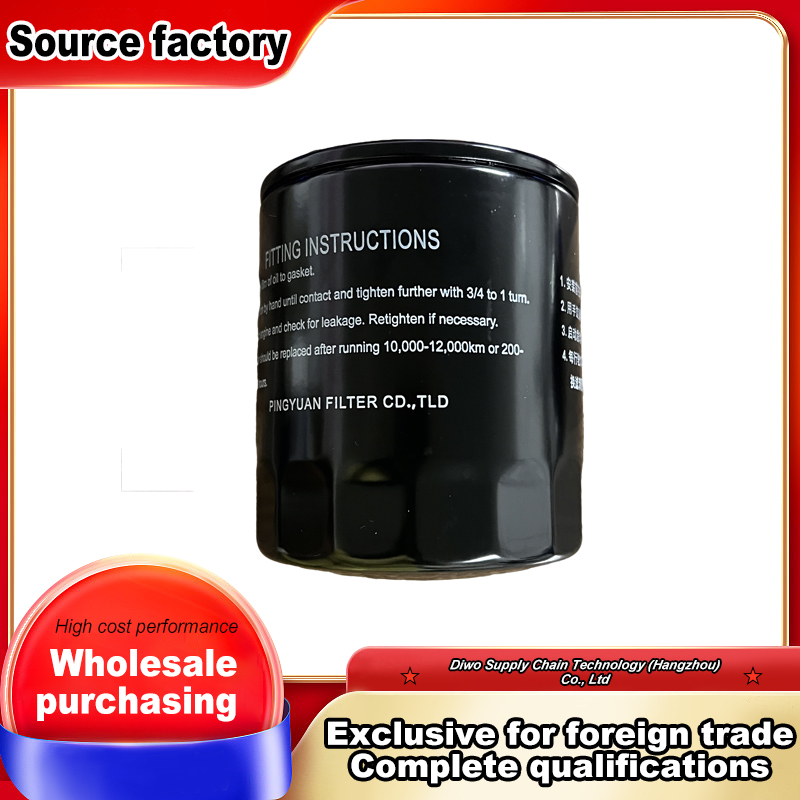

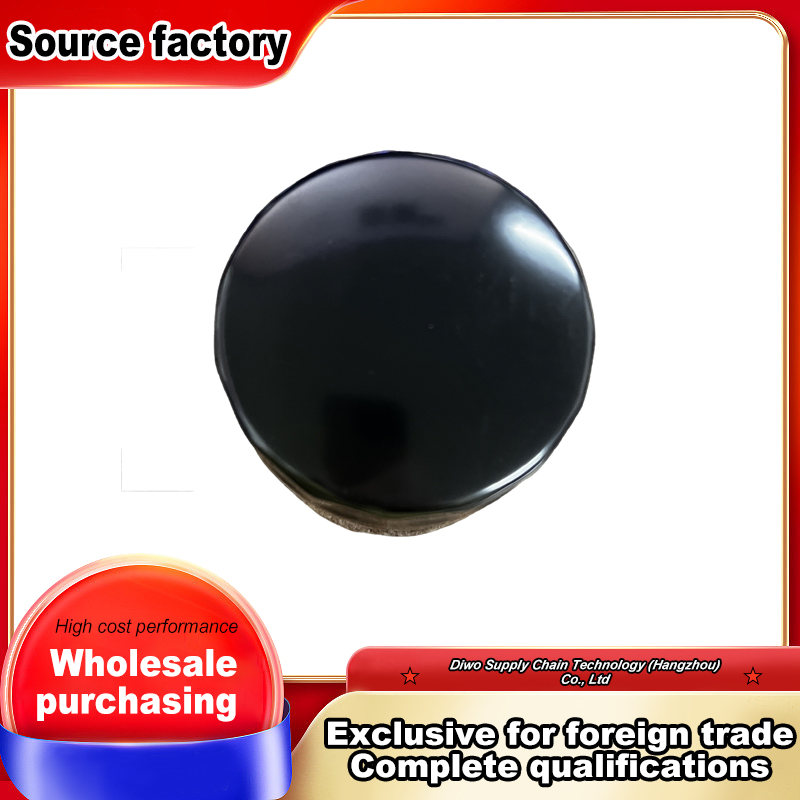

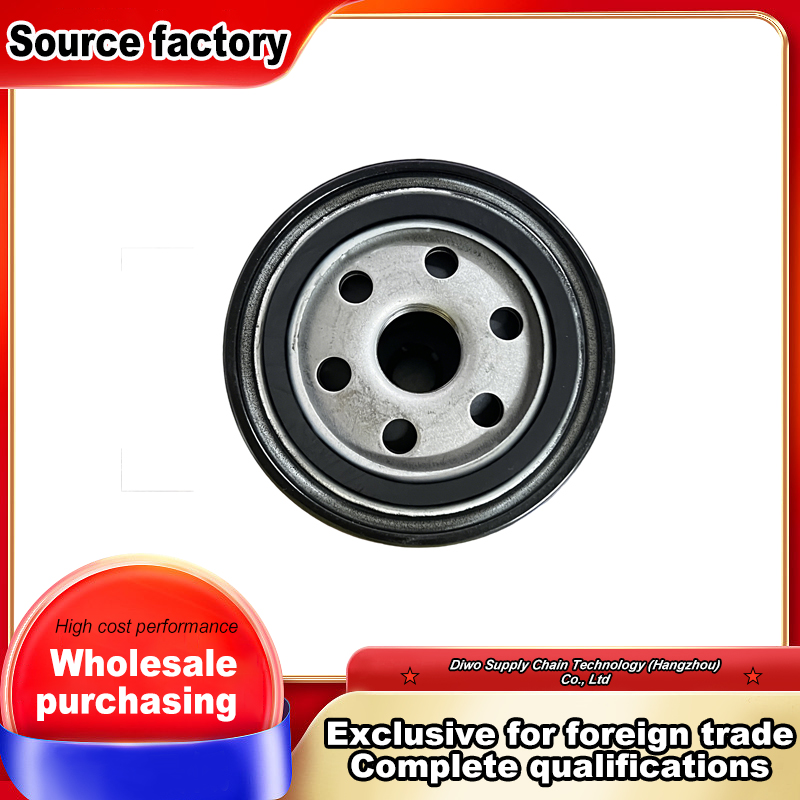

Oil Filter Assembly 1017100-ED01 93mm Outer Diameter 112mm Total Height M22×1.5 Thread Hexagon 76mm or 74mm Socket Fit This Oil Filter Assembly carries part number 1017100-ED01. Outer diameter is 93mm. Total height is 112mm. Thread specification is M22×1.5. The hexagon size fits common 76mm or 74mm sockets for installation and removal. The filtration medium uses resin impregnated composite glass fiber filter paper. This provides a high precision filtration layer. The outer shell is made of cold headed low carbon steel. The surface has black electrophoresis coating or powder coating for rust prevention. The sealing ring is NBR nitrile rubber with oil resistance and high temperature resistance. Its dimensions are 62mm outer diameter 52mm inner diameter and 4.4mm thickness. The end caps and internal support use phenolic resin or engineering plastic. The threaded interface is low carbon steel with nickel plating. Thread standard is M22×1.5. This product belongs to Filtration And Air Condi…
