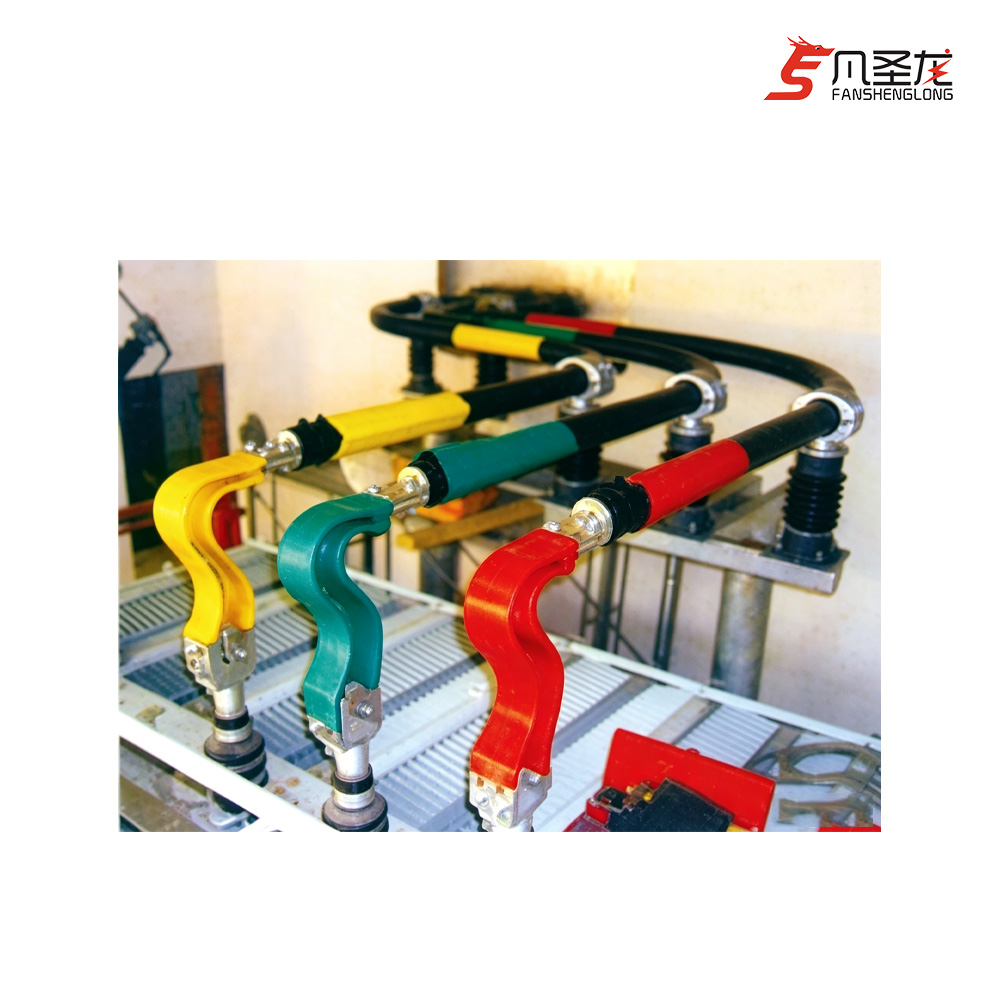

semi-insulating pipes of FSL-GXtubular busbar

1.semi-insulating pipes and insulation bus structure 1,Conductive copper (aluminum) tubes 2, thermal insulation pipes 4, the insulating sheath tube For example: Rated voltage 10kV (highest system voltage of 12kV), rated current 4000A semi–insulated copper busbar Name: 10kV semi–insulated copper busbar Model: GX12 / 4000 Features: support in bus parts, interior parts, partially shielded wall insulation structure (structure shown in Figure a), other parts of PTFE, thermal insulation and heat shrink busbar tube black sheathing for insulation protection (structural Figure 2). Applicable installation environment: outdoor + indoor. GXbus compared with the conventional bus has the following advantages: Skin effect is low,the unit containing large flow cross-section GX bus using copper–based conductors, round brass exterior surface, uniform charge distribution, unlike the rectangular bus angular surface charge easily gathered at the edges and corners, causing the bus localized heating. Waste…
