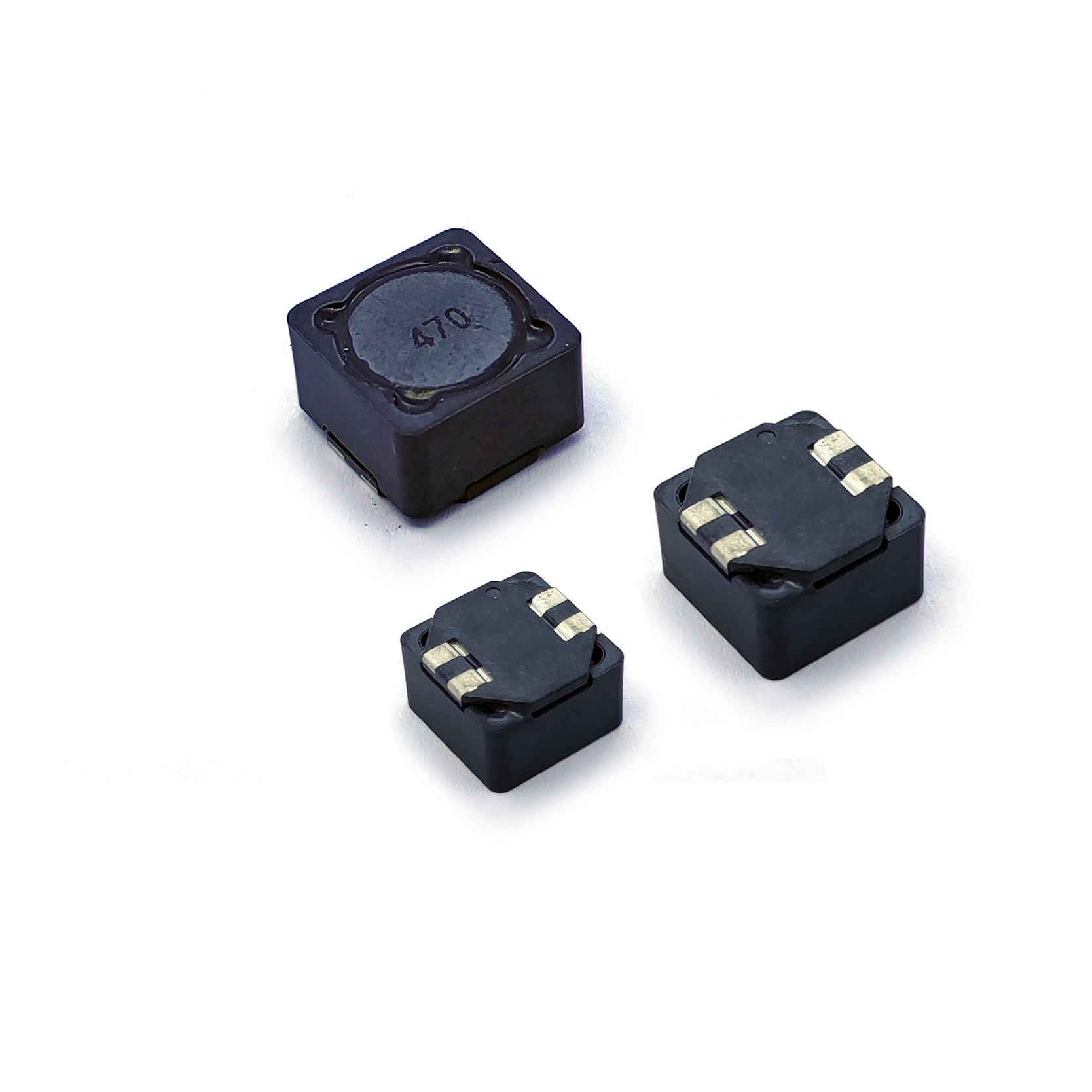

SMD Common Mode Chokes SDRH-D

SDRH-D Family Dual Winding,Shielding Inductors  The SMD Common Mode Chokes SDRH-D series delivers industry-leading EMI suppression through its dual-winding architecture. Optimized for EMI filter integration in high-density designs,  these components achieve certified thermal stability while maintaining VRM-level power integrity. Features・Tight coupling of dual windings・Laser-welded joints for durability・Mechanical robustness meeting EMI standards・Flexible configurations (1:1 transformer/dual inductors) Applications・SEPIC/flyback transformers・DDR VRM solutions・Buck/boost converters for laptops・Network equipment I/O filters Series in this family  Product Series L(µH) DCR Max(Ω) IDC (A) SDRH0703D 0.33-1000 0.0074-17.36 0.13-7.18 SDRH0704D 0.33-1000 0.074-15.6 0.135-3.1 SDRH1048D 1.54-220 0.019-0.84 0.62-2.4 SDRH1205D 0.47-1000 0.0018-6.76 0.35-16.5 SDRH1207D 0.47-1000 0.00195-6.64 0.307-8.94 SDRH1260D 2.64-1000 0.02-3.06 0.34-3.60 SDRH1278D 4.7-1000 0.04-2.87 0.…
