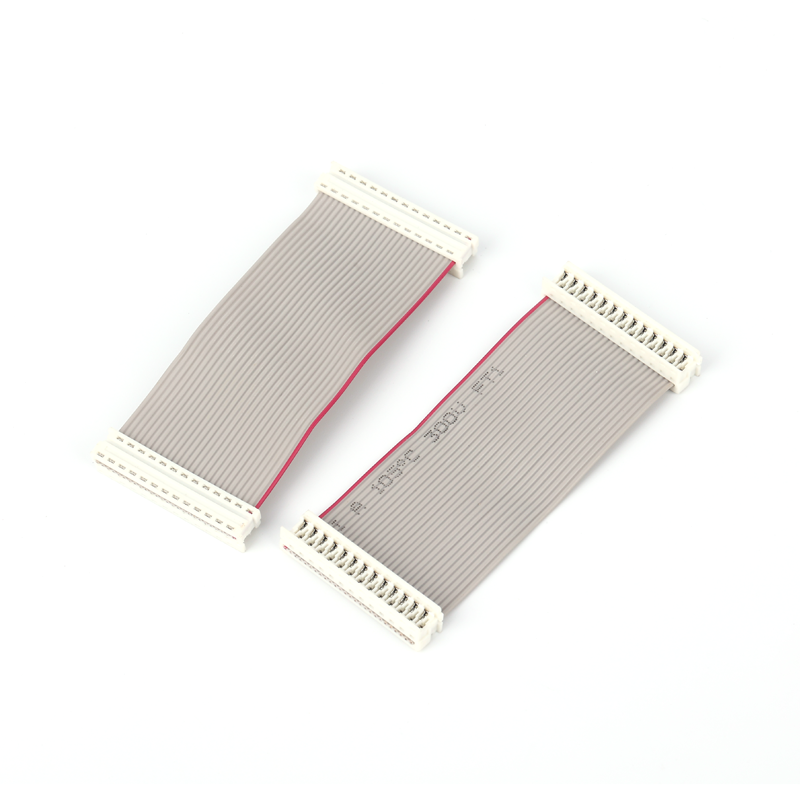

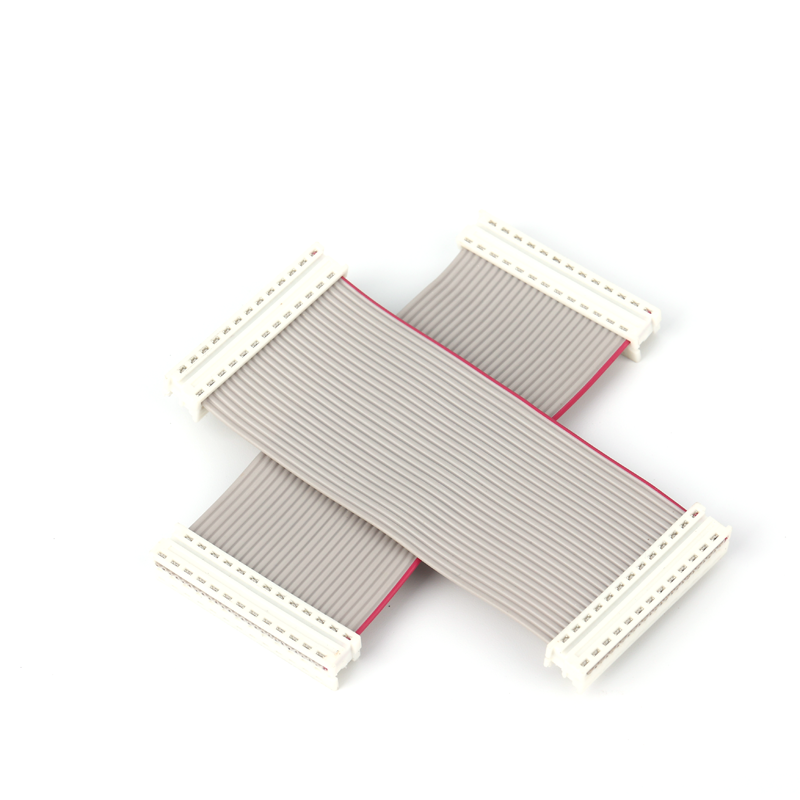

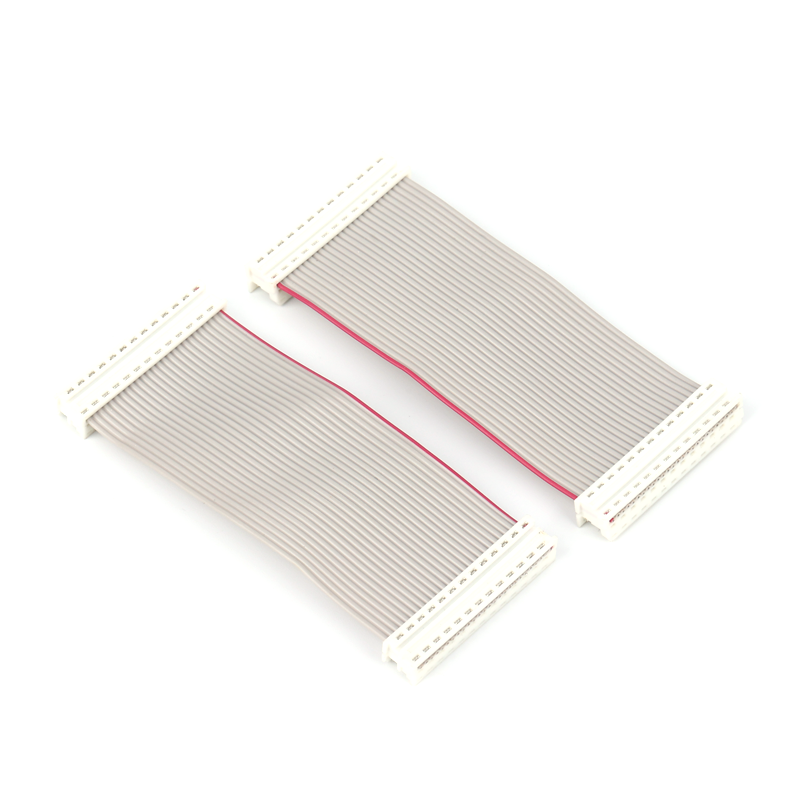

1.27 Red edged gray ribbon cable UL2651

Project Parameter Description Product Name IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc. Connection Method IDC (Insulation Displacement Contact) Ribbon Cable Type Gray Ribbon Cable Ribbon Cable Standard UL2678, etc. Conductor Specification 30AWG Pitch 1.27mm (Standard) Core Count (PIN Count) 6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.) Plug Structure Two - piece / Three - piece (with or without cover) Connector Color Black (Standard), customizable color Ribbon Cable Color Gray (Standard) Rated Current 0.5A / PIN (depending on conductor specification) Working Voltage 250V AC / DC (depending on insulation material) Working Temperature Range 105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.) Flammability Rating UL94V - 0 (connector housing) Contact Resistance Maximum 20mΩ Insulation Resistance Minimum 300MΩ Termin…
