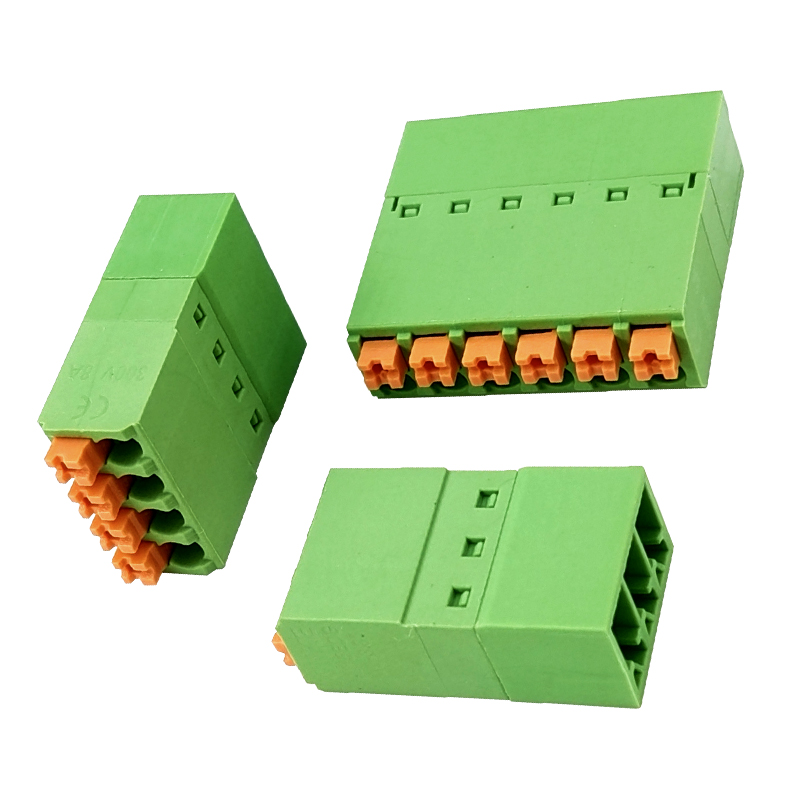

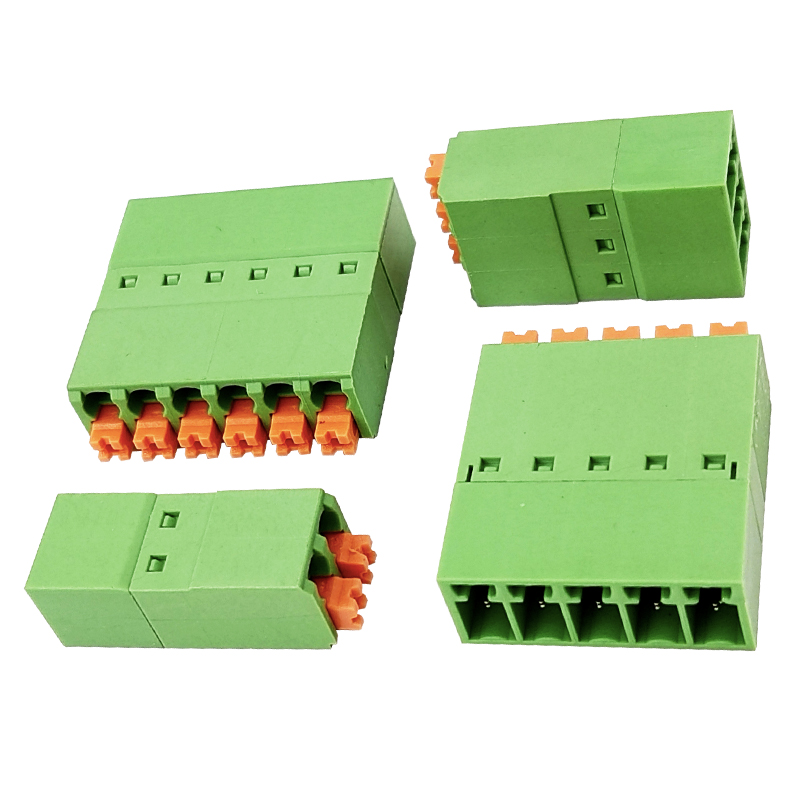

3.81MM Pitch Thin Spring Plug in Solderless Butt Male Terminal Block Connection

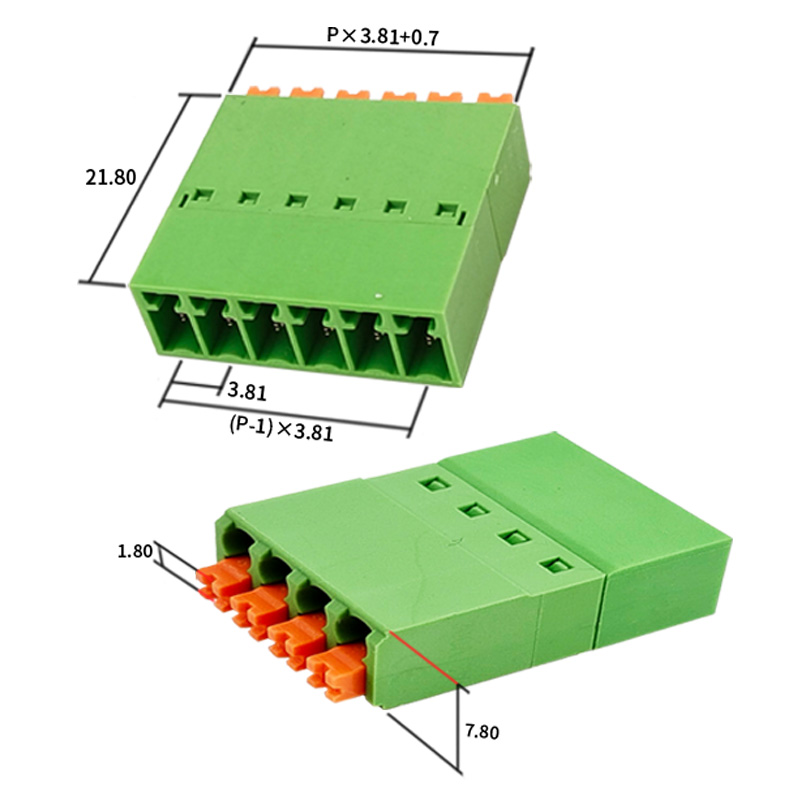

XK15EDGRKN-3.81MM Wire range:28-16AWG(1.5MM²) 3.81MM Pitch Thin Spring Plug in Solderless Butt Male Terminal Block Connection Environmental certification Insulating flame retardant Quality assurance Basic Product Information Rated voltage 300V Rated current 8A Withstanding voltage 1600V/1Min Wire range 28-16AWG(1.5MM²) Rated impulse voltage 2.5KV Temp range -40℃~+105℃ Strip length 8-9 MM Screw/Torque - Housing PA66.UL94V-0 Pin header Brass,Tin plated Reed Stainless steel Contact Phosphor Bronze,Ni plated Pitch 3.81MM Poles 2-24 P Product Drawings Genuine Material Packaging & Shipping The package of  XINKE has the  the unity of inner and outer packing. Also special cartons can be made for the customer if have any requirements. Manufactory Profile Ten years casting experience, professional production of high quality terminal block.   see more about us:  www.cxxinke.com Our Services   1.About the samples:  We are…
