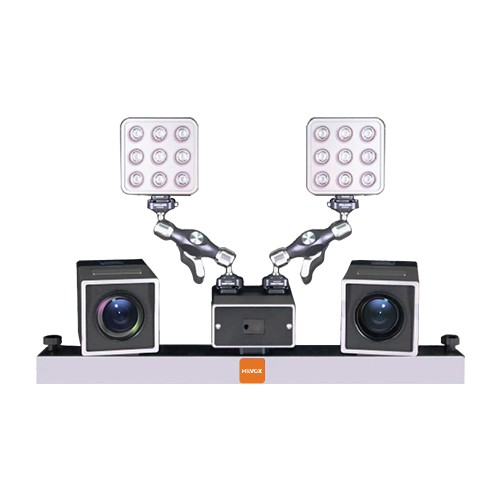

3D Full-field Strain Measurement System MICRO 24M

PRODUCT INTRODUCTION The Real-time 3D Strain Field Analysis System employs image correlation technology and visual triangulation algorithms. During sample loading, a high-precision industrial camera continuously captures images of the sample surface. Through mathematical 3D reconstruction, it acquires three-dimensional coordinate data of each measurement point under different loading conditions. By analyzing these coordinate data, the system accurately calculates dynamic 3D strain values, displacements, velocities, and accelerations of the tested object. Furthermore, the analysis of measurement data enables the determination of various mechanical properties, motion trajectories, and deformation characteristics of the material.   The advantage of the HC 30 ful-feld strain measurement ystem les n ts ablity to rapdy obtain three- dme nsional oordnates, displa cement, and stran data acrossthe entie surface of the specinen This is equivalent to colecti…
