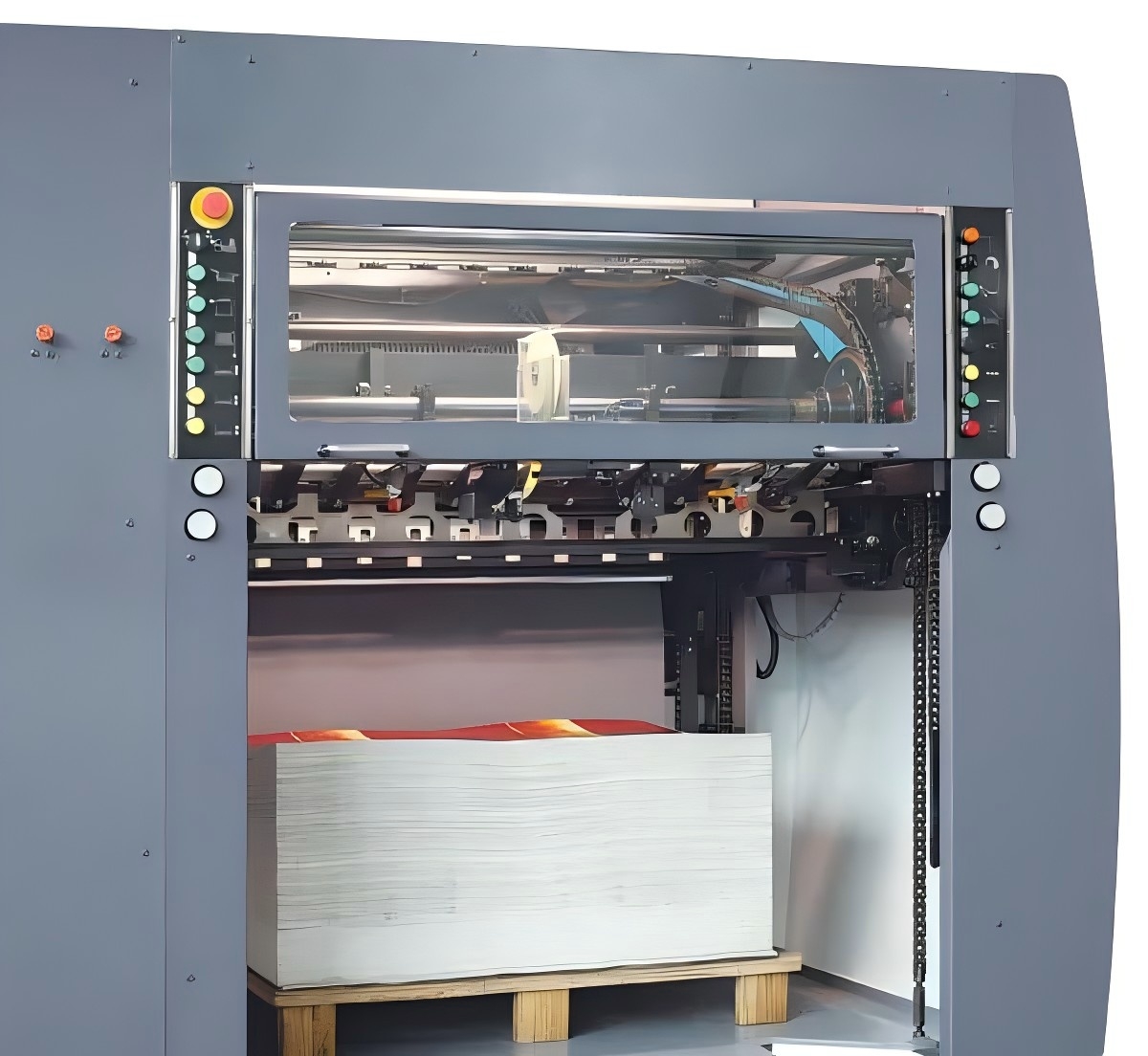

AUTOMATIC DIECUTTING CREASING MACHINE

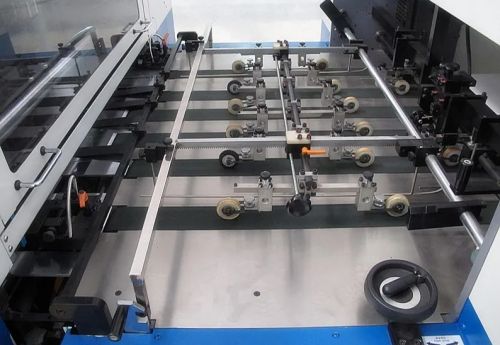

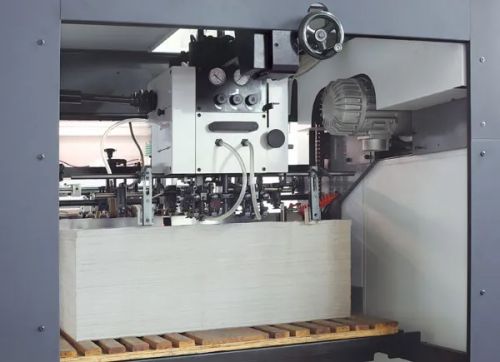

This flatbed diecutter machine is used for making the carton by process of cutting and creasing at cardboard, suitable for paperboard, duplex board, solid board, laminated board, and corrugated board.   Suitable for the following industries: Main processed materials: Specification: Max. sheet size  740 x 1060mm Min. sheet size  270 x 400mm Max. cutting size  730 x 1050mm Min. gripper size  8mm Max. die mould size  764 x 1112mm Max. operational pressure  250tons Max. cardboard thickness Paperboard: 0.1~1.5mm,Corrugated board up to 4mm (B flute) Max. production speed 7500 pieces/hour Required power supply 19kw Net weight of machine 13tons Diemension of machine 5708 x 3700 x 2040 mm NOTE: AIR COMPRESSOR, displacement: 0.35 m3/min,( 63692587,Compressed air rated pressure: 8bar), equipped by user.   Top Feeder: 1.The latest developed feeder, smooth & precise feeding at high speed, suitable for cardboard 0.1-1…
