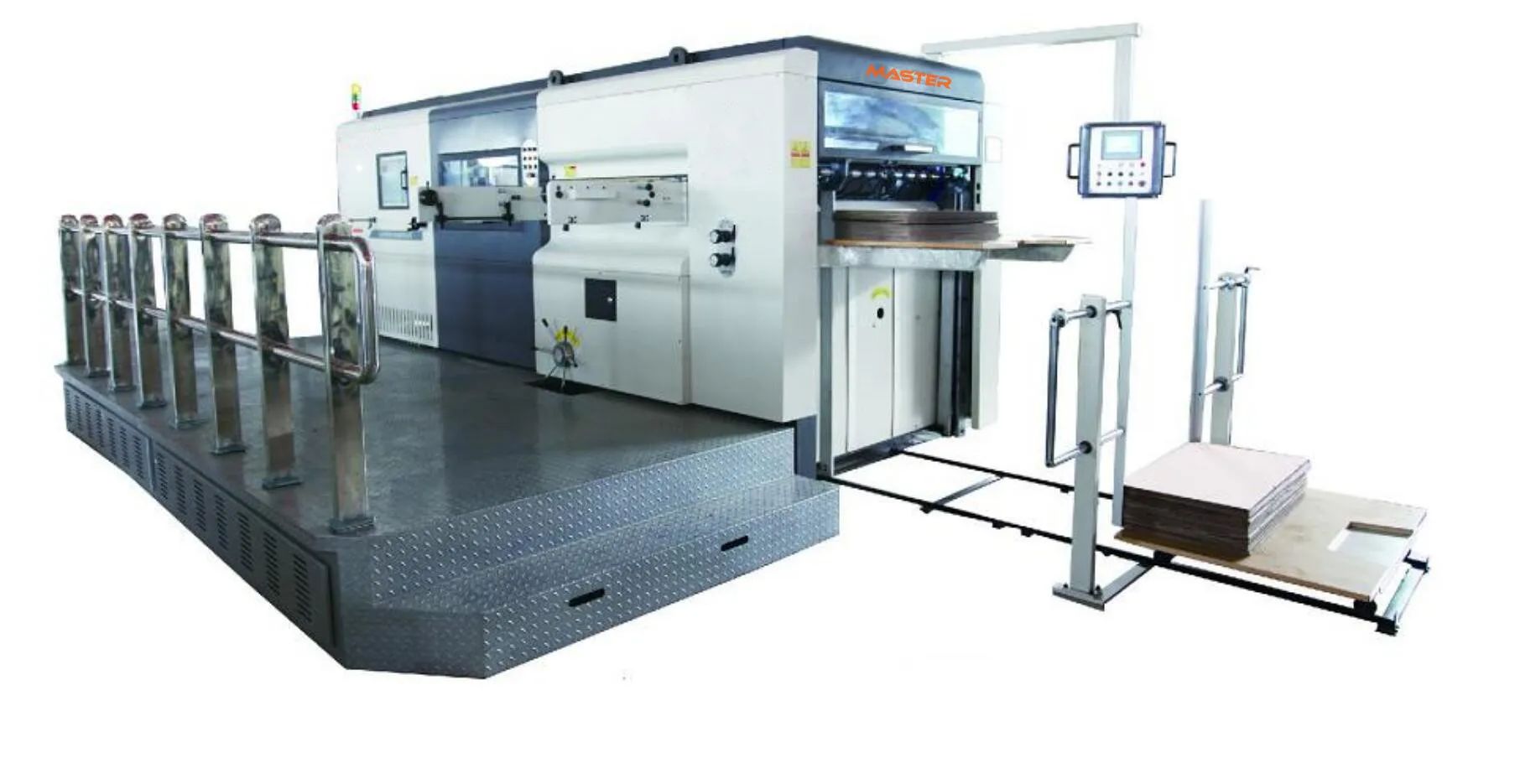

SEMI AUTOMATIC FLATBED DIECUTTER

High quality semi automatic flatbed diecutter for corrugated box factory, suitable for cutting paper, cardboard, corrugated board, flip sheet, plastic sheet,etc. Optional with Stripping or without Stripping Function.   Specification: Item 1300 1450 1620 1880 2100 Max sheet size 1330mm*980mm 1480mm*1080mm 1650mm*1210mm 1880mm*1420mm 2100mm*14200mm Min sheet size 550mm*480mm 550mm*480mm 650mm*500mm 650mm*500mm 650mm*500mm Die cutting accuracy ±0.4mm ±0.4mm ±0.4mm ±0.4mm ±0.4mm Max cutting pressure 400T 400T 300T 300T 300T Pressure adjustable range ±1mm ±1mm ±1mm ±1mm ±1mm Min front waste edge size ≥8mm ≥8mm ≥8mm ≥8mm ≥8mm Max mechanical speed 4200S/H 4200S/H 4000S/H 3000S/H 3000S/H Total power 17KW 20.5KW 20.5KW 25.5KW 26.5KW Total weight ≈17T ≈19T ≈21T ≈25.5T ≈27.5T   Feeding unit Die cutting unit Equipped with overload protection mechan…
