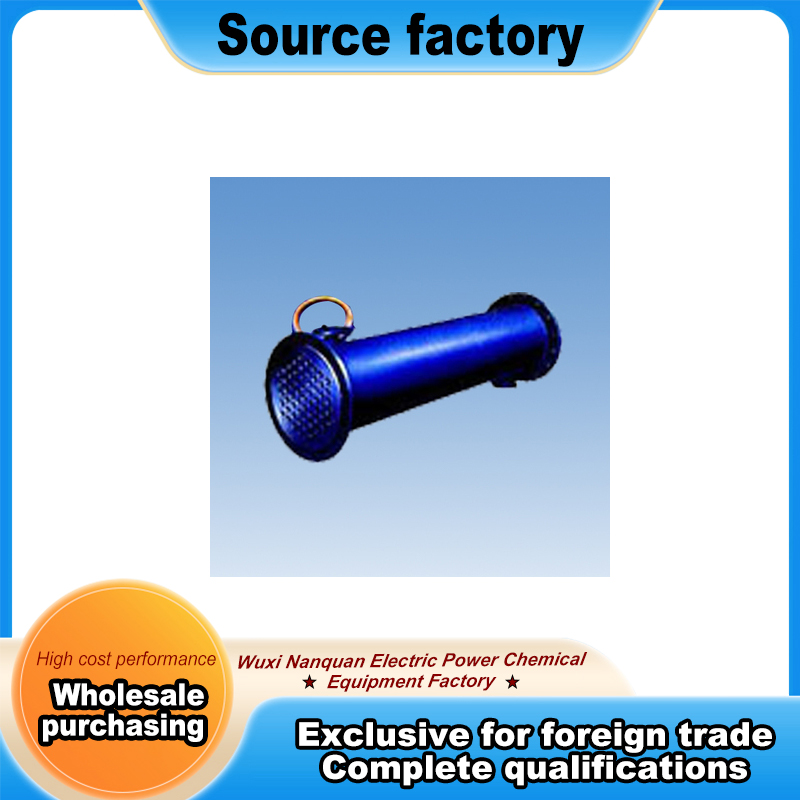

Industrial Stainless Steel Shell and Tube Heat Exchanger

Shell and Tube Heat Exchanger – Industrial Process Duty This shell and tube heat exchanger is designed for straightforward industrial heating and cooling applications. It covers nominal diameters from 159 mm up to 1000 mm. Tube counts range from 14 tubes on small units up to 792 tubes on larger frames. Carbon steel tubes of 25×2.5 mm and stainless steel tubes of 25×2 mm are both available. The equipment belongs to the Reactor Kettle Category, meaning it can work as an external heat transfer unit for jacketed or non jacketed process vessels. Heat transfer area is given as both calculated and nominal values for practical selection. For a 159 mm shell with 14 tubes of 1500 mm length, calculated area is 1.62 m² and nominal is 1.5 m². For a 400 mm shell with 110 tubes of 6000 mm length, calculated area reaches 55.80 m² and nominal is 50 m². The unit supports single pass flow. When process side velocity is set at 0.5 m/s, water side flowrate in m³/hr is listed for each shell size. A 219 mm…
