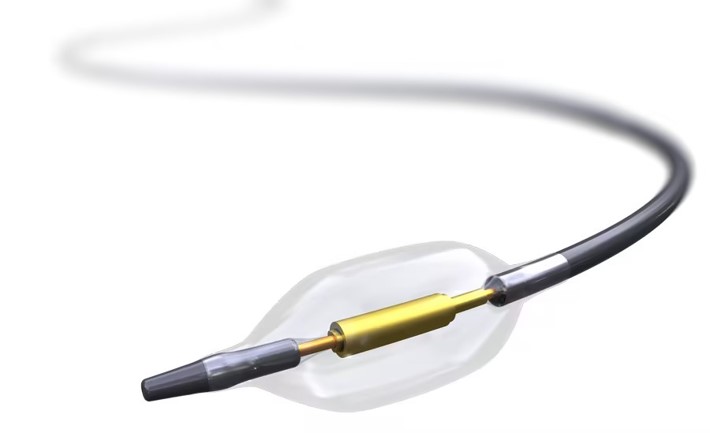

L6mm Ultrasound Ablation Transducer for Medical Use

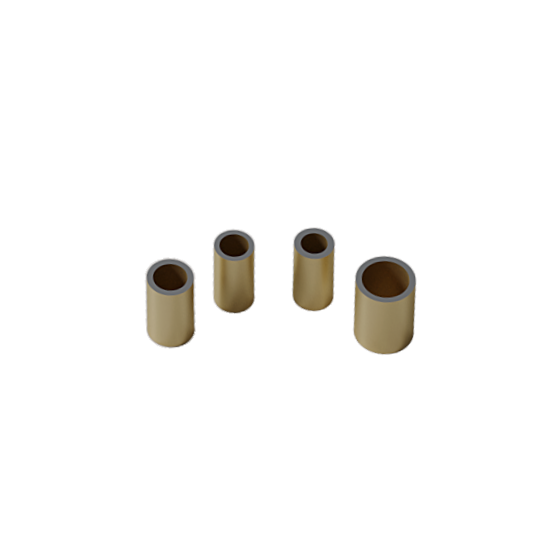

Ultra-precision ID/OD grinding — 2 µm roundness accuracy Custom-built Inner-electrode Process Outer-electrode gold-plating process Partitioned outer-electrode patterning capability High-energy, low-loss, high-Curie temperature High acoustic field uniformity End-to-end assembly of transducers, balloons, catheters, handles, and more.   Shape OD （mm） ID （mm） L （mm） Dielectric Loss Fs（MHz） Fp（MHz） PZT Material Electrode Tubular 1.5 1 6 0.30% 8 10 P8 Au Tubular 1.7 1.2 6 0.30% 7 9 P8 Au Tubular 1.8 1.3 6 0.30% 6 8 P8 Au
