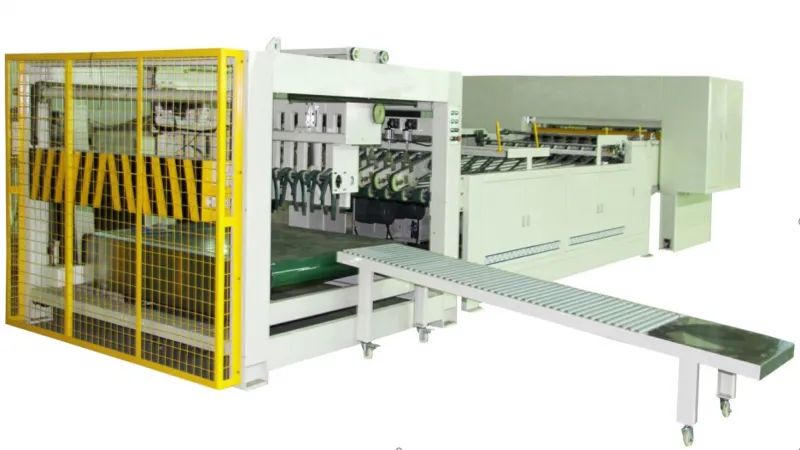

2PLY CORRUGATED BOARD PRODUCTION LINE

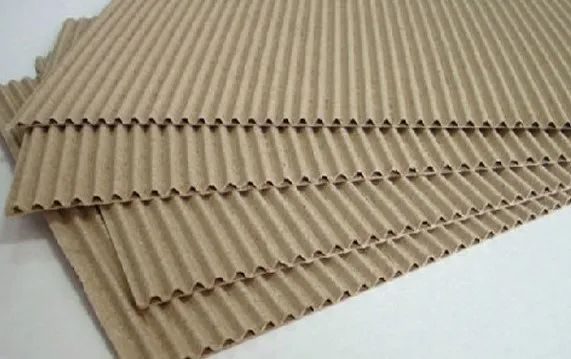

This is the main machine used at corrugated box or offset print pack factory, to make the 2ply corrugated board (single face sheet), and then used to do lamination with printed paperboard.   2 layers Corrugated Board Production Line: Cassette Type Single Facer 2 layers Corrugated Board Production Line: Fixed or Module Type Single Facer ( 2 units)   Technical Data: Size (mm) 1800 2200 2500 Production speed (m/min) 150 200 250 Flute type N,G,F,E,B,C,A N,G,F,E,B,C,A N,G,F,E,B,C,A Daily output (m²) 162,000 297,000 337,500  Machine Layout (m) (L*W*H) 20~30x10x5 20~30x10x5 20~30x10x5 Suggest Factory Land (m²） 3000~5000 3000~5000 3000~5000 Steam consumption 1000kg/h(1.1-1.2Mpa) 1000kg/h(1.1-1.2Mpa) 1000kg/h(1.1-1.2Mpa) Power supply ~150KW ,~380Vac, 50HZ, 3 phases 4 wires ~150KW ,~380Vac, 50HZ, 3 phases 4 wires ~150KW ,~380Vac, 50HZ, 3 phases 4 wires
