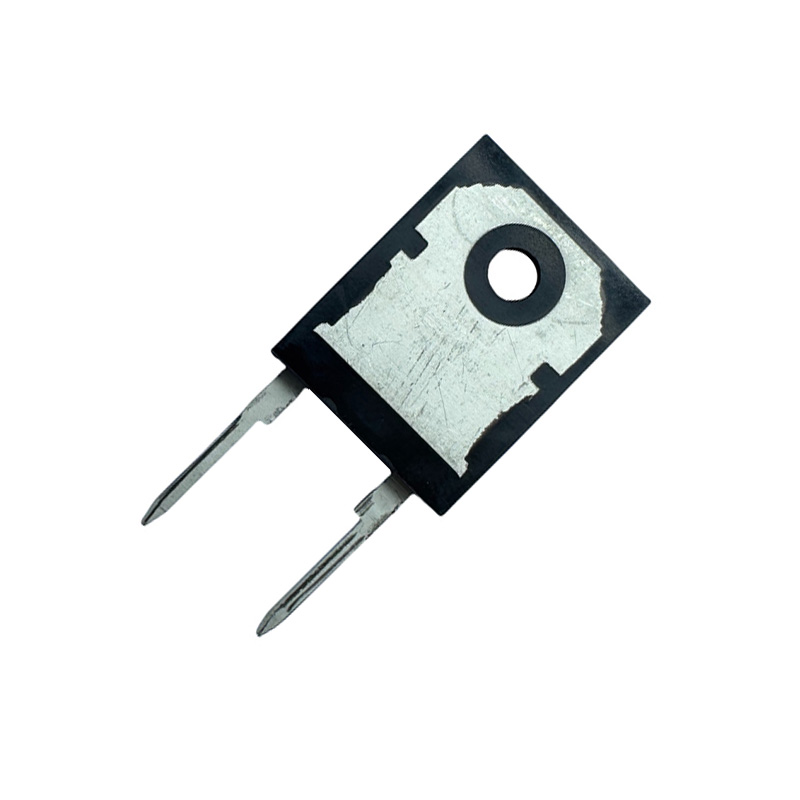

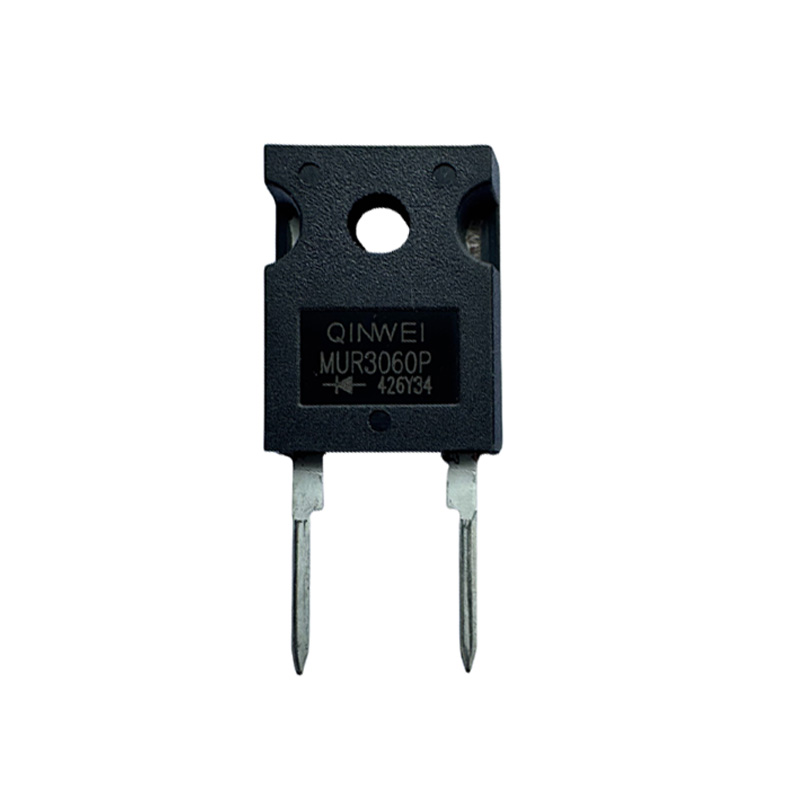

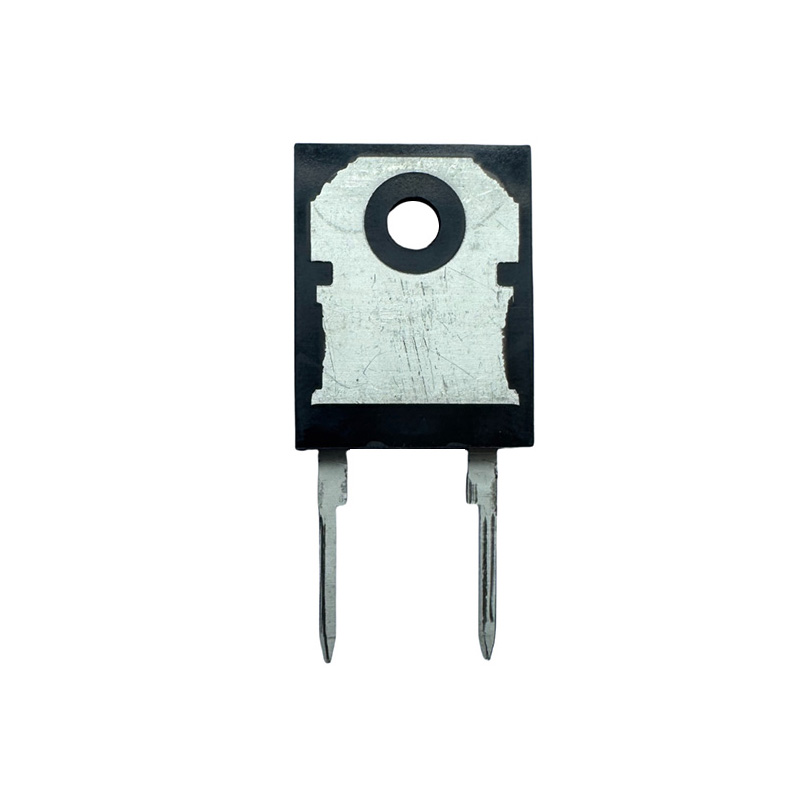

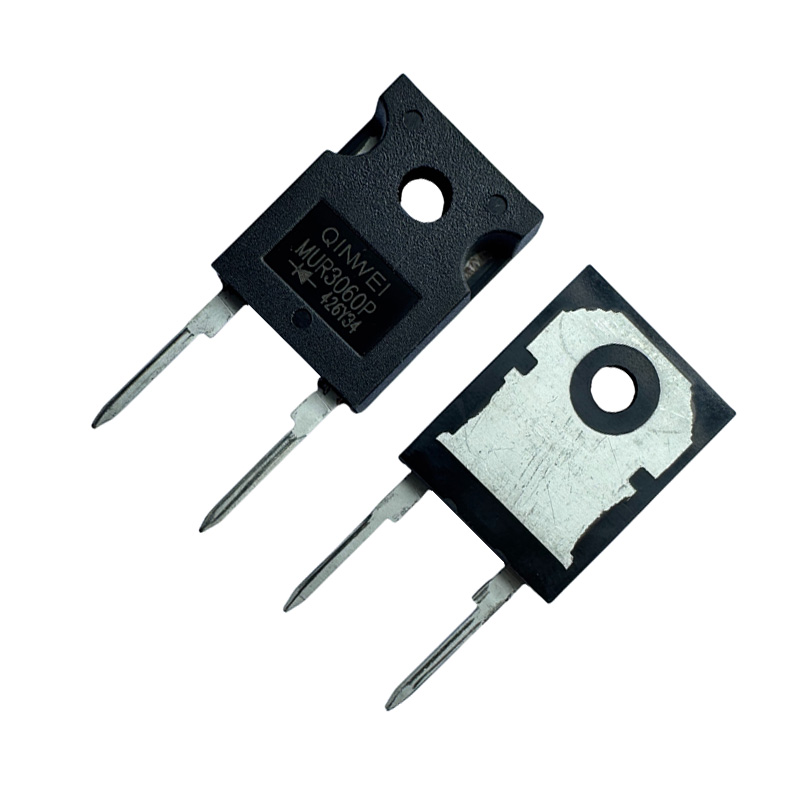

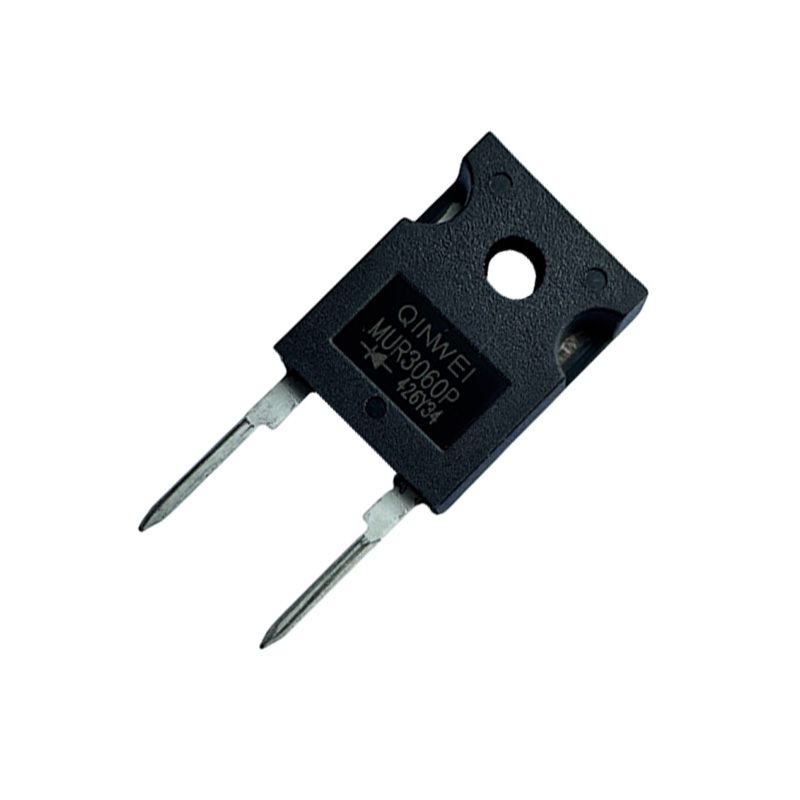

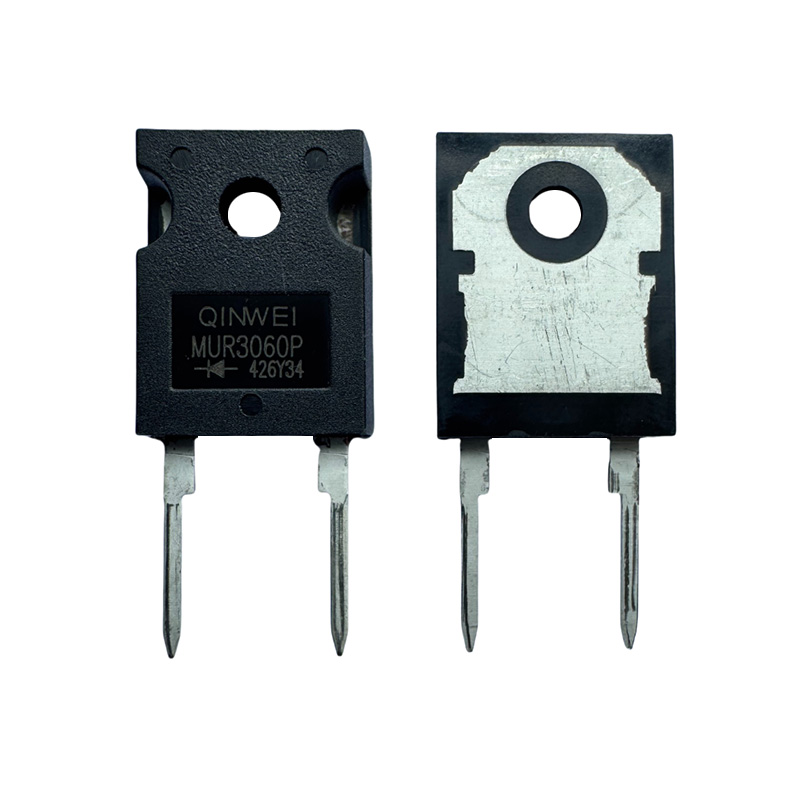

QINWEI 600V 30A MUR3060P Fast Recovery Diode

Semiconductor Devices Super Fast Recovery Diode   Features * Lower reverse leakage current * Low power consumption, high efficiency * High reliability * RoHS compliant product   Applications * Power Factor Corrector (PFC) * Switching Mode Power Supply (SMPS) * Other Electronic Circuits   Package and outline   TO-247-2L                                                              Maximum Ratings (Tc=25℃)   Parameter Symbol Value Unit Peak Repetitive Reverse VoltageWorking Peak Reverse VoltageDC Blocking Voltage VRRMVRWMVR 600 V Average Rectified Forward Current(Rated VR, TC = 125°C) Per Diode                                        Per Device IF(AV)                   15         30          A Surge non repetitive forward current   (tp = 8.3 ms sinusoidal) IFSM 200 A Storage Temperature Range Tstg -55~+150 ℃ Operating Junction Temperature TJ 150 ℃   Electrical Characteristics Parameter Symbol Max Unit  Instantaneous Forward Voltage (Note 1)@ IF = 15A, TC…
