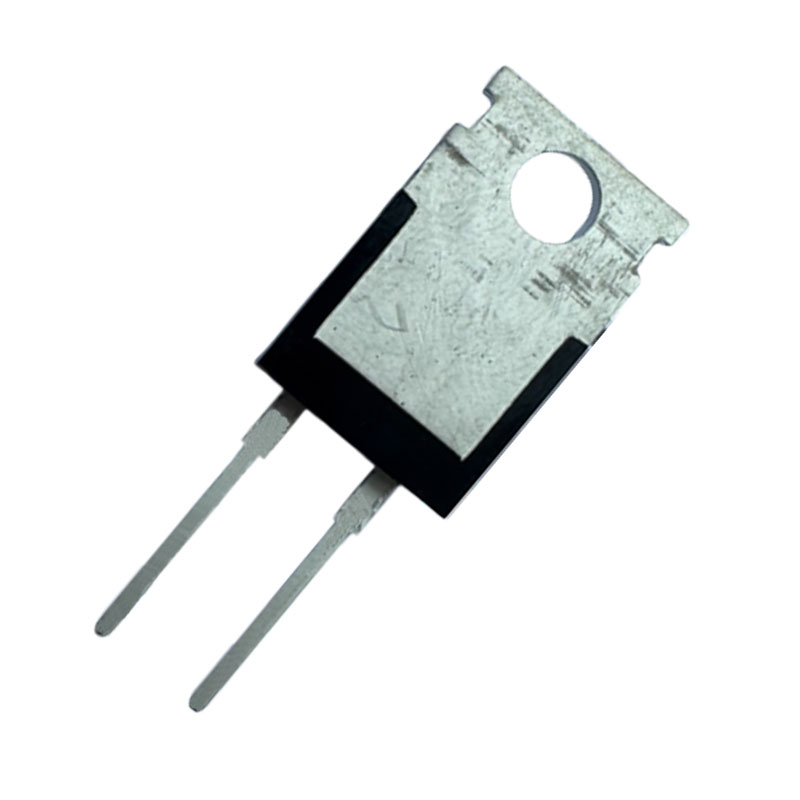

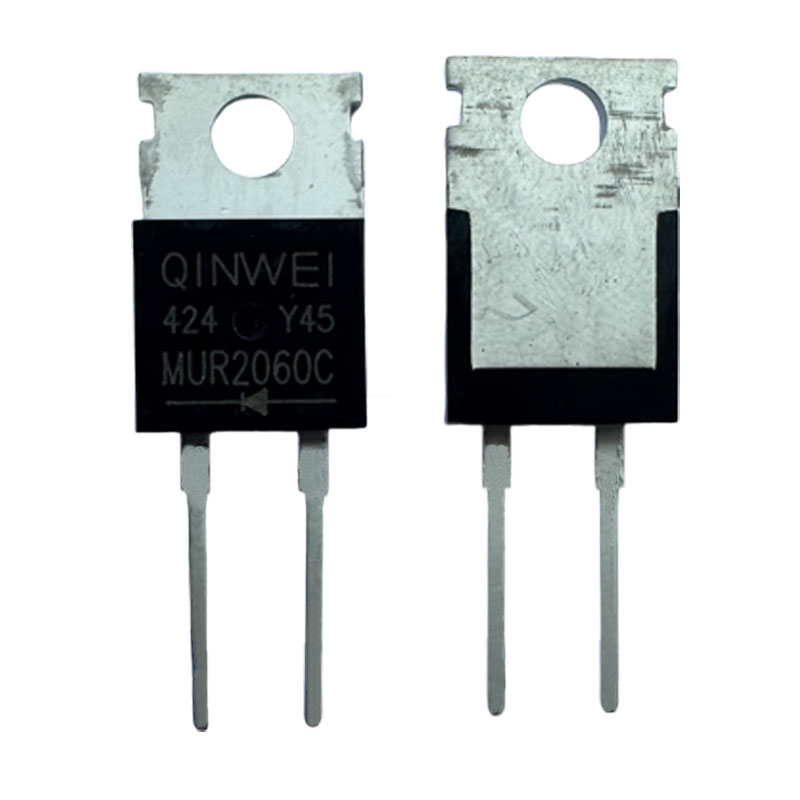

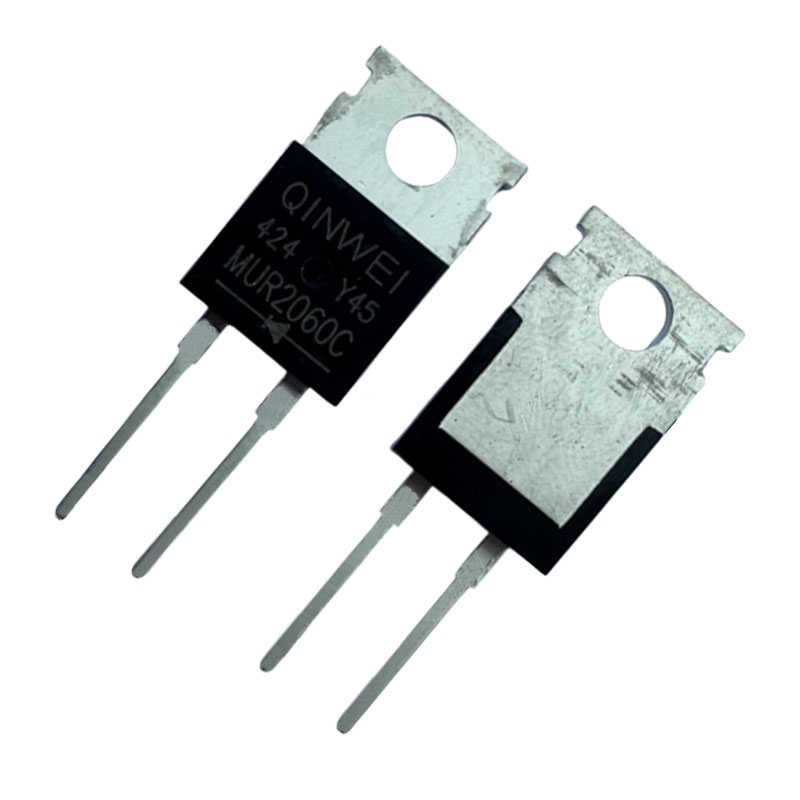

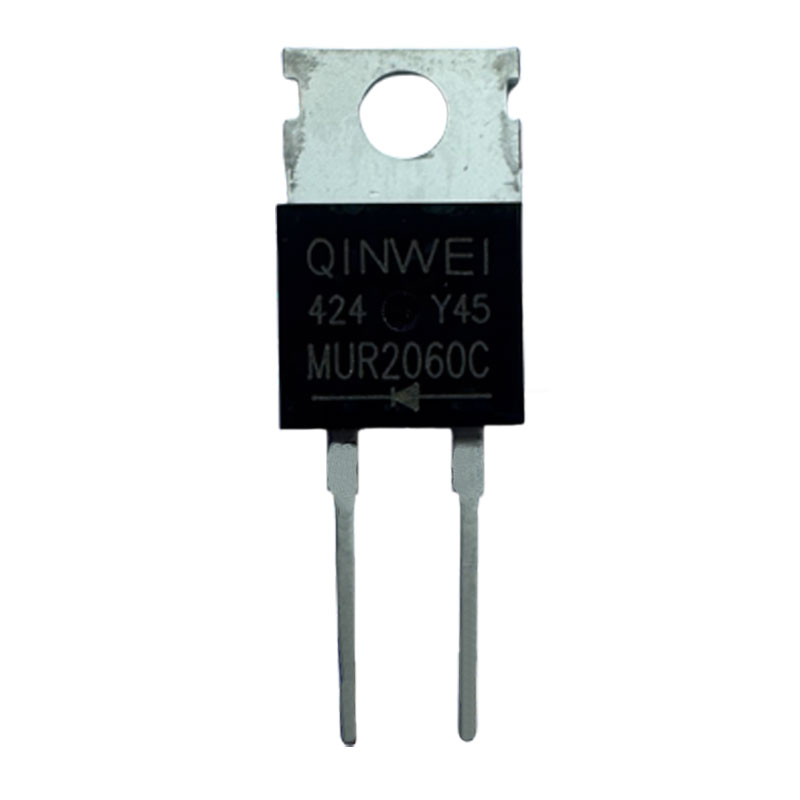

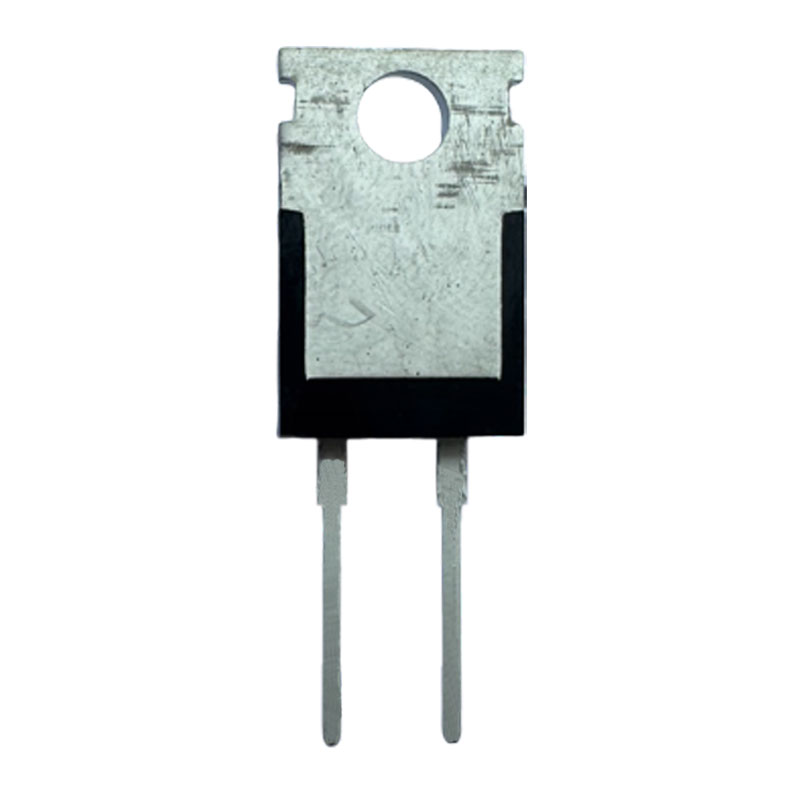

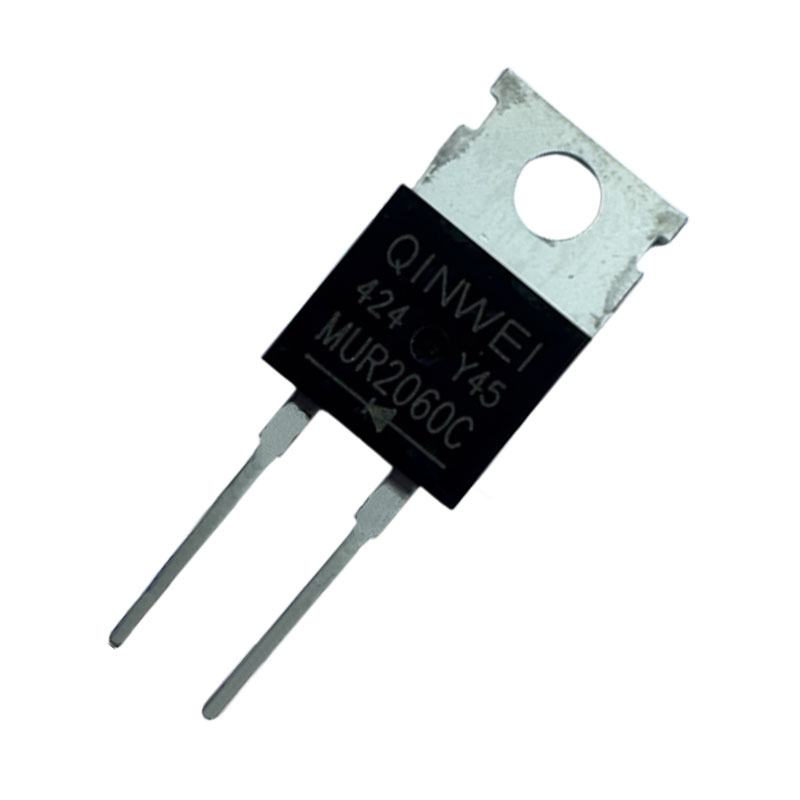

QINWEI MUR2060C Fast Recovery Diode with 600V 20A

Semiconductor Devices -- Discrete Devices 600V 20A Fast Recovery Diode   Features * Lower reverse leakage current * Low power consumption, high efficiency * Ultra-short reverse recovery time * High reliability * Moderate forward voltage drop   Applications * Power Factor Corrector (PFC) * Switching Mode Power Supply (SMPS) * Industrial control systems * Other Electronic Circuits   Package and outline   TO-220-2L                                                                      Maximum Ratings (Tc=25℃)   Parameter Symbol Value Unit Peak Repetitive Reverse VoltageWorking Peak Reverse VoltageDC Blocking Voltage VRRMVRWMVR 600 V Average Rectified Forward Current IF(AV) 20 A Surge non repetitive forward current   (tp = 8.3 ms sinusoidal) IFSM 200 A Storage Temperature Range Tstg -55~+150 ℃ Operating Junction Temperature TJ 150 ℃   Electrical Characteristics   Parameter Symbol Max Unit  Instantaneous Forward Voltage (Note 1)@ IF = 20A, TC = 25°C@ IF = 20A,…
