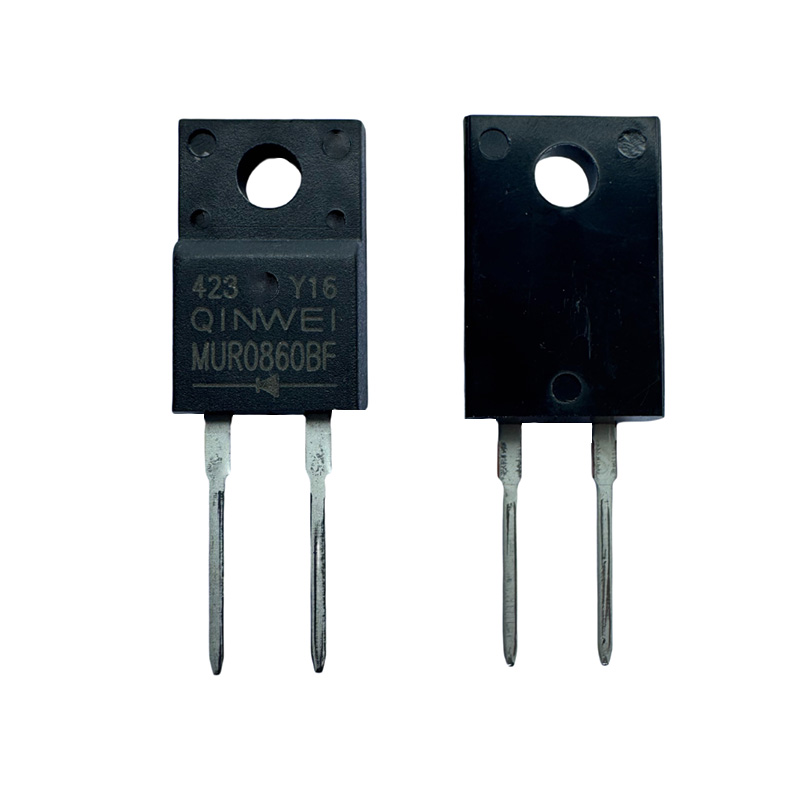

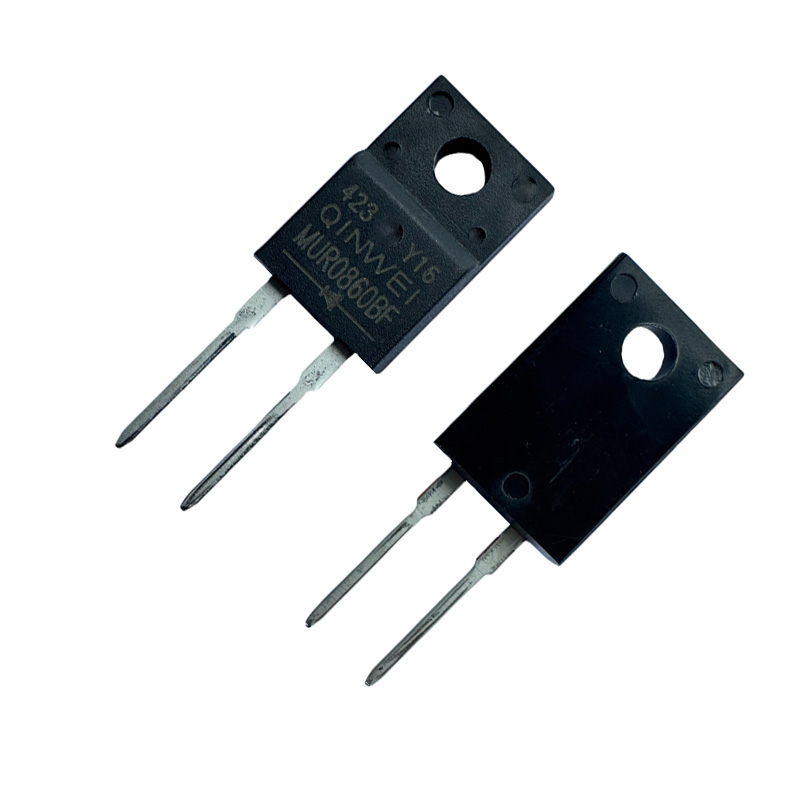

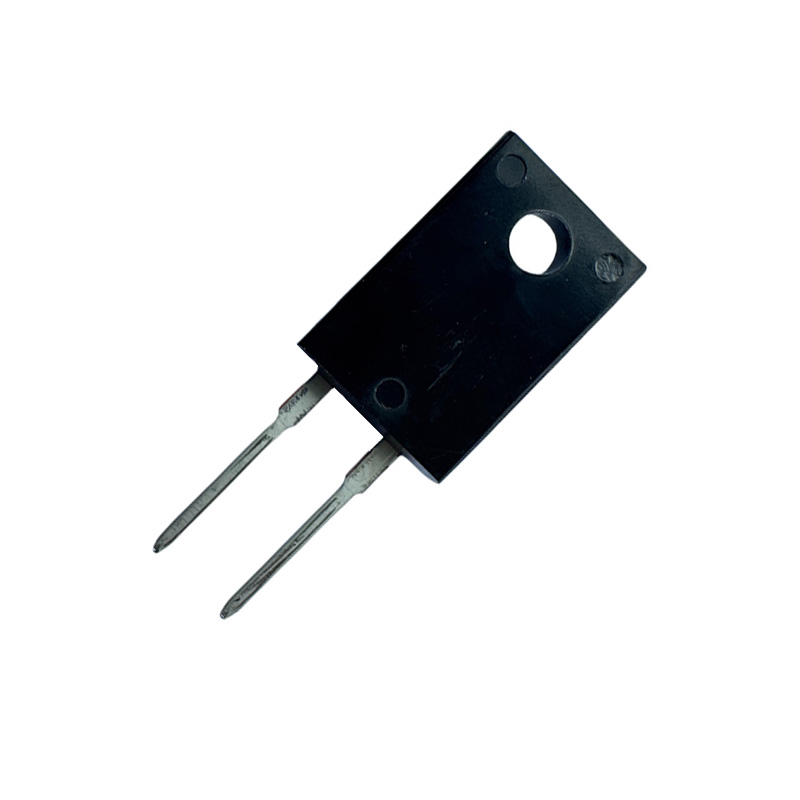

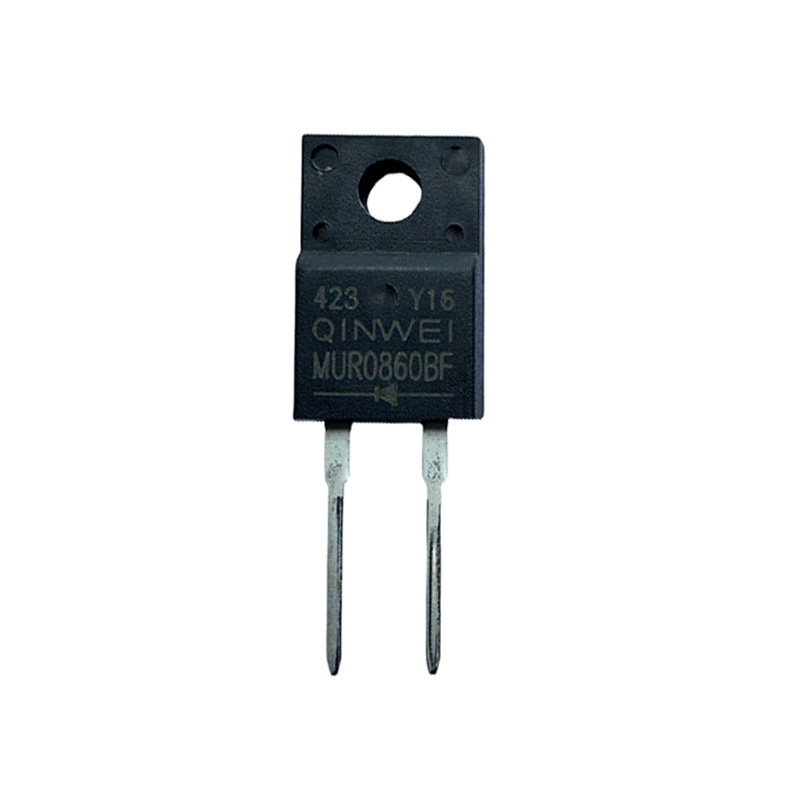

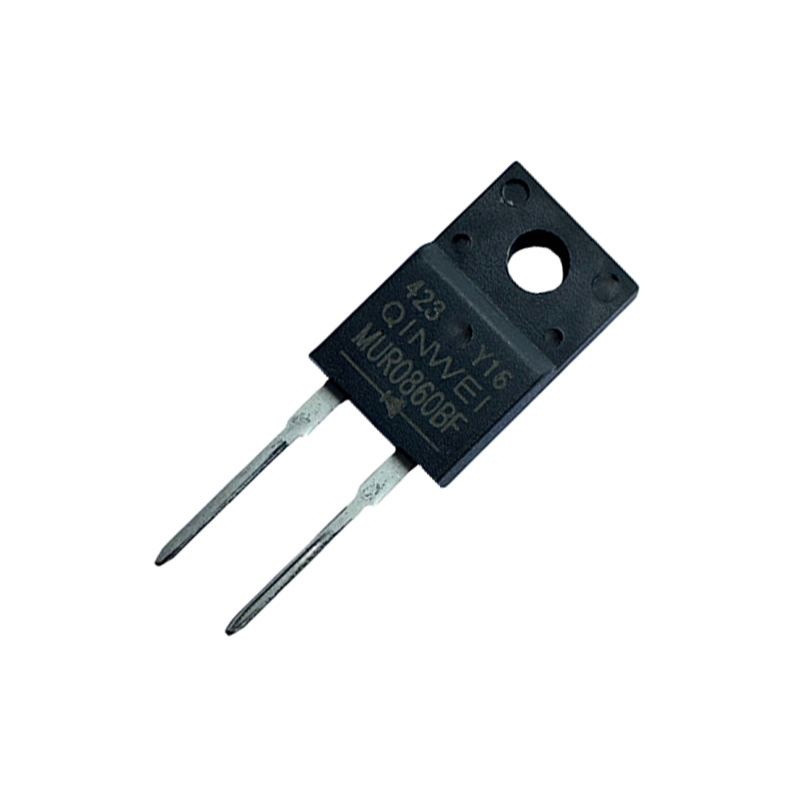

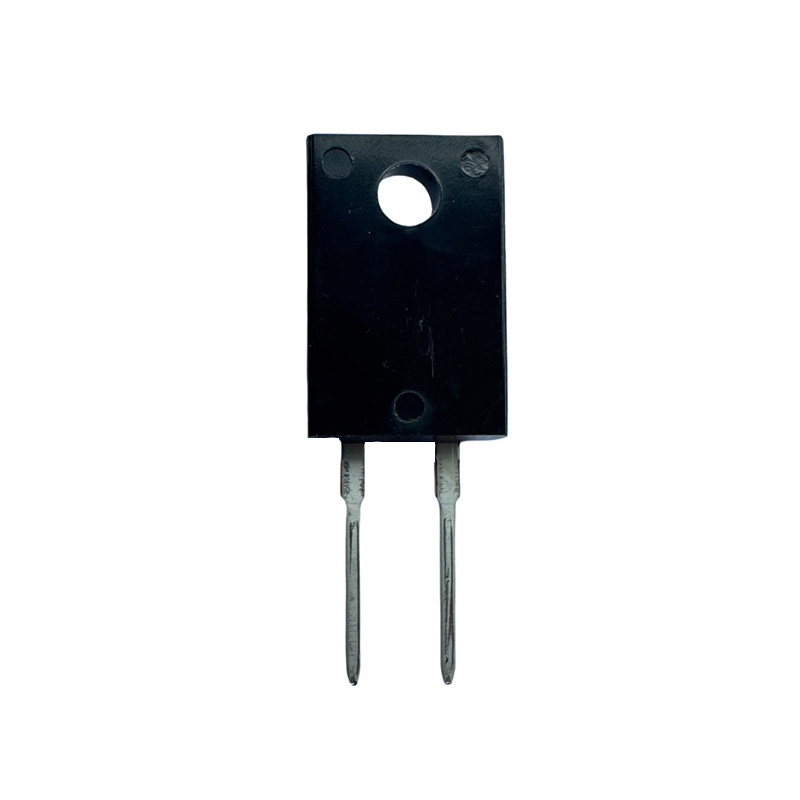

QINWEI 600V 8A Fast Recovery Diodes MUR0860BF

Semiconductor Devices(Discrete Devices) 600V 8A Fast Recovery Diode   Features * Lower reverse leakage current * Low power consumption, high efficiency * High reverse voltage capability * Low switching noise * RoHS compliant product   Applications * Power Factor Corrector (PFC) * Switching Mode Power Supply (SMPS) * Other Electronic Circuits   Package and Outline   TO-220F-2L                                                                                         Maximum Ratings（Tc=25℃）   Parameter   Symbol   Value   Unit   Peak Repetitive Reverse VoltageWorking Peak Reverse VoltageDC Blocking Voltage VRRMVRWMVR 600 V Average Rectified Forward Current IF(AV) 8 A Surge non repetitive forward current   (tp = 8.3 ms sinusoidal) IFSM 80 A Storage Temperature Range Tstg -55~+150 ℃ Operating Junction Temperature TJ 150 ℃     Electrical Characteristics   Parameter Symbol Max Unit  Instantaneous Forward Voltage (Note 1)@ IF = 8A, TC = 25°C@ IF =…
