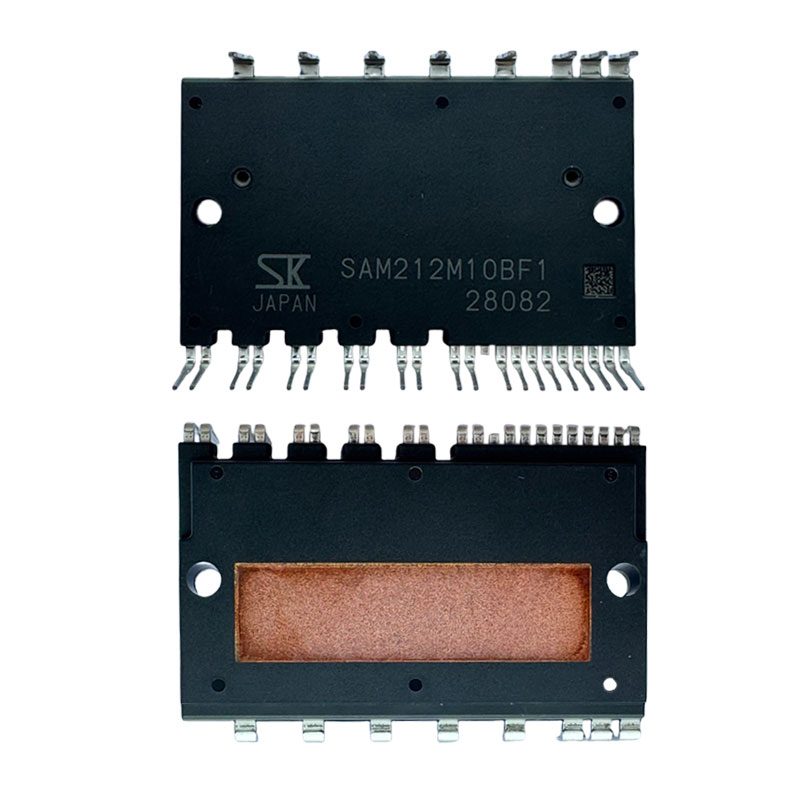

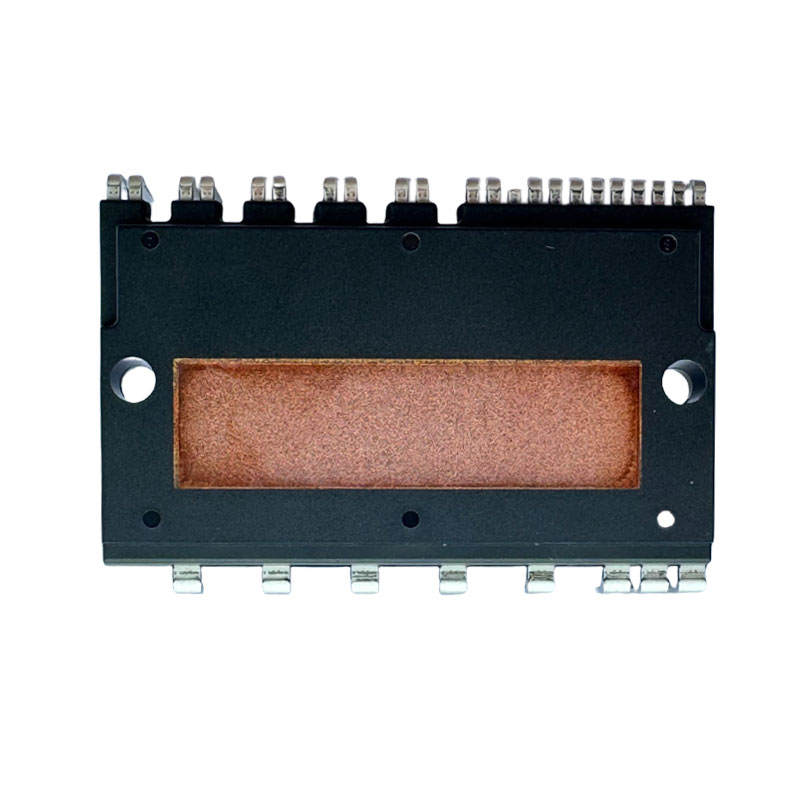

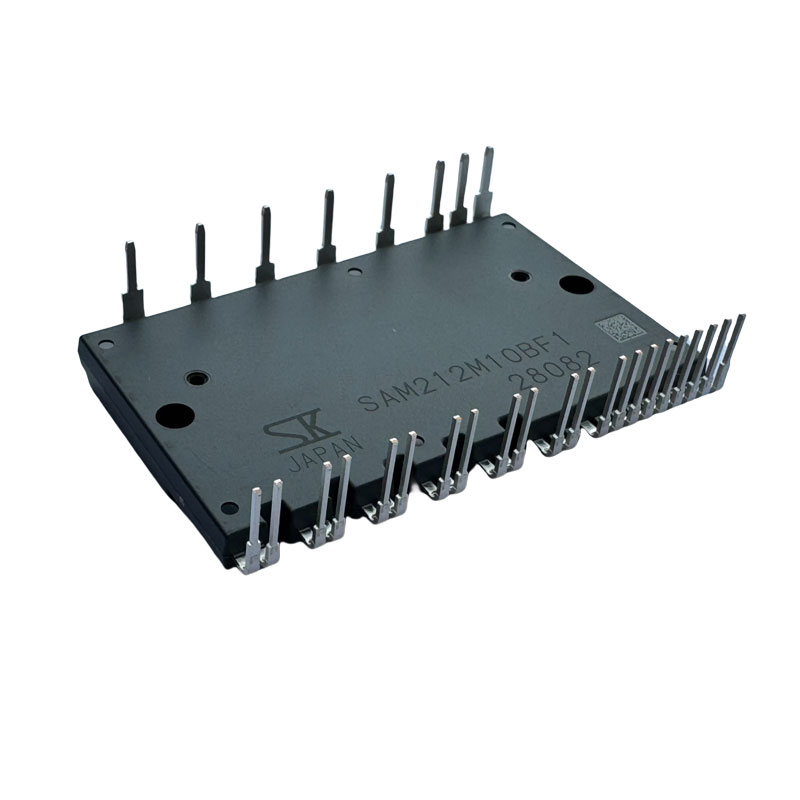

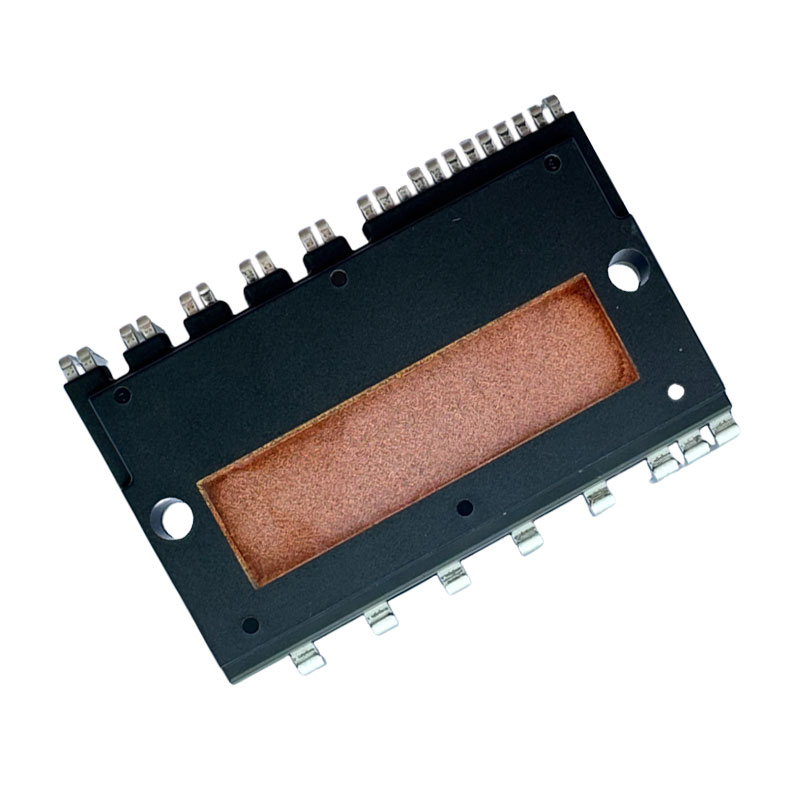

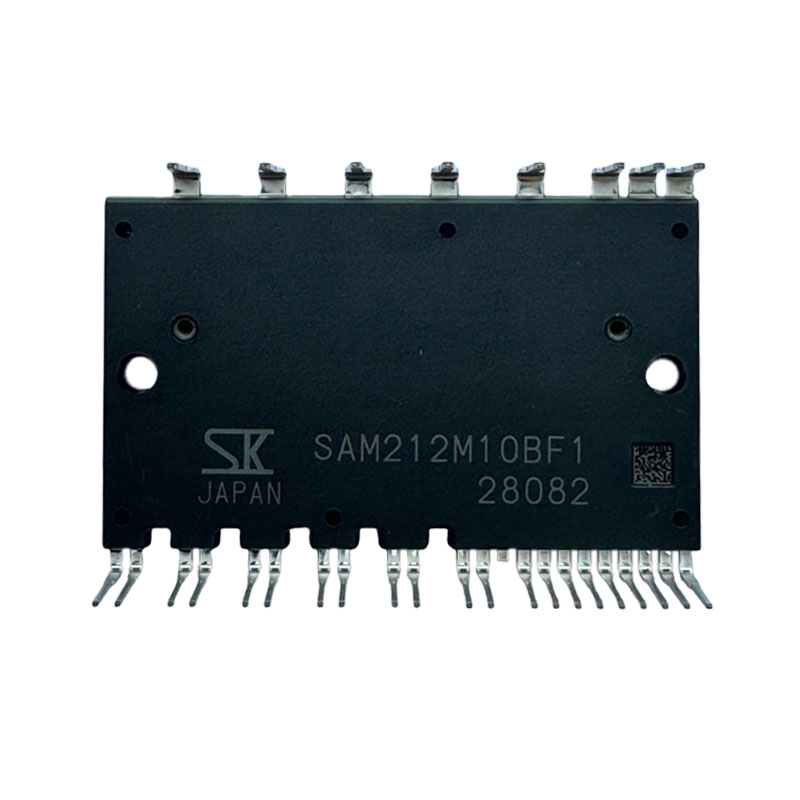

SAM212M10BF1 1200V 10A 3-Phase Motor Driver Module

1200V 10A Intelligent Power Modules(IPM) IPM Module -- SAM212M10BF1   Description The SAM212M10BF1 is a 3-phase brushless motor driver in which output transistors, a pre-drive circuit, bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. The IC is suitable for driving 3-phase motor of the units such as industrial equipment.   Features ● Pb-free (RoHS Compliant) ● Isolation Voltage: 2500 V (for 1 min)  UL-recognized Component (File No.: E118037) ● Built-in Thermistor ● Built-in Bootstrap Diodes ● CMOS-compatible Input (3.3 V or 5 V) ● Fault Signal Output at Protection Activation ● Shutdown Signal Input ● Adjustable OCP Hold Time ● Protection Functions    Undervoltage Lockout for Power Supply    VBx Pin (UVLO_VBx): Auto-restart    VCCL Pin (UVLO_VCCL): Auto-restart    Overcurrent Protection (OCP): Auto-restart   Specifications ● Breakdown Voltage: 1200 V ● Output Current: 10 A   Applications For 3-phase motor dri…
