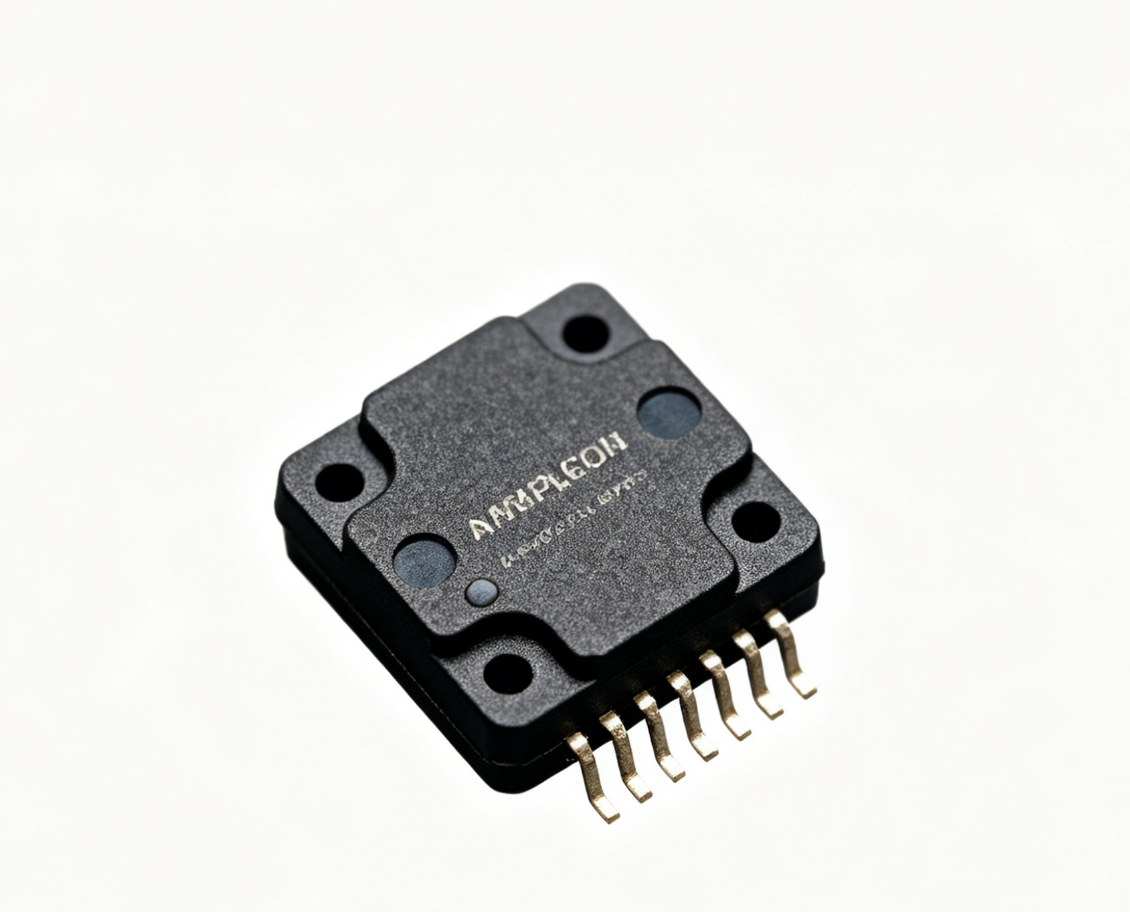

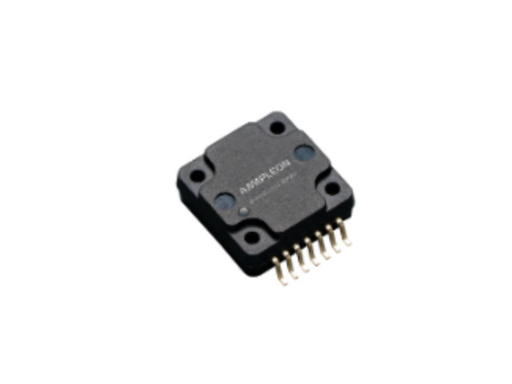

BLM10D2327-60ABG RF power MMIC

BLM10D2327-60ABG LDMOS 2-stage integrated Doherty MMIC Model: BLM10D2327-60ABG   Manufacturer: Ampleon   Product Type: 10th Generation 28V LDMOS 2-stage Fully Integrated Doherty MMIC RF Power Amplifier, optimized for 2.3–2.7GHz 5G NR broadband base station applications   Key Specifications Parameter Specification Frequency Range 2300 MHz ~ 2700 MHz (Covers 5G NR n41/n78 full band) Peak Output Power 60W Continuous Wave (CW) Typical Power Gain 25.5 dB Typical Drain Efficiency 52% (Doherty linear operation mode) Supply Voltage 28V nominal Quiescent Current 150 mA typical Package Type SMT LGA package with exposed thermal pad Port Impedance 50Ω internally matched input / output Architecture Fully integrated Doherty with built-in splitter, combiner, carrier and peaking amplifier paths Operating Temperature -40℃ ~ +125℃   Features & Benefits   Adopts Ampleon 10th-generation LDMOS process with higher power density and better linearity, ideal for 5G high…
