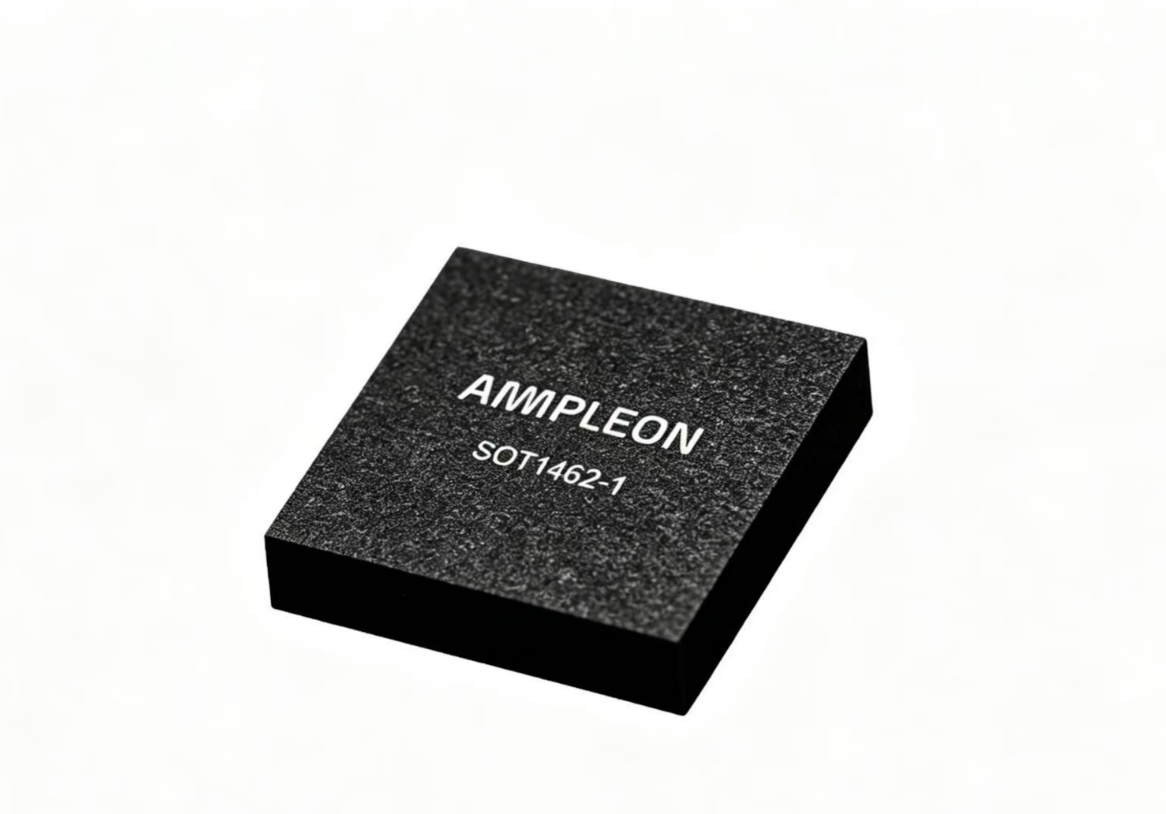

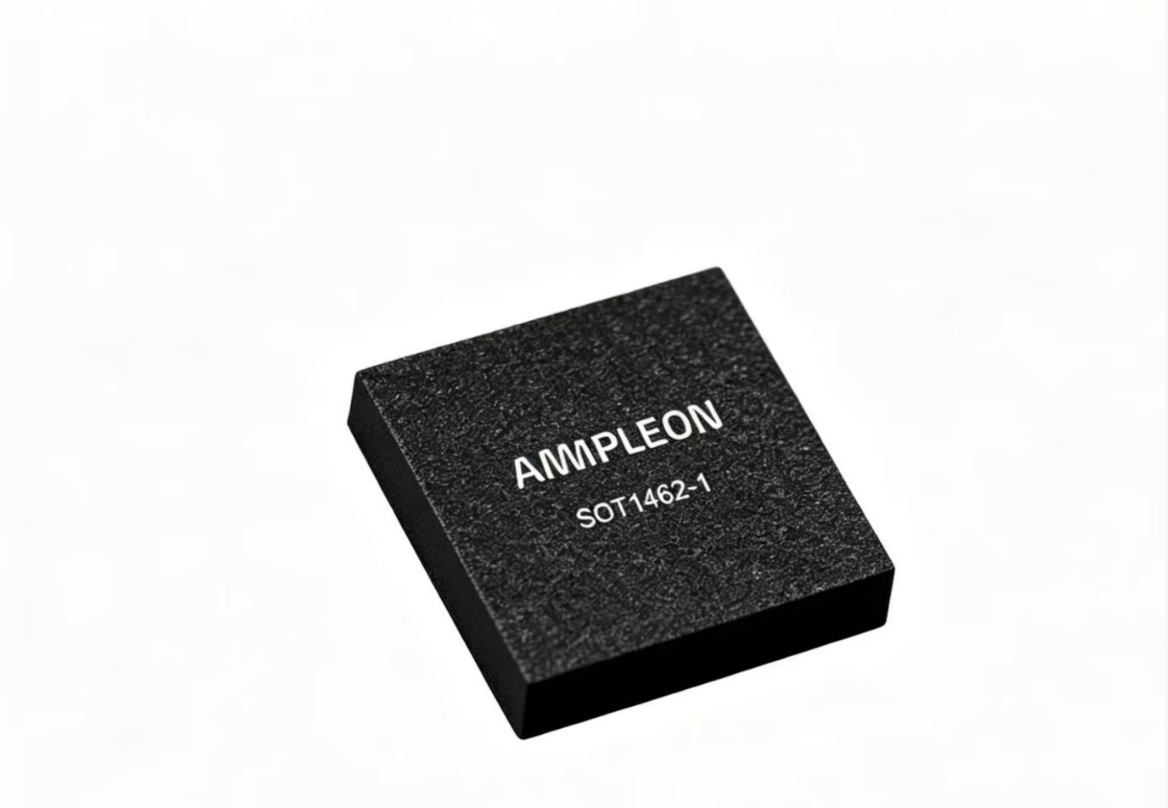

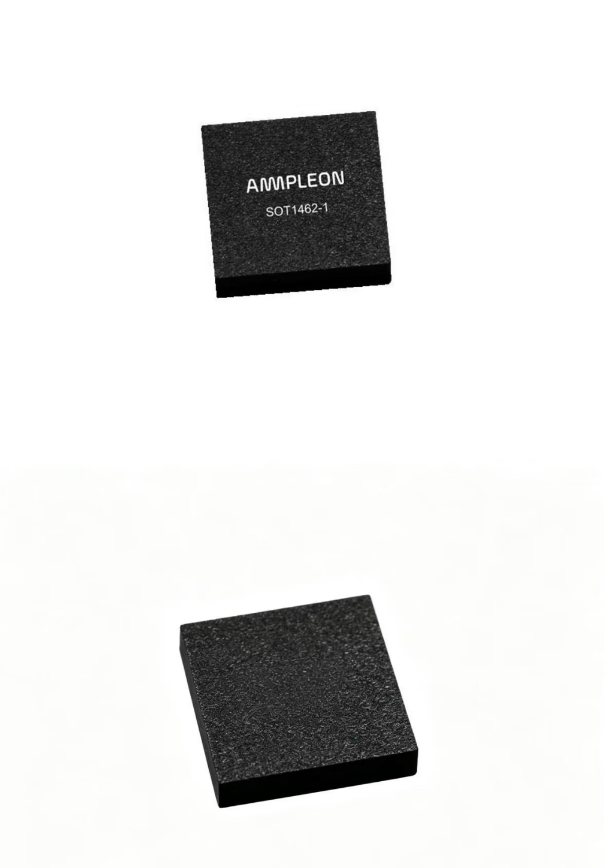

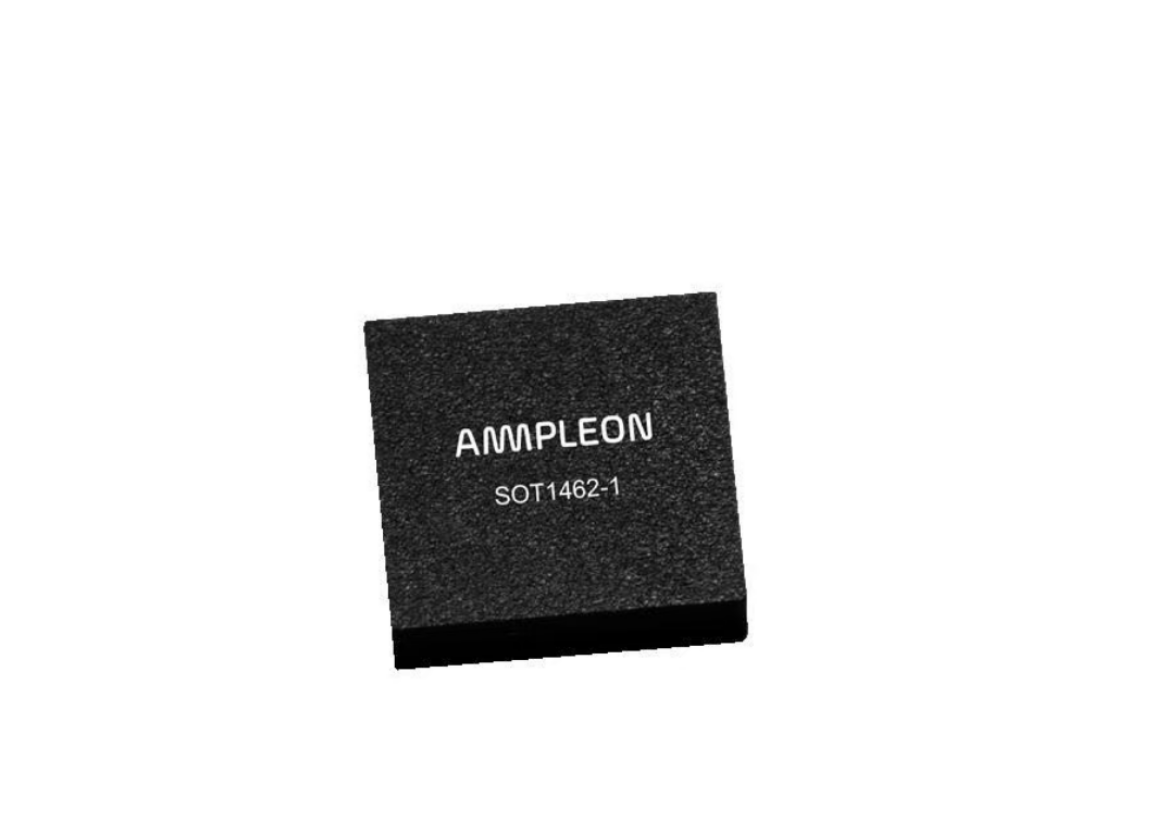

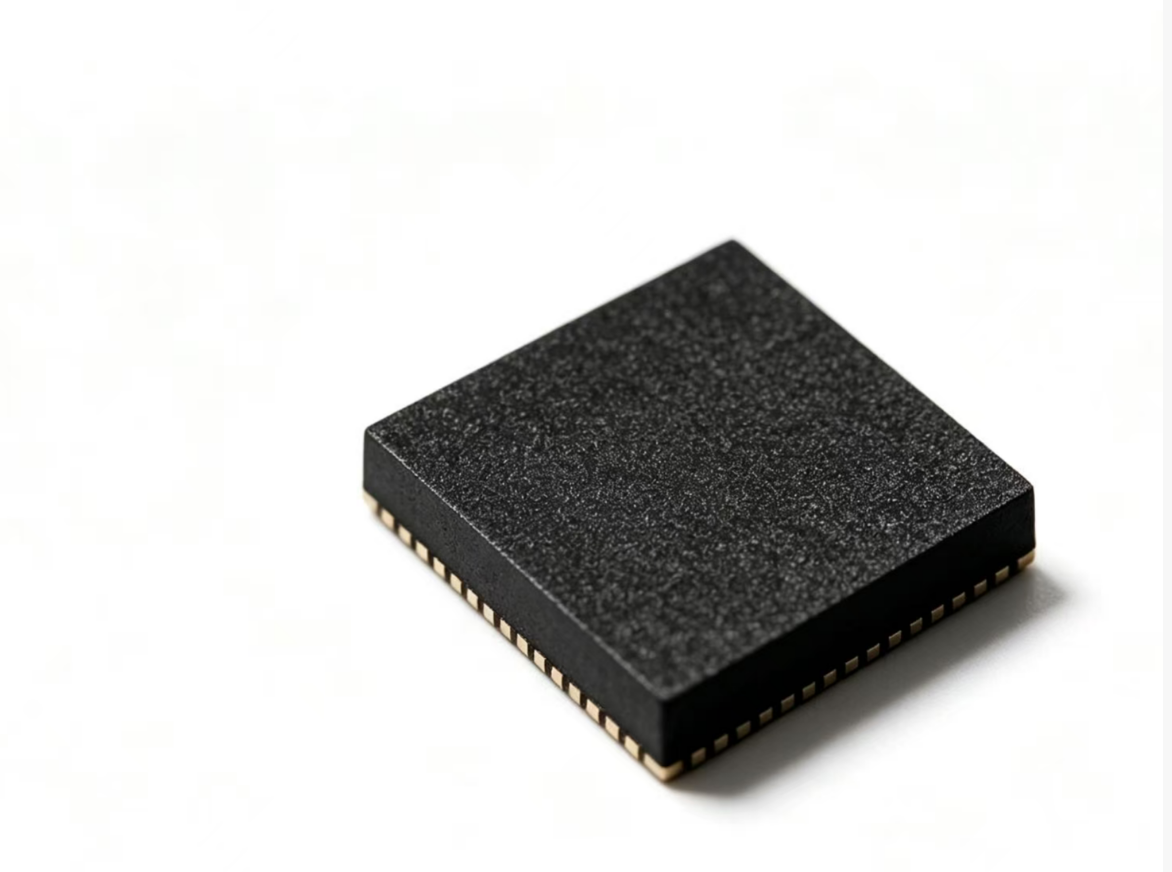

RF Power Amplifier B10G3336N16DL

B10G3336N16DL is a 2-Stage Doherty MMIC Model: B10G3336N16DL   Manufacturer: Ampleon   Product Type: 10th Generation 28V LDMOS 3-stage Fully Integrated Doherty MMIC RF Power Amplifier, optimized for 3.3–3.6GHz band (covering 5G NR n77/n78 high-frequency bands) small cell and general-purpose driver applications   Key Specifications Parameter Specification Frequency Range 3300 MHz ~ 3600 MHz (Precisely covers 5G NR n77/n78 high-frequency core bands) Peak Output Power 16W Continuous Wave (CW), in Doherty Configuration (42.5dBm typical, up to 43dBm at 28V supply) Typical Power Gain 35 dB (at 28V supply, 33dBm average output power, 3450MHz) Typical Drain Efficiency 35% (at 10dB OBO, 1-carrier W-CDMA signal, PAR=9.9dB, 3450MHz) Supply Voltage 26V/28V nominal, Maximum Rated Drain-Source Breakdown Voltage 65V Quiescent Current 30 mA (carrier path), independent biasing for peaking path (VGSq(peak)=VGSq(carrier)-0.4V) Package Type LGA-7x7-20-2, 7x7mm leadless thermal enha…
