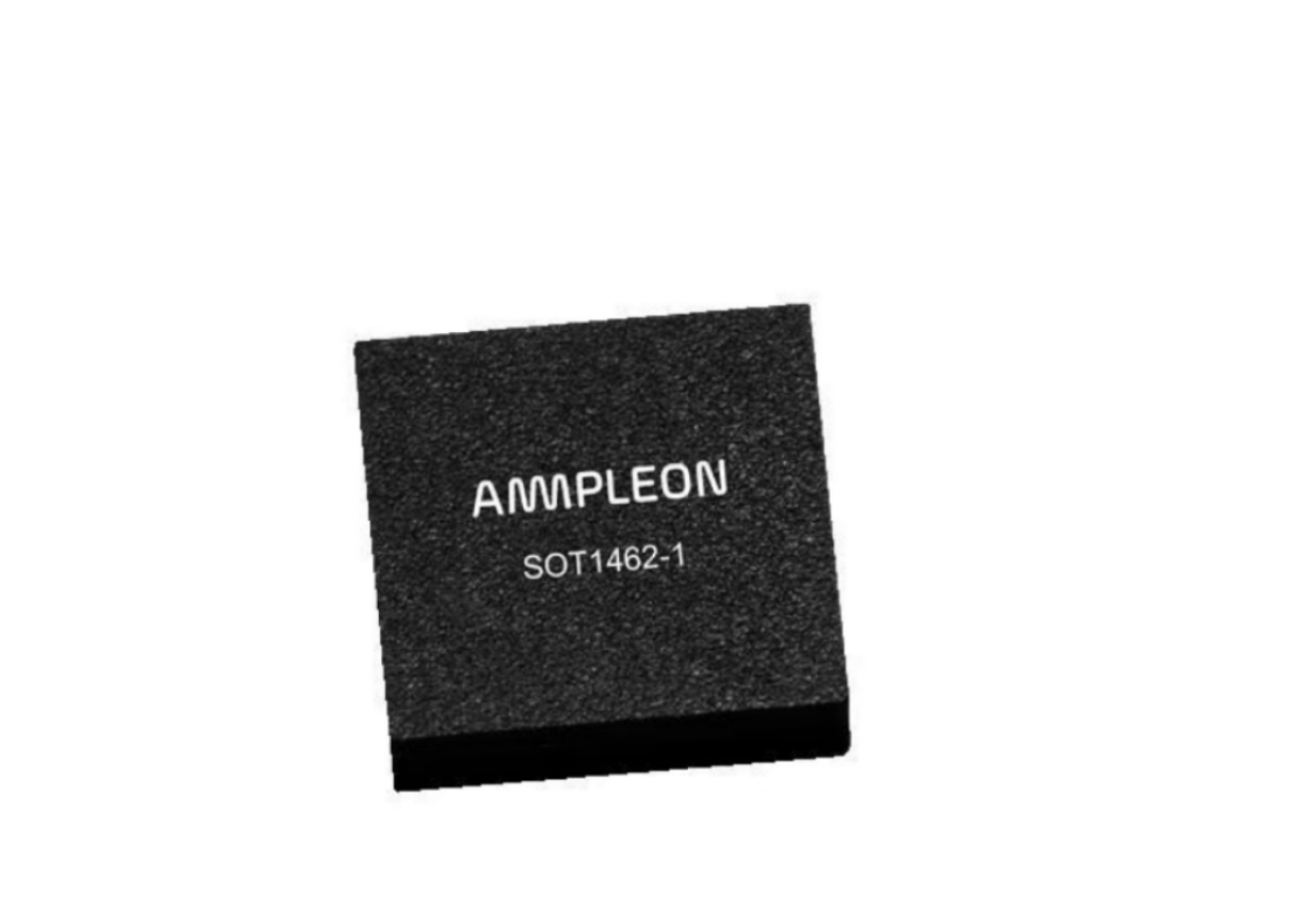

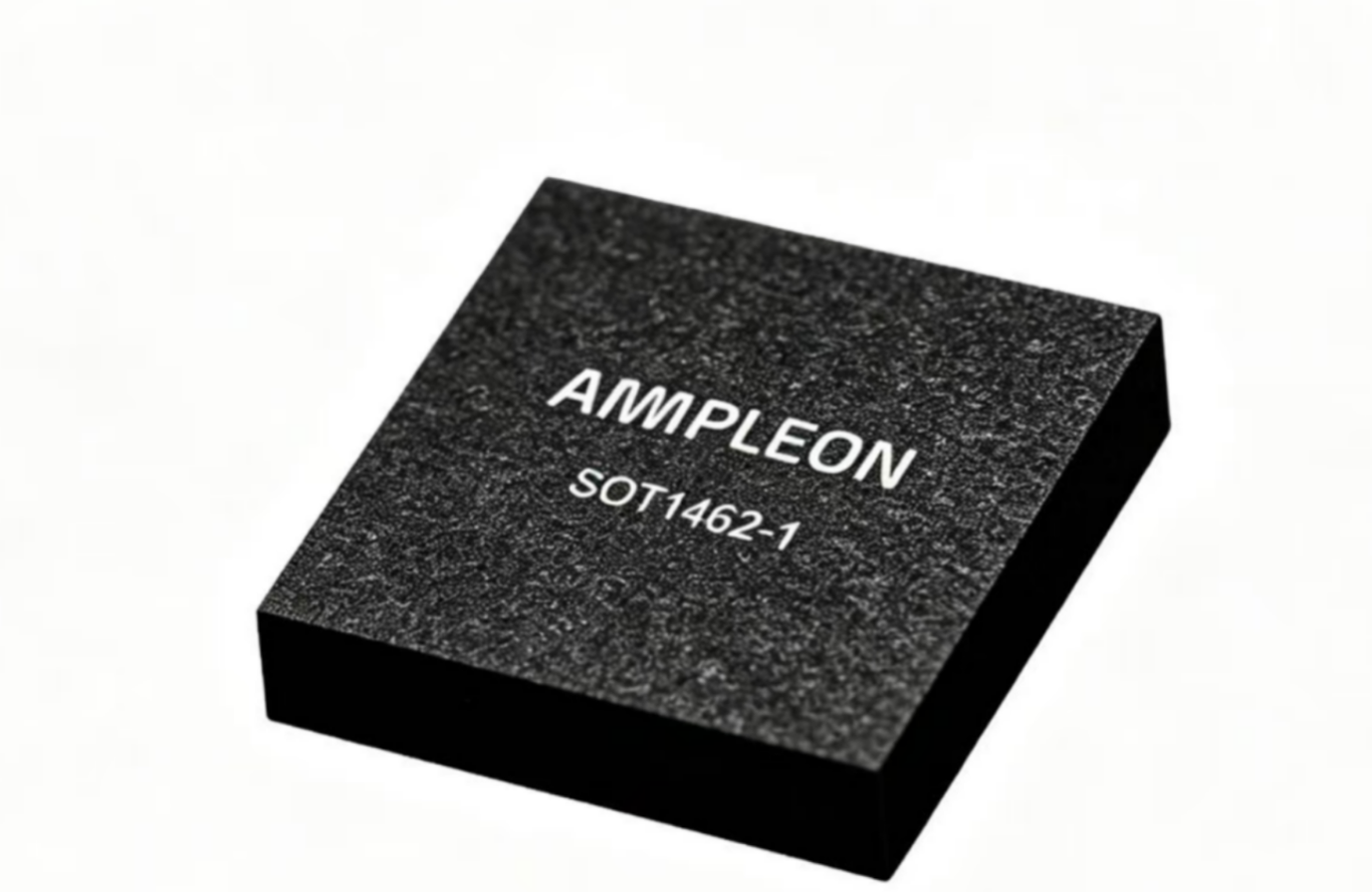

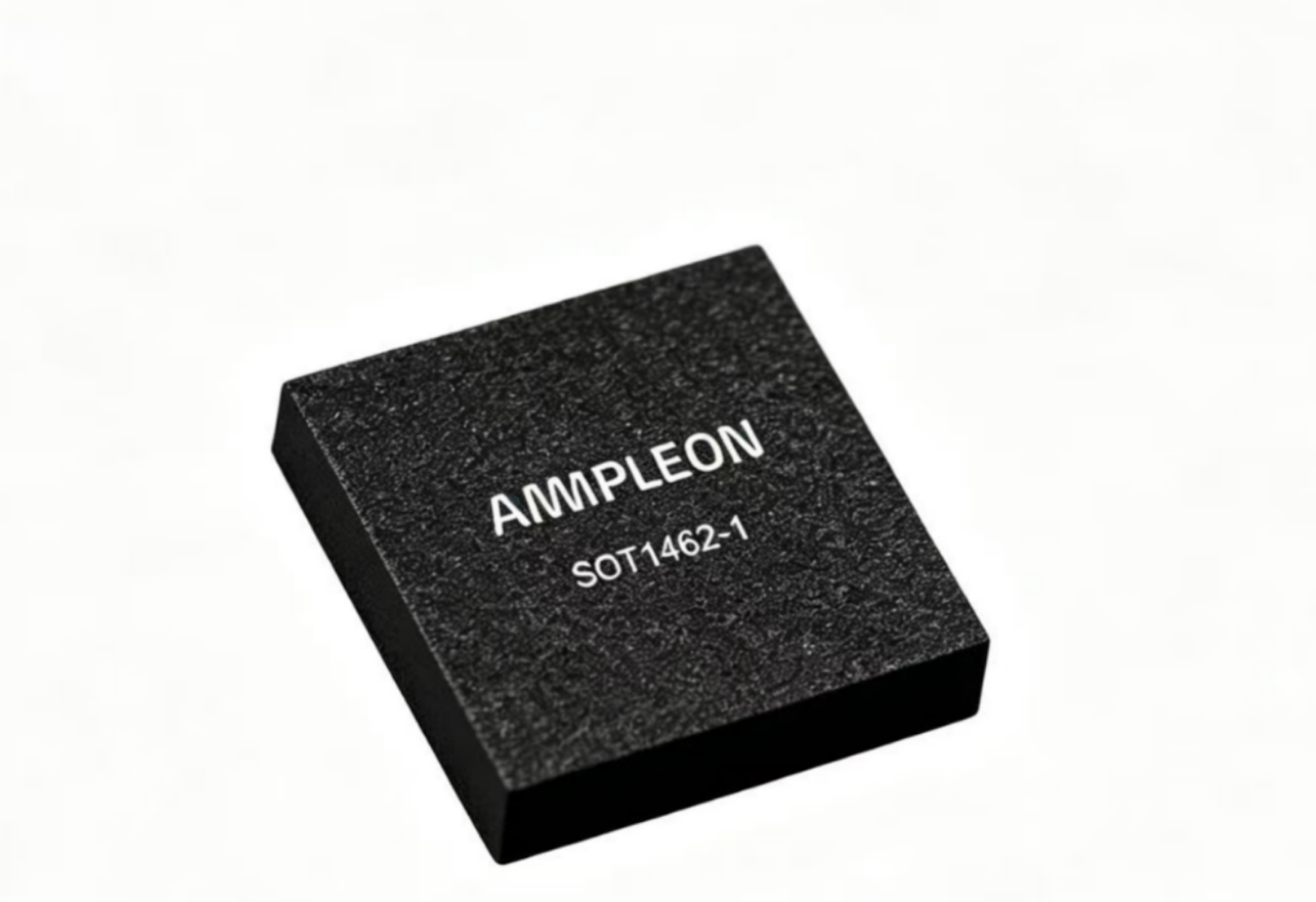

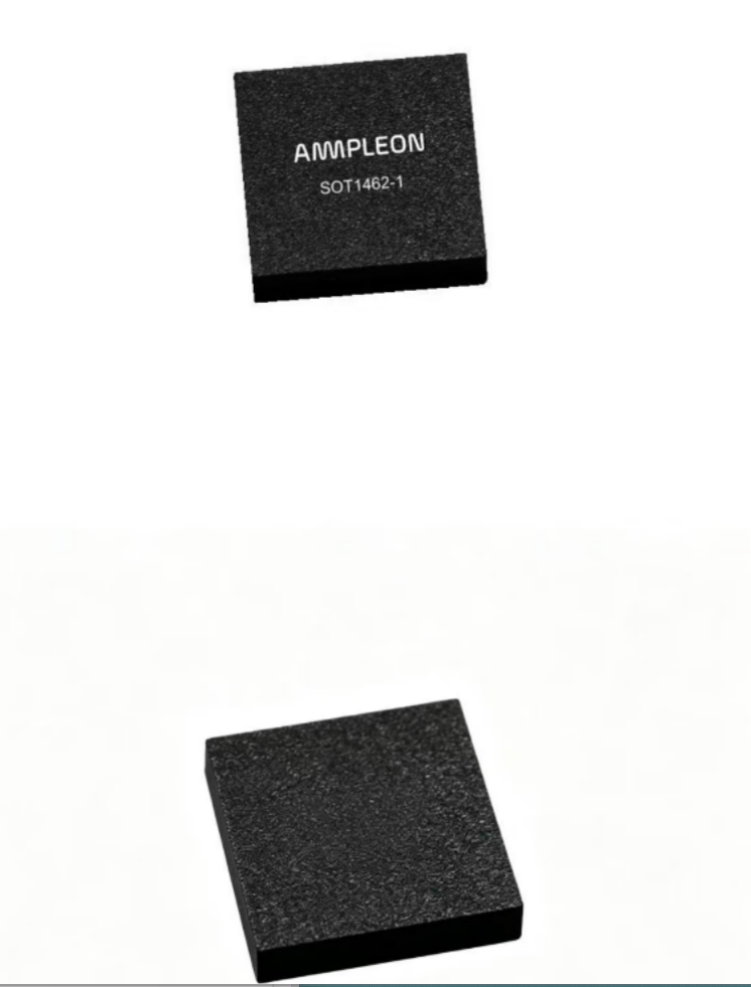

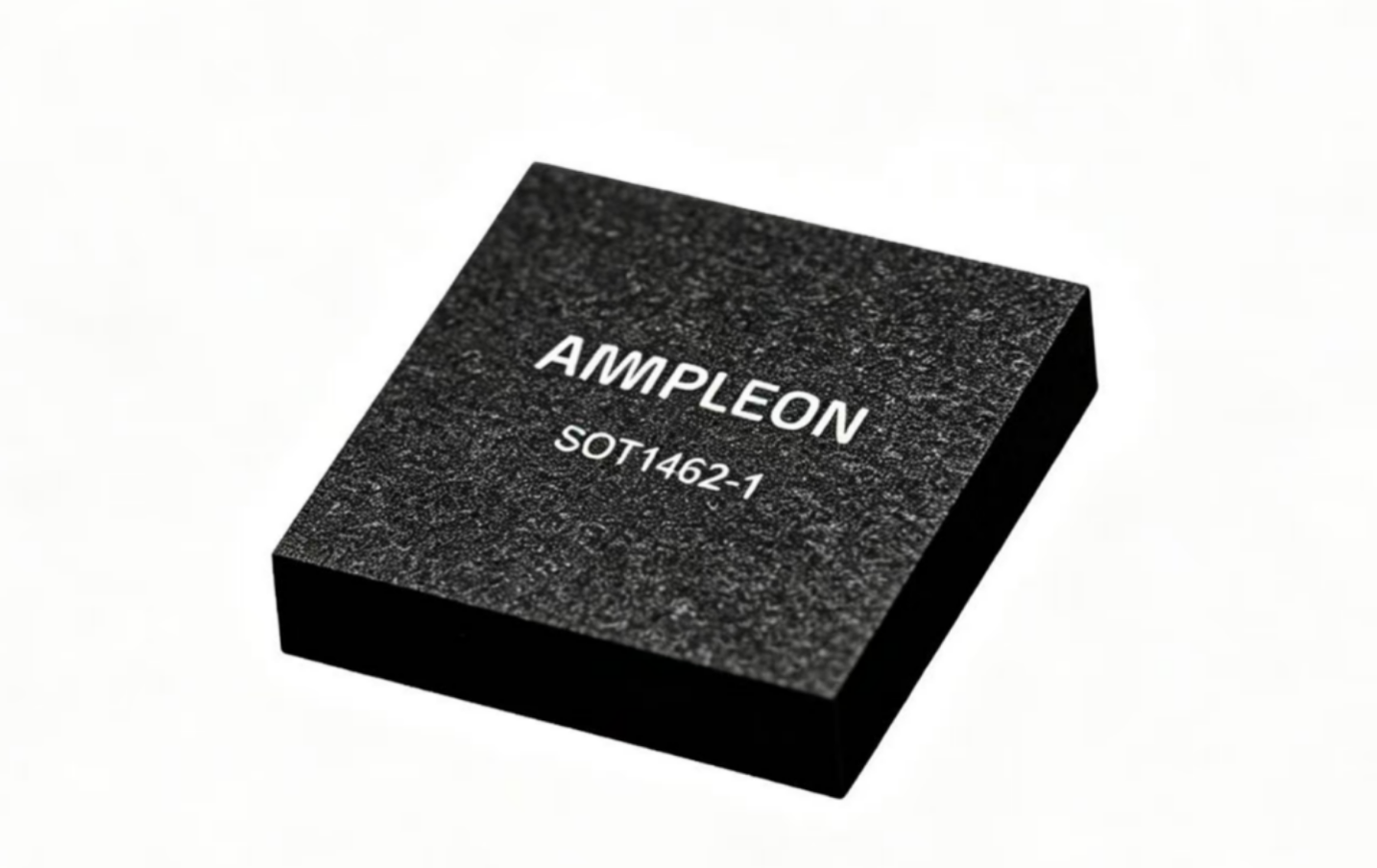

BLM9D2324-08AMZ AMPLEON RF amplifier

2-stage Doherty MMIC Model: BLM9D2324-08AMZ (Standard Model: BLM9D2324-08AM, Z denotes Tape & Reel Packaging)   Manufacturer: Ampleon   Product Type: 9th Generation 28V LDMOS 2-Stage Fully Integrated Doherty MMIC RF Power Amplifier (Optimized for 2.3–2.4 GHz Small Cell and Macro Base Station Driver Stage Applications, covering 5G NR n41 and other key bands)   Key Specifications Parameter Specification Frequency Range 2300 MHz to 2400 MHz (2.3–2.4 GHz), covering 5G NR n41 and other key bands Peak Output Power (P3dB) 8 W (Typical, 39.0 dBm), in Doherty Configuration Typical Power Gain 27.0 dB (Typical, 2-stage amplification) Typical Drain Efficiency 45%+ (Doherty Configuration, Optimized DPD Performance) Supply Voltage (VDS) 28 V (Standard), Maximum Rated Voltage 40 V Quiescent Drain Current (IDq) 120 mA (Typical) Package Type 20-pin LGA (7×7×0.98 mm), Surface Mount, with Exposed Pad (Enhanced Thermal Dissipation) Special Features Fully integrated Doherty arc…
