ROSA/TOSA Wideband RF Capacitor

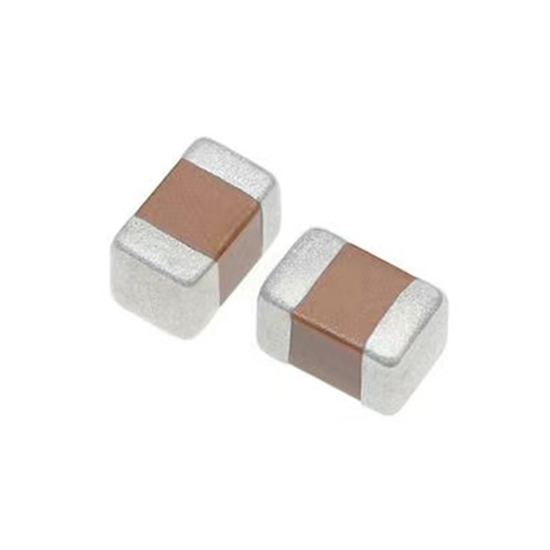

0402BB(.040"x.020")0402BB104KW500 Wideband RF CapacitorThis series of capacitors features an ultra-wide operating frequency range, with a typical range from 16 kHz (-3 dB) to 50 GHz. It delivers a typical insertion loss of less than 1.2 dB at 50 WVDC. The product is available with tin-plated or gold-plated terminations, and is supplied on 10Kpcs/reel tape-and-reel packaging, with cut tape options available for low-volume procurement. 0402BB dimensions Unit: inches (millimeters) Type / Outline Capacitor Dimensions Length (L) Width (W) Thickness (T) (S) .040 ± .004   (1.016 ± 0.102) .020 ± .004   (0.508 ± 0.102) .024 (0.61)   max .016 (0.406)   min Electrical performance Item Specification Capacitance 10 nF Insulation Resistance (IR) 10¹¹ Ω min, at 25°C with rated voltage applied. Rated Voltage 50 WVDC Dielectric Withstanding Voltage (DWV) Apply 250% of rated voltage for 5 seconds. Operating Temperature Range -55°C ~ +125°C Temperature Coefficient of Capacit…
